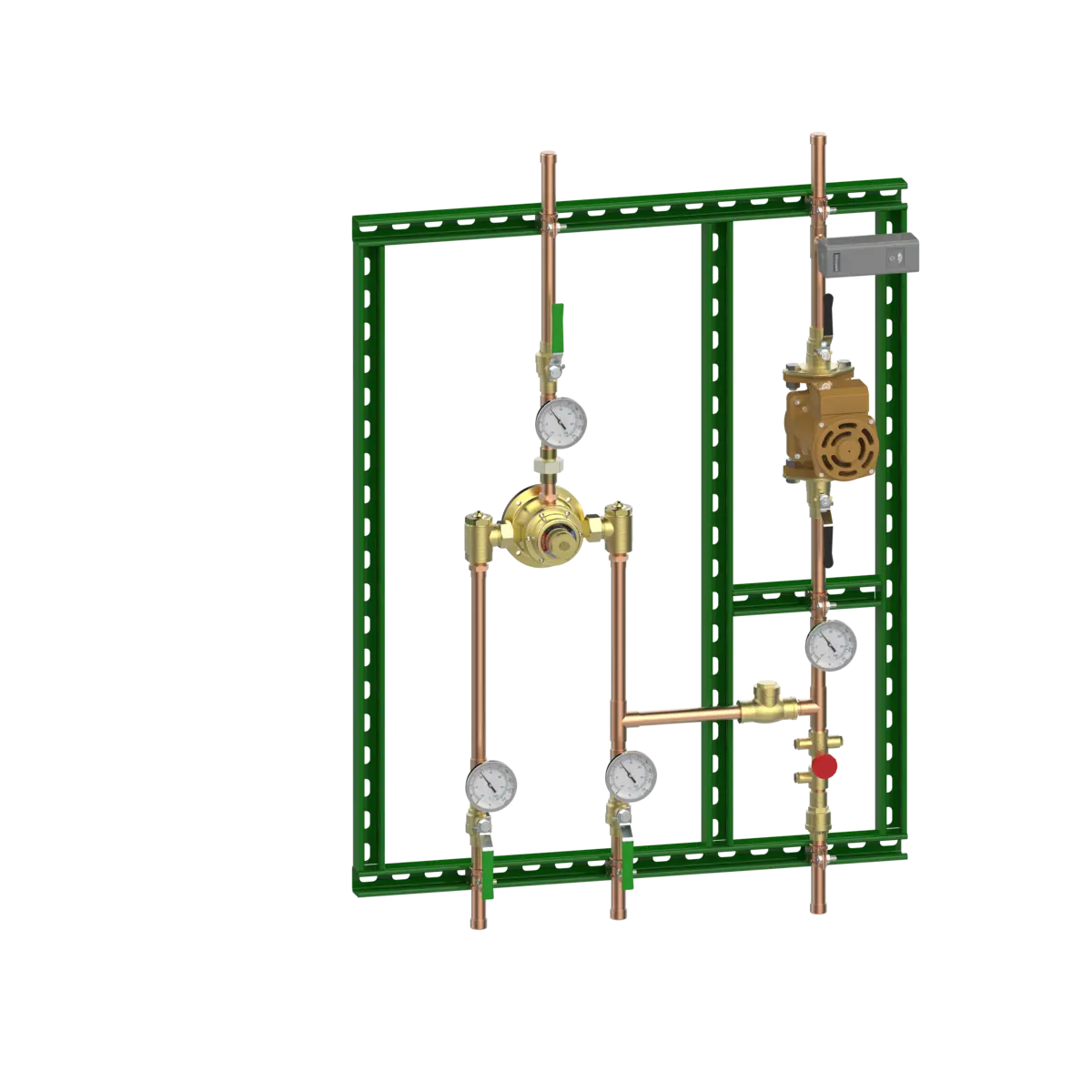

6125 Mixing System

6125 Mixing System

Lawler’s Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s Model 61® is an effective solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller.

Lawler’s Recirculation Systems is a turnkey unit which includes Lawler’s Model 61® as well as an engineer specified recirculation pump, circuit setting balancing valve, thermometers, ball valves and mounting strut.

This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

ENG# 86620

Check out the 6125 Mixing System today!

SPECIFICATIONS

Series

61

Model

6125

Configuration

Mixing System

Engineering Number

86620

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

1 GPM

Min Flow with Recirculation

1/4 GPM

Rated Flow at 10 PSI

10 GPM

Rated Flow at 45 PSI

25 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual61 Series – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
Spec Books86620 – 6125 Mixing System Submittal Data Sheet
