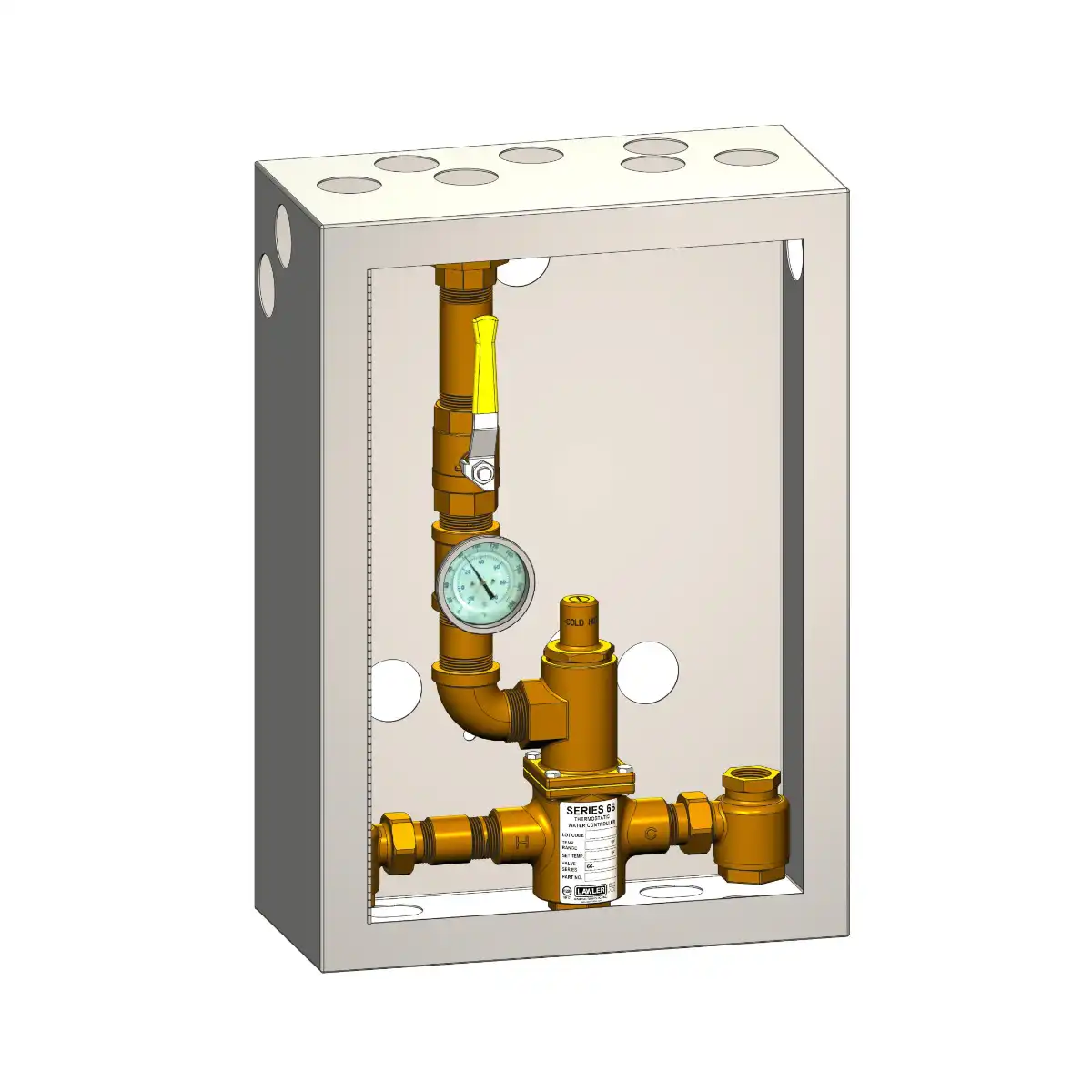

6625 Piped Thermometer Ball Valve Union Cabinet

6625 Piped Thermometer Ball Valve Union Cabinet

Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 83006

SPECIFICATIONS

Series

66

Model

6625

Configuration

Piped Thermometer Ball Valve Union

Engineering Number

83006

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

3-3/4 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

12 GPM

Rated Flow at 45 PSI

25 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

Cabinet Mounting

Recessed

Cabinet Finish

Baked White Enamel, Stainless Steel

DOWNLOADS

CategoryTitleLink
AIA Specifications83006 – 6625 Piped Thermometer Ball Valve Union Cabinet – TEXT – AIA Specification
