6725 Standard

6725 Standard

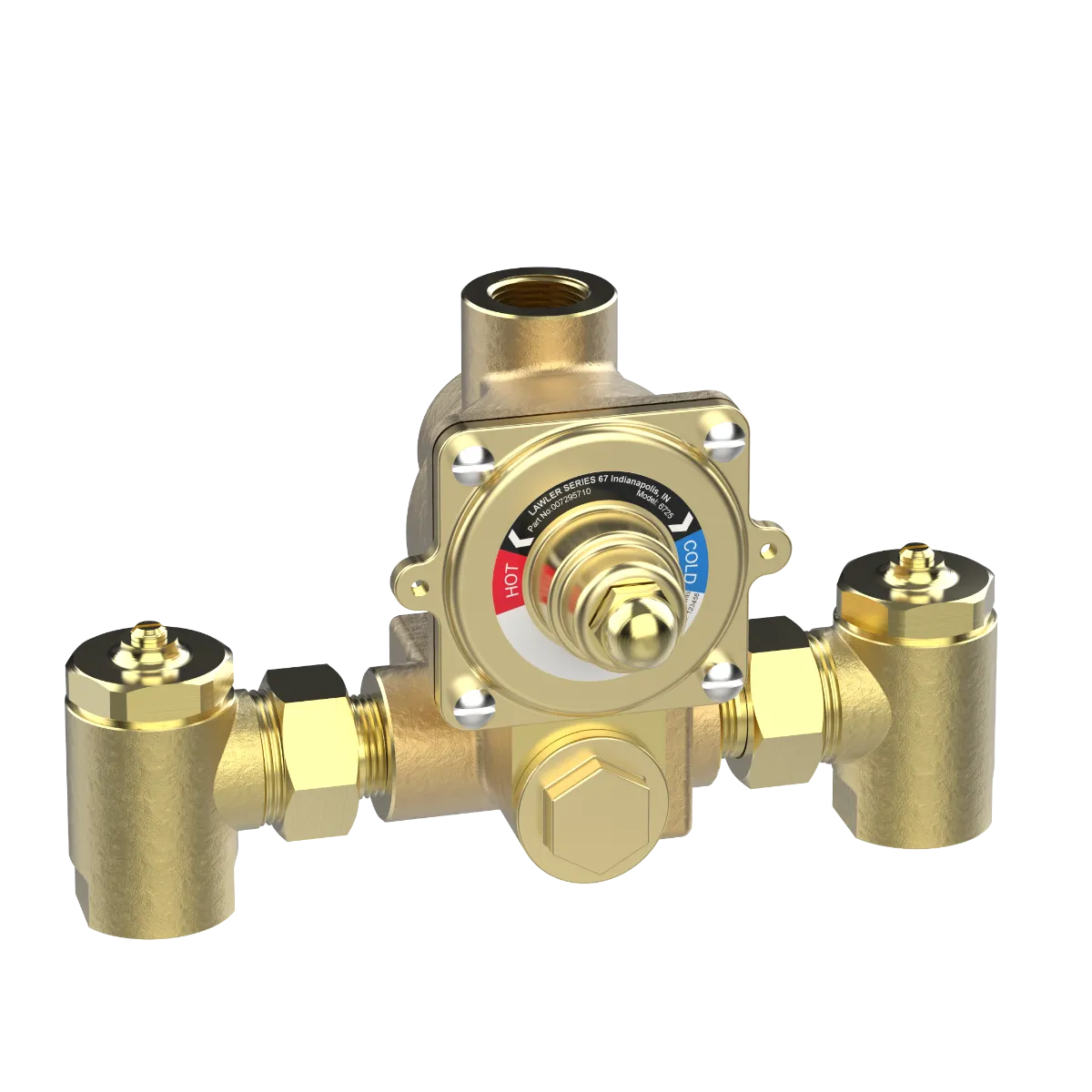

Lawler’s Model 67® is a single solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller featuring separate Thermostatic and Pressure Balance chambers. This rare combination of performance specs makes the Model 67® a “true” Type T/P valve, regulating temperatures within 1.5 GPM. The 67® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. With Three-Way Protection™, the small master controller Model 67® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 67®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 72957

Check out the 6725 Standard today!

SPECIFICATIONS

Series

67

Model

6725

Configuration

Standard

Engineering Number

72957

Application

Master Controller

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

1 GPM

Min Flow with Recirculation

1/4 GPM

Rated Flow at 10 PSI

10 GPM

Rated Flow at 45 PSI

25 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual67 Series – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books72957 – 6725 Standard – Submital Datasheet
blue pen icon
CAD Drawing72957 – 6725 Standard – Drawing – No Dimensions
blue notebook icon
AIA Specifications72957 – 6725 Standard – TEXT – AIA Specification
blue protractor icon
BIM Revit File72957 – 6725 Standard – BIM
