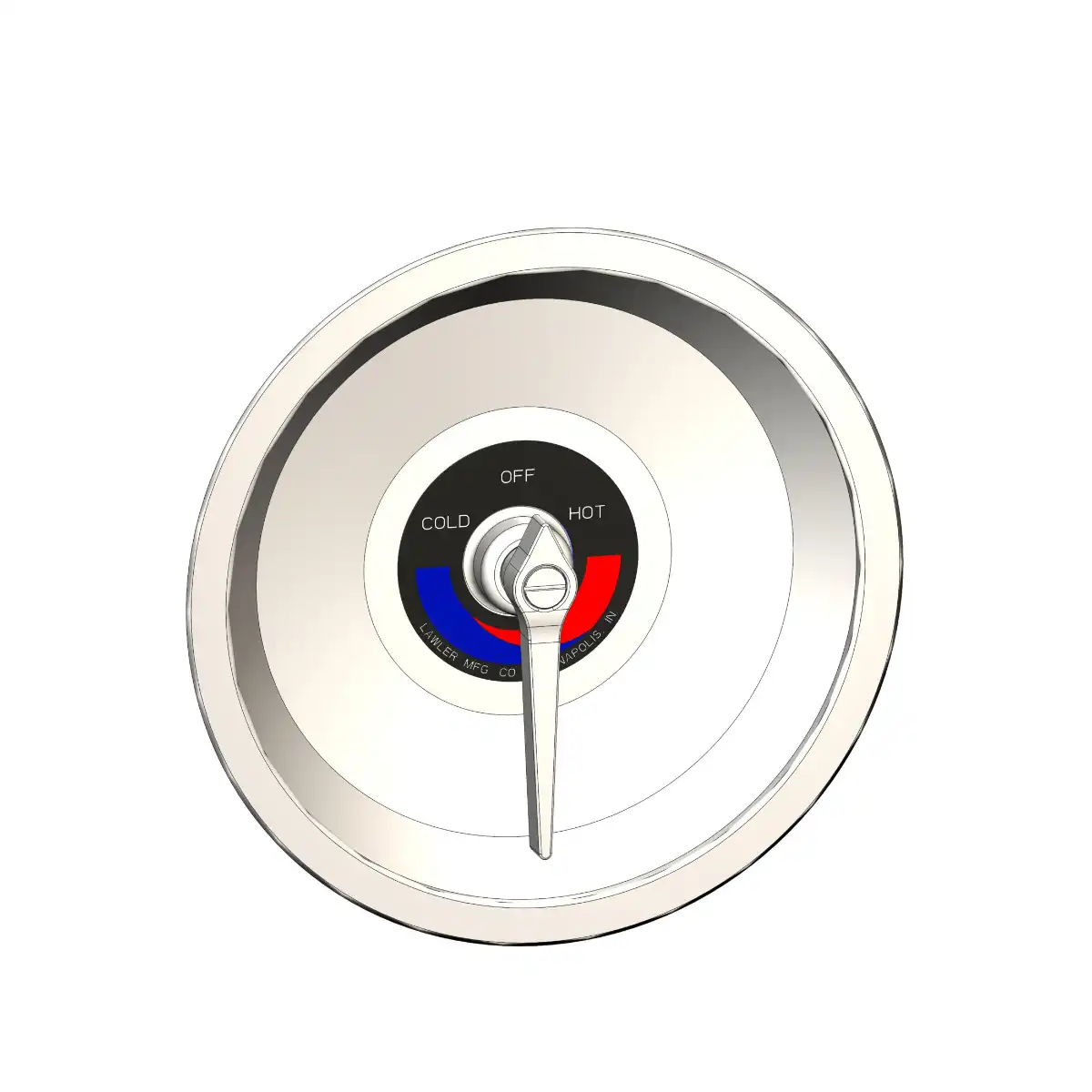

7900-50 Standard
7900-50 Standard
The Lawler Series 7000® Type T/P Shower Mixing Valve combines a thermostatically controlled mixing chamber and a pressure balancing chamber into a compact valve body to provide a full range of safety and protection under a variety of circumstances. The Series 7000® features Dual-Stage mixing technology that compensates for normal changes in water pressure and temperature, preventing fluctuations from affecting preset outlet temperatures. The Lawler Series 7000®, designed to be the safest concealed shower valve on the market, provides maximum safety and protection for critical applications. The valve’s independent chambers make it a true T/P valve.
ENG# 75147
SPECIFICATIONS
| Series | 7000 |
|---|---|
| Model | 7900-50 |
| Configuration | Standard |
| Engineering Number | 75147 |
| Application | Shower |
| Certification/s | ASME A112, ASSE 1016, CSA B125 |
| Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Outlet Connection Size | 1/2" |
| Min Flow | 1 GPM, 1/2 GPM, 4 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 1 GPM, 1-3/4 GPM, 4-1/4 GPM |
| Rated Flow at 45 PSI | 10 GPM, 2-1/2 GPM, 5 GPM |
| Temperature Range | Full Cold to 115°F |
| Finish | Polished Chrome, Rough Brass |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
| Spec Books | S7900 – Assembly Diagrams – Submittal datasheet | ||
 | CAD Drawing | 75147 – 7900-50 Standard – Drawing – No Dimensions | |
 | AIA Specifications | 75147 – 7900-50 Standard – TEXT – AIA Specification | |
 | Spec Books | 75147 – 7900-50 Standard – Submital Datasheet | |
 | BIM Revit File | 75147 – 7900-50 Standard – BIM |
