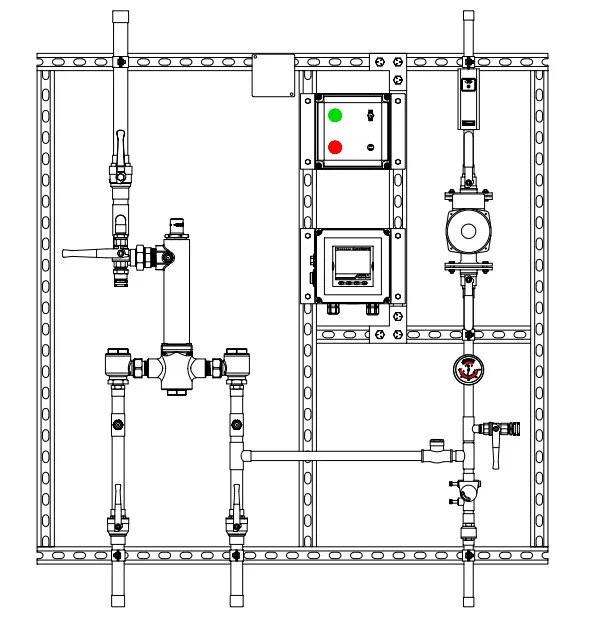

801 Mixing System with Remote Monitoring System Deluxe

801 Mixing System with Remote Monitoring System Deluxe

Lawler’s 801 recirculation system with the deluxe remote monitoring system has all of the benefits of a Lawler recirculation system with the added ability to give your end user robust remote monitoring and local control of the hot water and recirculation systems. The deluxe system offers the ability to monitor up to four points (inlets, outlet and return temperatures) on the recirculation system. The deluxe system also offers remote alarm capabilities and data logging both remotely and locally. Additionally, in the event of a power outage the (insert model #) will still provide tempered water throughout the system providing additional protection for the end user along with the “Three-Way Protection” the valve provides.

ENG# 86600

Check out the 801 Mixing System with Remote Monitoring System Deluxe today!

SPECIFICATIONS

Series

800

Model

801

Configuration

Mixing System with Remote Monitoring System Deluxe

Engineering Number

86600

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

3/4"

Outlet Connection Size

1"

Min Flow

1 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

25 GPM

Rated Flow at 45 PSI

50 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual801 – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
Spec Books86600 – 801 Mixing System Simply Electronically Adjusted Basic – Submittal Datasheet
