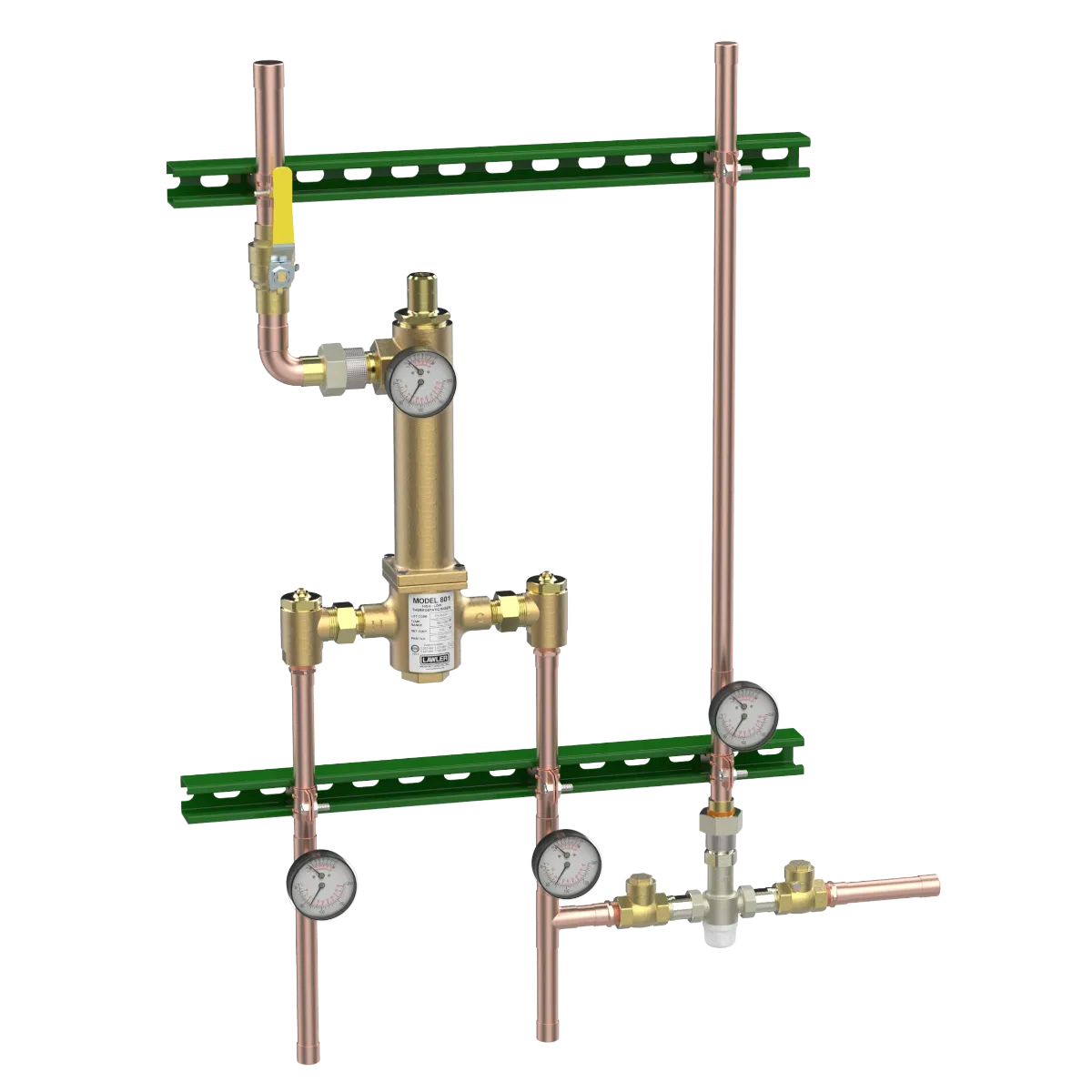

801 Recirculation Piping with ARV

801 Recirculation Piping with ARV

Lawler’s 801 recirculation piping system with ARV (automatic return valve) gives the end user the benefits of a pre-piped recirculation system for domestic hot water systems and the ability to balance the recirculation system thermostatically via the ARV (automatic return valve). This takes out the guesswork in balancing the recirculation system that can take time to achieve.

ENG# 86670

Check out the 801 Recirculation Piping with ARV today!

SPECIFICATIONS

Series

800

Model

801

Configuration

Recirculation Piping with ARV

Engineering Number

86670

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

3/4"

Outlet Connection Size

1"

Min Flow

1 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

25 GPM

Rated Flow at 45 PSI

50 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual801 – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
Spec Books86670 – 801 Recirculation Piping with ARV – Submittal Datasheet
