802 Mini Mixing System Standard

802 Mini Mixing System Standard

Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution with a small footprint – just a few inches larger than a standard valve in a cabinet. Lawler’s patented 800 Series High-Low Master Controllers increase the performance and cost effectiveness of this mini pre-piped system by controlling both high and low flows while providing Three-Way Protection™.

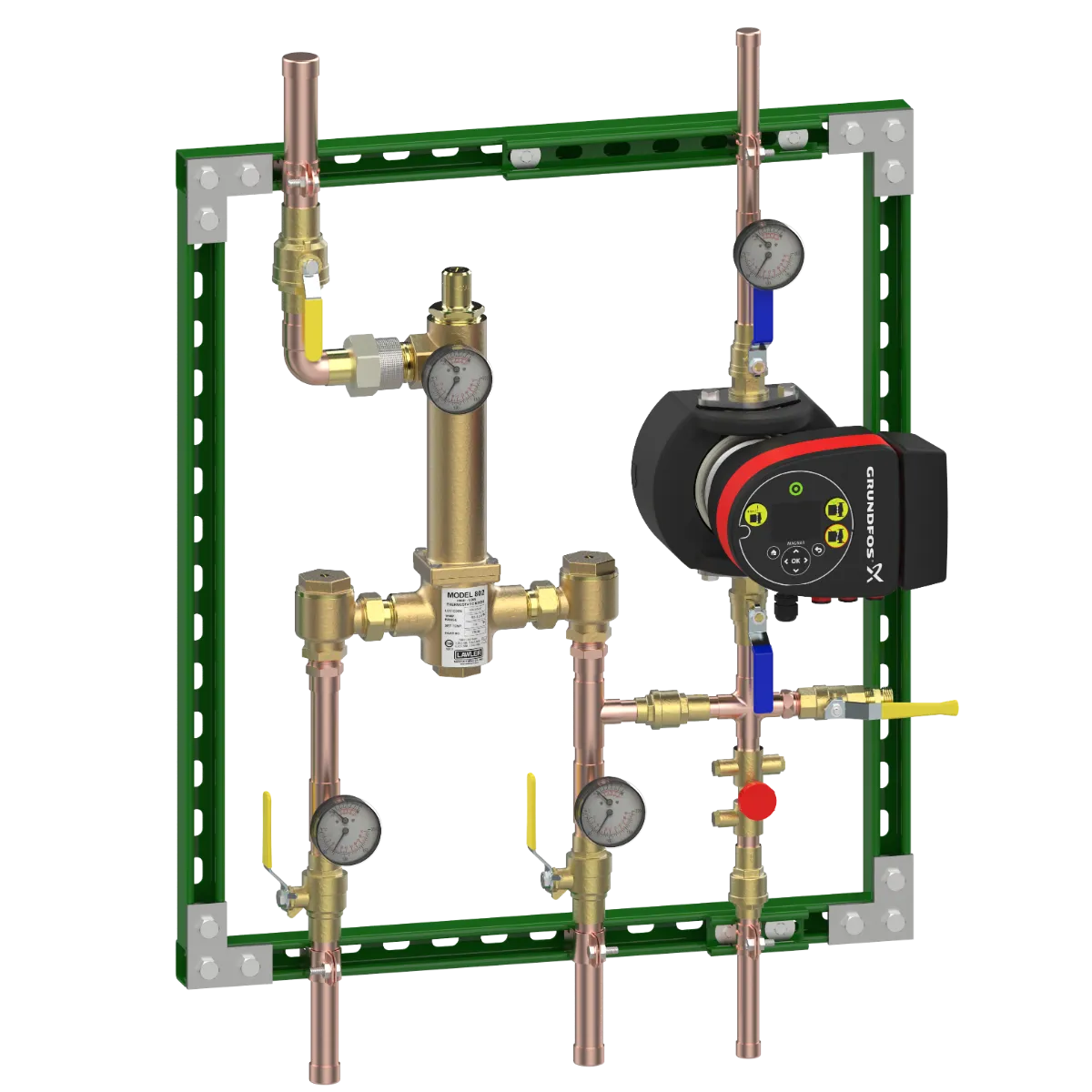

Lawler’s Mini Recirculation System is a turnkey unit that includes Lawler’s patented single valve high-low technology as well as integrated smart pump technology that helps improve balancing of the recirculation loop. The system also includes thermometers, ball valves, mounting strut and a test connection.

This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems are offered in both low capacity and high capacity configurations.

ENG# 90020

SPECIFICATIONS

Series

800

Model

802

Configuration

Mini Mixing System Standard

Engineering Number

90020

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

1"

Outlet Connection Size

1-1/4"

Min Flow

2 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

39 GPM

Rated Flow at 45 PSI

80 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing90020 – 802 Mini Mixing System Standard – Drawing – No Dimensions
AIA Specifications90020 – 802 Mini Mixing System Standard – TEXT – AIA Specification
Spec Books90020 – 802 Mini Mixing System Standard – Submital Datasheet
BIM Revit File90020 – 802 Mini Mixing System Standard – BIM
