802 Mini Parallel Mixing System Standard

802 Mini Parallel Mixing System Standard

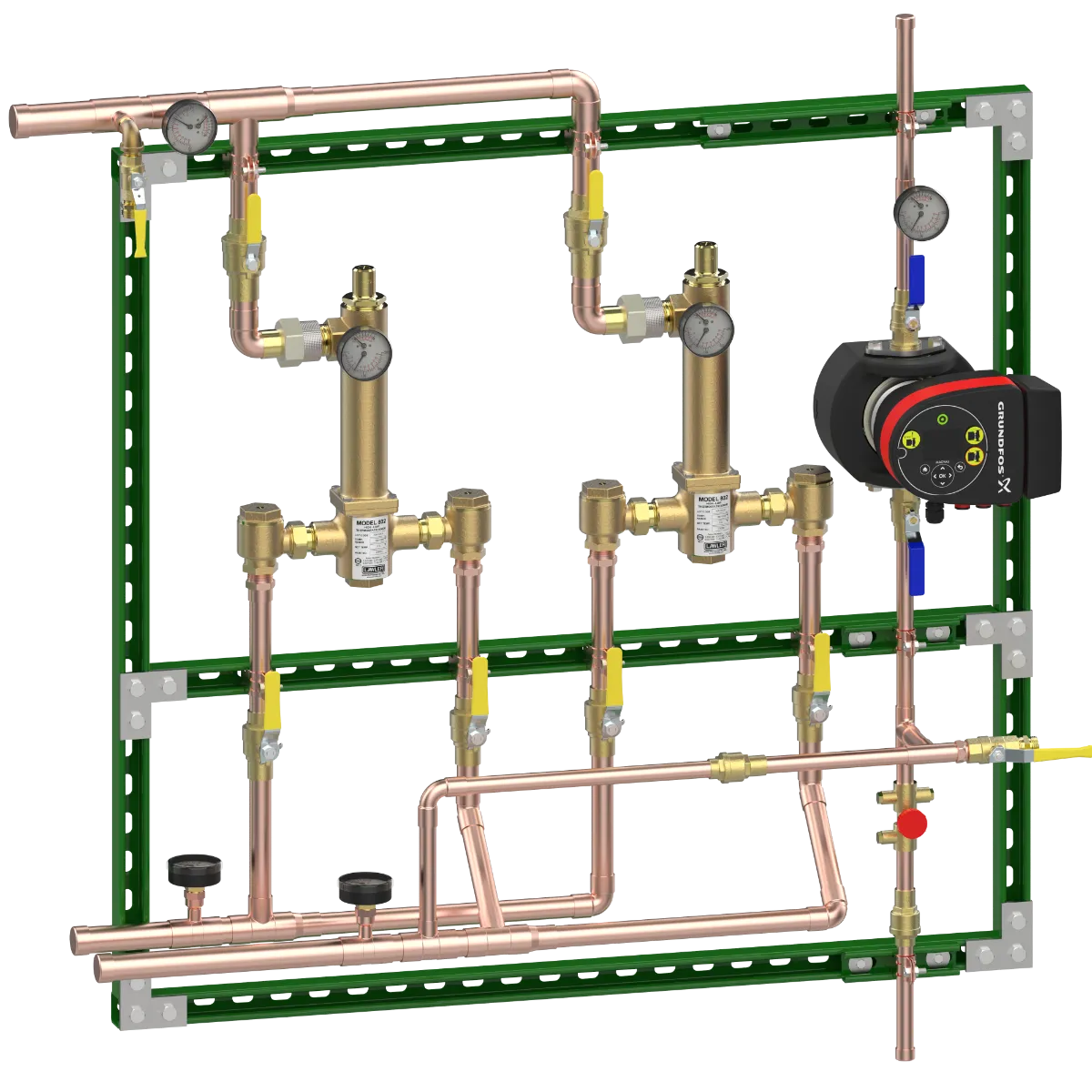

Lawler’s 802 mini parallel manifold system for recirculation provides either the high-capacity or redundancy the end user is requiring on a smaller frame for those applications that have space constraints, but requires either high-capacity or redundancy. Lawler’s manifold per-piped recirculation systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s 800 Series high-low master controllers increase the performance and cost effectiveness of this pre-piped system by controlling both high and low flows while providing Three-Way Protection. System includes (insert model 3) high-low thermostatic mixing valve, engineer specified recirculation pump, circuit setting balancing valve, thermometers, check valves, ball valves and mounting strut. This complete solution is a part of Lawler’s Power of One pre-piped, pre-packaged, pre-tested systems intended to give you one point of design and one point of accountability.

ENG# 90220

SPECIFICATIONS

Series

800

Model

802

Configuration

Mini Parallel Mixing System Standard

Engineering Number

90220

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

1"

Outlet Connection Size

1-1/4"

Min Flow

2 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

39 GPM

Rated Flow at 45 PSI

80 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass
