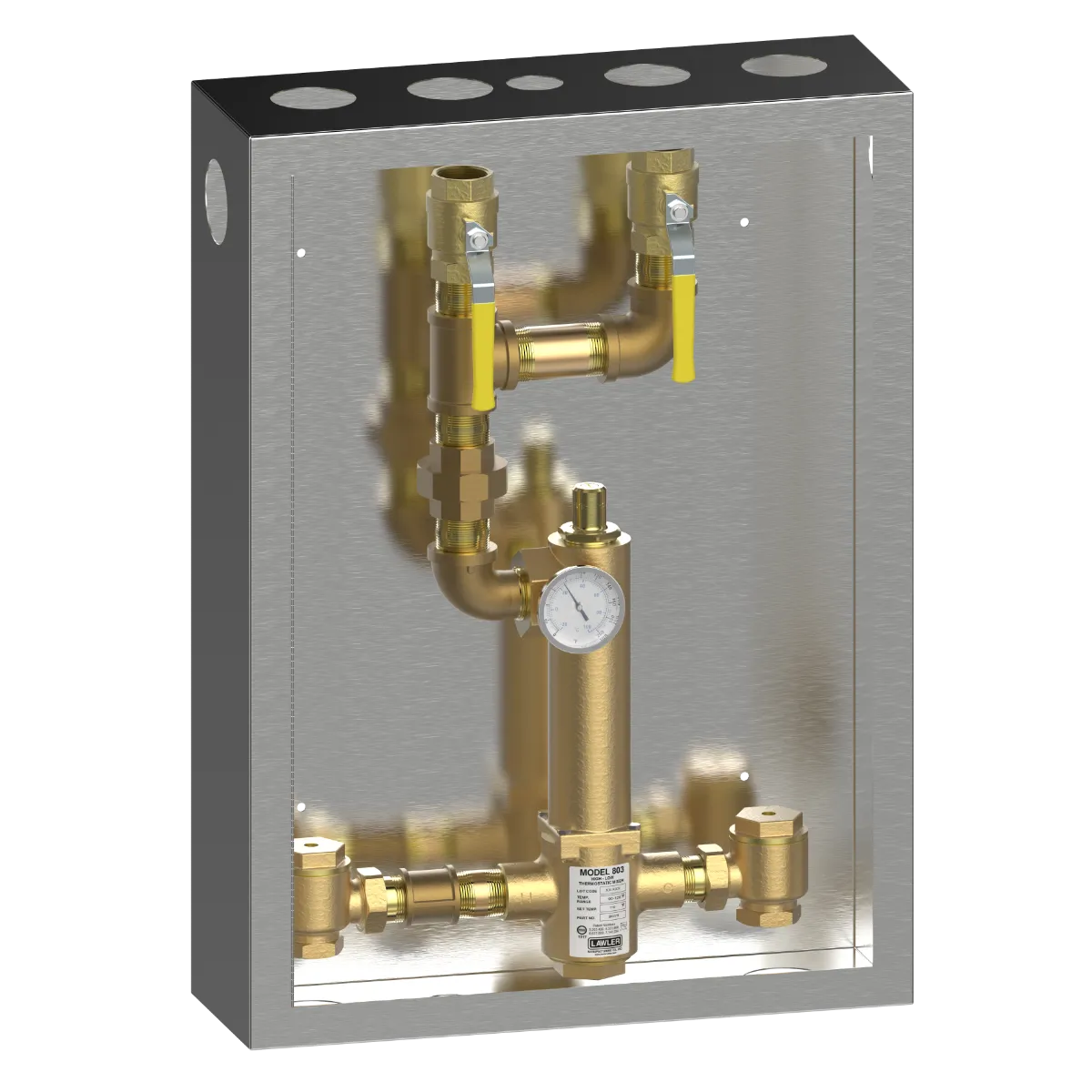

803 Piped Thermometer Ball Valve Union Dual Out Cabinet

803 Piped Thermometer Ball Valve Union Dual Out Cabinet

The 803 High-Low Thermostatic Mixing Valve provides tempered water over a wide range of flows in a single valve unit. Ideally suited for institutional and commercial applications such as group showers, schools, hotels, hospitals, prisons, and nursing homes. The 803 will provide from 3 to 125 gpm @ 45 psi (1/2 gpm when properly installed in a recirculated system). This valve provides three-way protection from scalding upon: 1) failure of the thermostat, 2) shut-off of hot water, or 3) shut-off of cold water. This one piece, single body valve contains a liquid filled thermostat, a stainless steel piston and liner, and is ASSE 1017 and CSA B125.3 approved. It is available with stop & checks, thermometer, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. This single valve is easier to install, easier to maintain and more cost efficient than multi-valve systems on the market.

ENG# 86479

Check out the 803 Piped Thermometer Ball Valve Union Dual Out Cabinet today!

SPECIFICATIONS

Series

800

Model

803

Configuration

Piped Thermometer Ball Valve Union Dual Out

Engineering Number

86479

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

NPT

Inlet Connection Size

1-1/2"

Outlet Connection Size

1-1/2"

Min Flow

3 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

60 GPM

Rated Flow at 45 PSI

125 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

Cabinet Mounting

Exposed, Recessed, Semi-Recessed

Cabinet Finish

Baked White Enamel, Stainless Steel

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual803 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books86479 – 803 Piped Thermometer Ball Valve Union Dual Out Cabinet – Submital Datasheet
