803 Piped Thermometer Ball Valve
803 Piped Thermometer Ball Valve

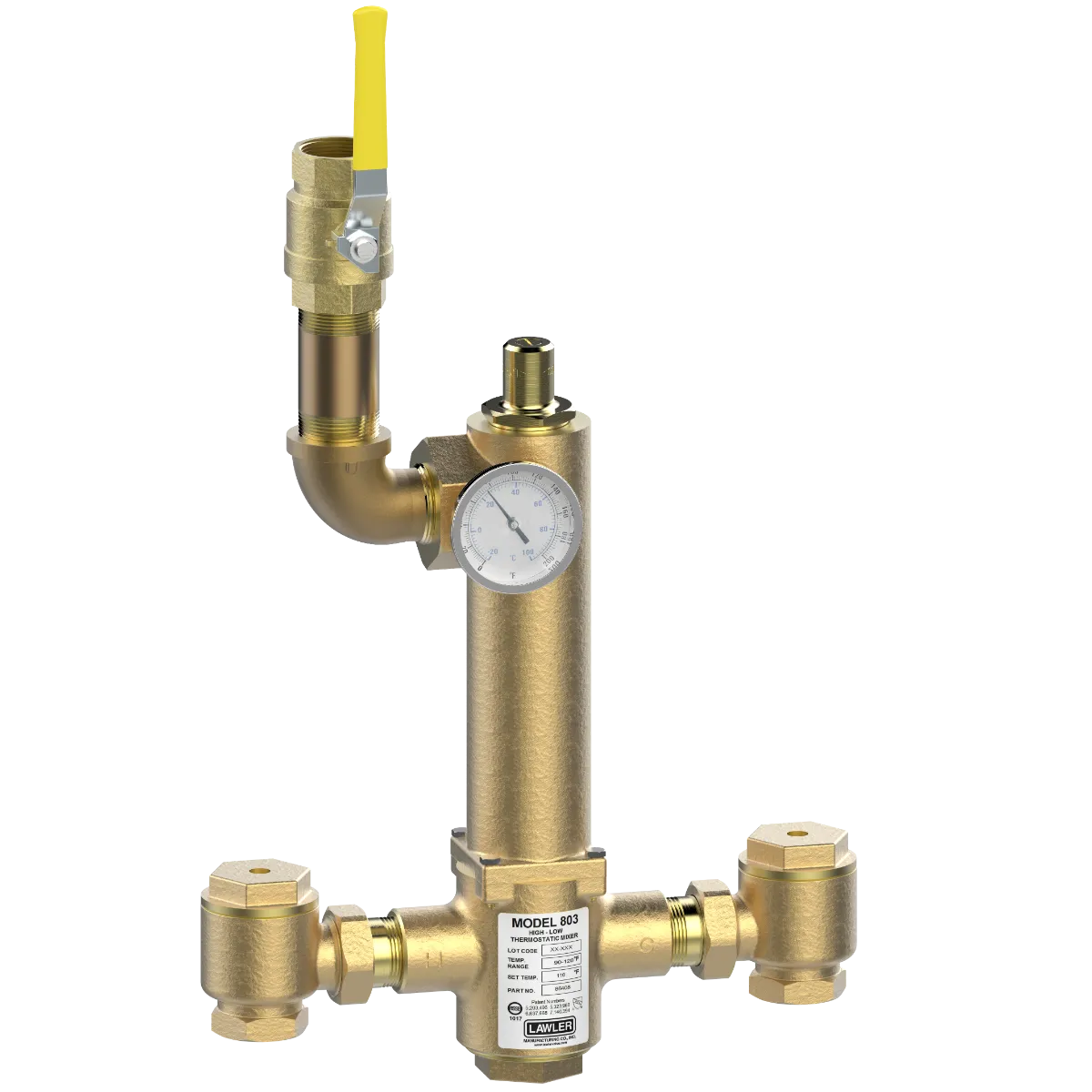

The 803 High-Low Thermostatic Mixing Valve provides tempered water over a wide range of flows in a single valve unit. Ideally suited for institutional and commercial applications such as group showers, schools, hotels, hospitals, prisons, and nursing homes. The 803 will provide from 3 to 125 gpm @ 45 psi (1/2 gpm when properly installed in a recirculated system). This valve provides three-way protection from scalding upon: 1) failure of the thermostat, 2) shut-off of hot water, or 3) shut-off of cold water. This one piece, single body valve contains a liquid filled thermostat, a stainless steel piston and liner, and is ASSE 1017 and CSA B125.3 approved. It is available with stop & checks, thermometer, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. This single valve is easier to install, easier to maintain and more cost efficient than multi-valve systems on the market.
ENG# 86408
SPECIFICATIONS
| Series | 800 |
|---|---|
| Model | 803 |
| Configuration | Piped Thermometer Ball Valve |
| Engineering Number | 86408 |
| Application | Master Controller |
| Certification/s | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 1-1/2" |
| Outlet Connection Size | 1-1/2" |
| Min Flow | 3 GPM |
| Min Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 60 GPM |
| Rated Flow at 45 PSI | 125 GPM |
| Temperature Range | 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | CAD Drawing | 86408 – 803 Piped Thermometer Ball Valve – Drawing – No Dimensions | |
 | AIA Specifications | 86408 – 803 Piped Thermometer Ball Valve – TEXT – AIA Specification | |
 | Spec Books | 86408 – 803 Piped Thermometer Ball Valve – Submital Datasheet | |
 | BIM Revit File | 86408 – 803 Piped Thermometer Ball Valve – BIM |
