804 Parallel Mixing System
804 Parallel Mixing System

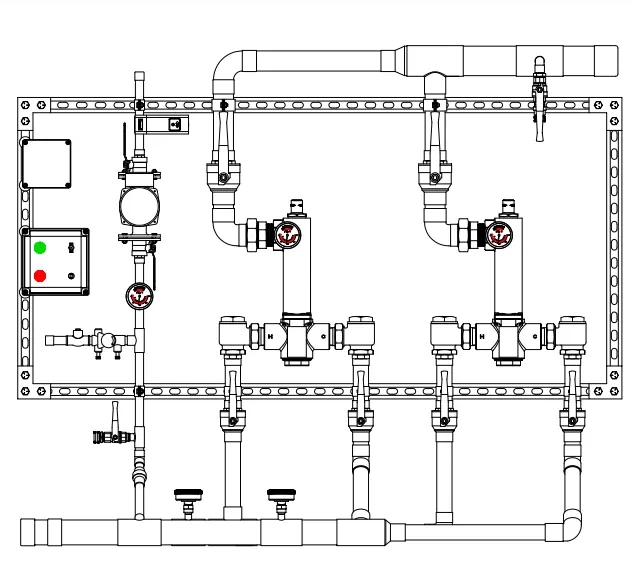

The Lawler 804 Parallel Manifold Recirculation System offers your customers either a redundant or high capacity designed system that is delivered in a pre-piped configuration for proper recirculation.
This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you and your customers one point of design and one point of accountability.
ENG# 86632
Find This Product
Enter your US zip code OR Canadian province abbreviation below to find your local Lawler Representative
SPECIFICATIONS
| Series | 800 |
|---|---|
| Model | 804 |
| Configuration | Parallel Mixing System |
| Engineering Number | 86632 |
| Application | Master Controller, Mixing System |
| Certification/s | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | Sweat |
| Inlet Connection Size | 2-1/2" |
| Outlet Connection Size | 3" |
| Min Flow | 8 GPM |
| Min Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 144 GPM |
| Rated Flow at 45 PSI | 300 GPM |
| Temperature Range | 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
