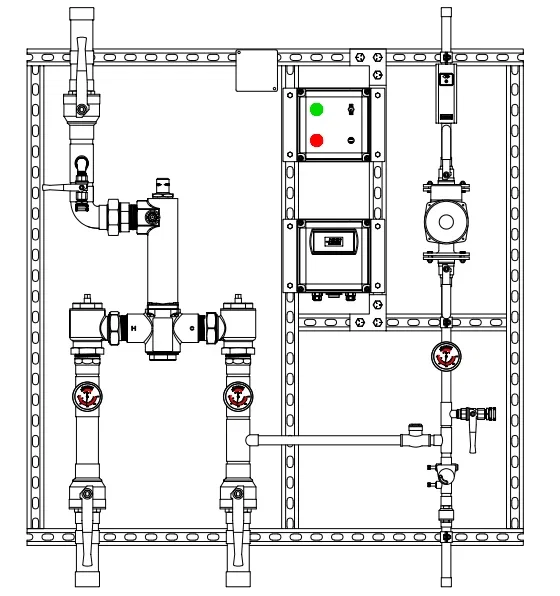

805 Mixing System with Remote Monitoring System Basic
805 Mixing System with Remote Monitoring System Basic
Lawler’s 805 recirculation system with the basic remote monitoring system has all of the benefits of a Lawler recirculation system with the added ability to give your end user robust remote monitoring and local control of the hot water and recirculation systems. The basic system offers the ability to monitor the outlet temperature on the recirculation system. The basic system also offers remote alarm capabilities. Additionally, in the event of a power outage the (insert model #) will still provide tempered water throughout the system providing additional protection for the end user along with the “Three-Way Protection” the valve provides.
ENG# 86602
SPECIFICATIONS
| Series | 800 |
|---|---|
| Model | 805 |
| Configuration | Mixing System with Remote Monitoring System Basic |
| Engineering Number | 86602 |
| Application | Master Controller, Mixing System |
| Certification/s | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | Sweat |
| Inlet Connection Size | 2" |
| Outlet Connection Size | 2" |
| Min Flow | 5 GPM |
| Min Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 96 GPM |
| Rated Flow at 45 PSI | 200 GPM |
| Temperature Range | 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
