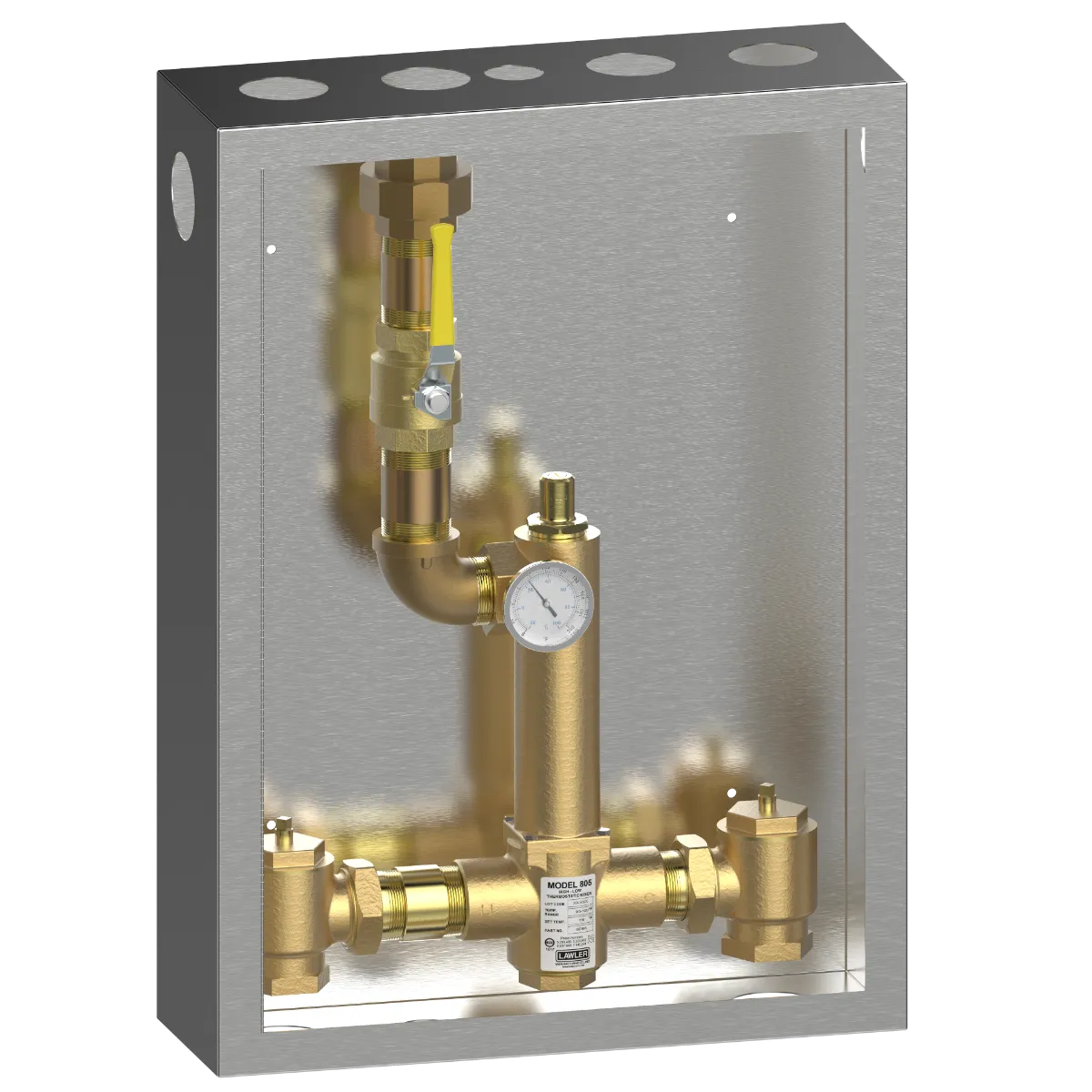

805 Piped Thermometer Ball Valve Union Cabinet

805 Piped Thermometer Ball Valve Union Cabinet

The 805 High-Low Thermostatic Mixing Valve provides tempered water over a wide range of flows in a single valve unit. Ideally suited for institutional and commercial applications such as group showers, schools, hotels, hospitals, prisons, and nursing homes. The 805 will provide from 5 to 200 gpm @ 45 psi (1/2 gpm when properly installed in a recirculated system). This valve provides three-way protection from scalding upon: 1) failure of the thermostat, 2) shut-off of hot water, or 3) shut-off of cold water. This one piece, single body valve contains a liquid filled thermostat, a stainless steel piston and liner, and is ASSE 1017 and CSA B125.3 approved. It is available with stop & checks, thermometer, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. This single valve is easier to install, easier to maintain and more cost efficient than multi-valve systems on the market.

ENG# 86106

Check out the 805 Piped Thermometer Ball Valve Union Cabinet today!

SPECIFICATIONS

Series

800

Model

805

Configuration

Piped Thermometer Ball Valve Union

Engineering Number

86106

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

NPT

Inlet Connection Size

2"

Outlet Connection Size

2"

Min Flow

5 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

96 GPM

Rated Flow at 45 PSI

200 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

Cabinet Mounting

Exposed, Recessed, Semi-Recessed

Cabinet Finish

Baked White Enamel, Stainless Steel

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual805 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing86106 – 805 Piped Thermometer Ball Valve Union Cabinet – Drawing – No Dimensions
blue notebook icon
AIA Specifications86106 – 805 Piped Thermometer Ball Valve Union Cabinet – TEXT – AIA Specification
blue shapes
Spec Books86106 – 805 Piped Thermometer Ball Valve Union Cabinet – Submital Datasheet
blue protractor icon
BIM Revit File86106 – 805 Piped Thermometer Ball Valve Union Cabinet – BIM
