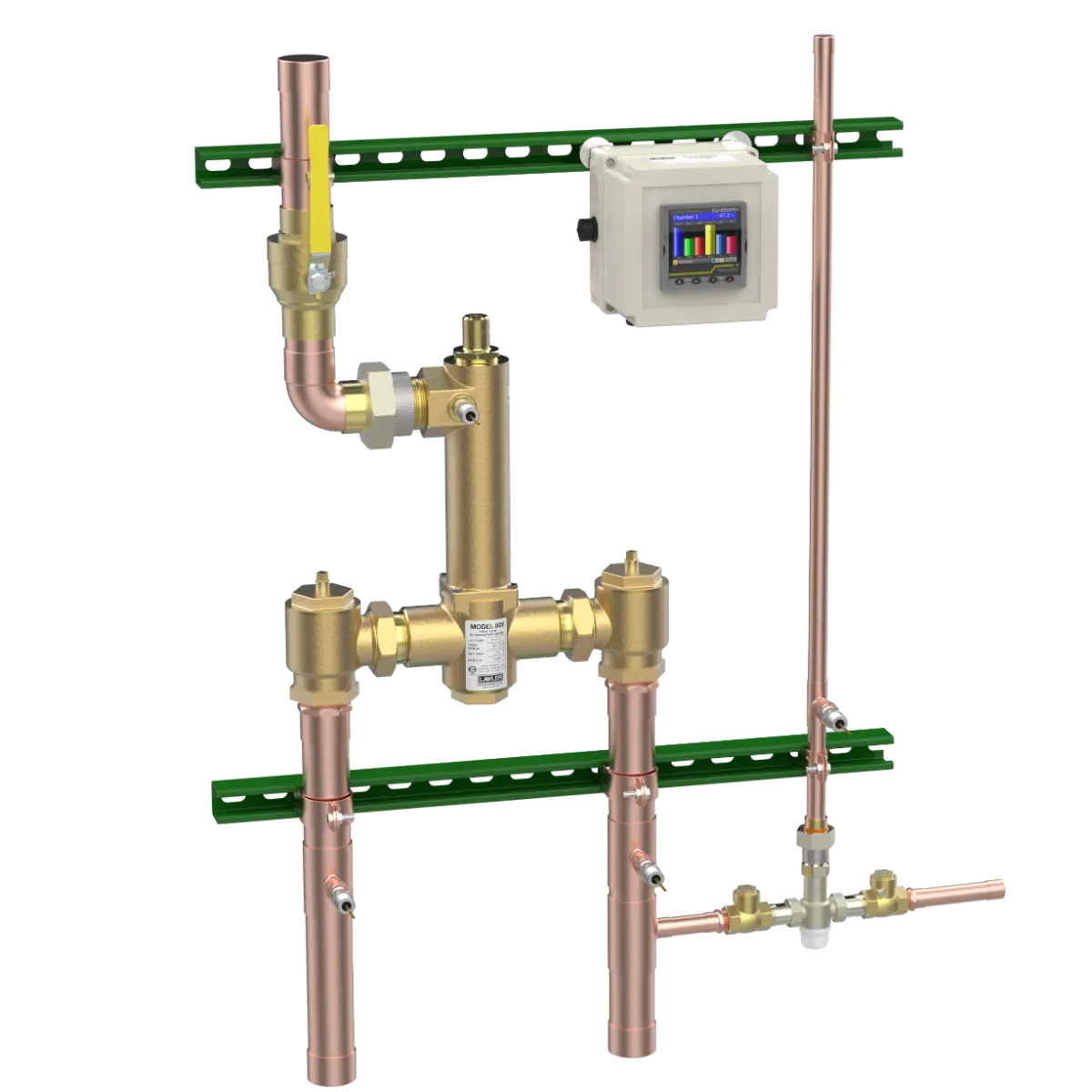

805 Recirculation Piping with ARV and Remote Monitoring System Deluxe

805 Recirculation Piping with ARV and Remote Monitoring System Deluxe

Lawler’s 805 recirculation piping system with ARV (automatic return valve) gives the end user the benefits of a pre-piped recirculation system for domestic hot water systems and the ability to balance the recirculation system thermostatically via the ARV (automatic return valve). This takes out the guesswork in balancing the recirculation system that can take time to achieve. Additionally, the system provides a robust remote monitoring and local control of the hot water and recirculation systems. The deluxe system offers the ability to monitor up to four points (inlets, outlet and return temperatures) on the recirculation system. The deluxe system also offers remote alarm capabilities and data logging both remotely and locally. Additionally, in the event of a power outage the (insert model #) will still provide tempered water throughout the system providing additional protection for the end user along with the “Three-Way Protection” the valve provides.

ENG# 86673

Check out the 805 Recirculation Piping with ARV and Remote Monitoring System Deluxe today!

SPECIFICATIONS

Series

800

Model

805

Configuration

Recirculation Piping with ARV and Remote Monitoring System Deluxe

Engineering Number

86673

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

2"

Outlet Connection Size

2"

Min Flow

5 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

96 GPM

Rated Flow at 45 PSI

200 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books86673 – 805 Recirculation Piping with ARV – Submital Datasheet
blue wrench icon
Install and Maintenance Manual805 – Installation and Maintenance Manual
