Neptune EMX Mixing Station
Neptune EMX Mixing Station
Lawler’s Neptune EMX electronic mixing valve is a rugged lead-free stainless steel valve that provides accurate control of the domestic hot water during all flow conditions. The valve comes pre-set and tested for easy installation and setup. The EMX is ASSE 1017 and NSF 372 listed and can be integrated into the BMS system for remote monitoring of the outlet temperature.

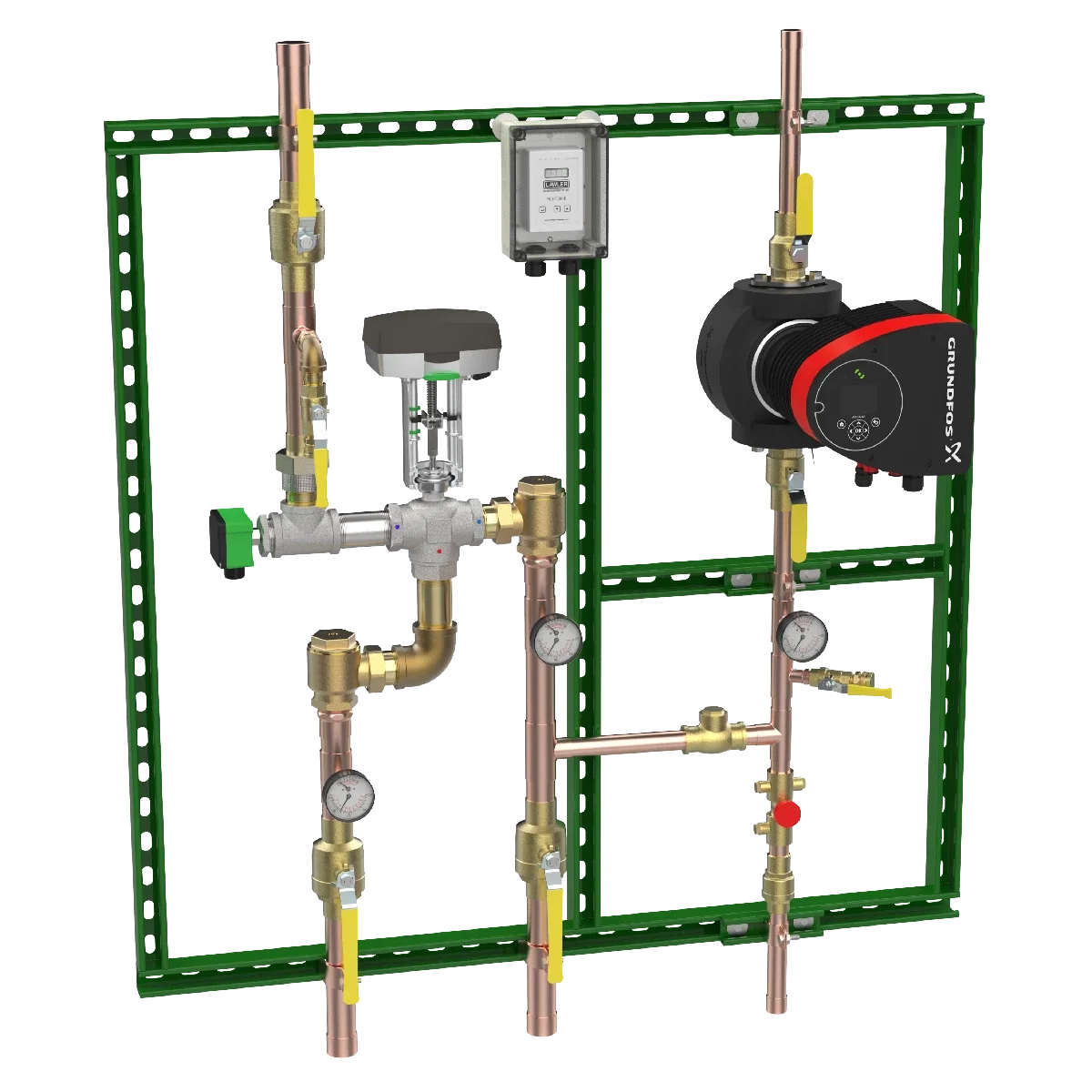

Lawler’s Neptune EMX MS electronic mixing valve pre-piped recirculation system is the ideal solution for common installation mistakes. The EMX MS is an easy “plug-and-play” installation and insures that the recirculation system is installed correctly for efficient operation of the domestic hot water system. System includes a recirculation pump that is specified by the design engineer.
Neptune EMX Brochure is available HERE
| EMX 075 MS | 943608 |
| EMX 100 MS | 943610 |
| EMX 125 MS | 943620 |
| EMX 150 MS | 943630 |
| EMX 200 MS | 943640 |
SPECIFICATIONS
| Series | EMX |
|---|
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
| Spec Books | 943640 – Neptune EMX 200 Mixing Station – Submittal Datasheet | ||
| Spec Books | 943630 – Neptune EMX 150 Mixing Station – Submittal Datasheet | ||
| Spec Books | 943620 – Neptune EMX 125 Mixing Station – Submittal Datasheet | ||
| Spec Books | 943610 – Neptune EMX 100 Mixing Station – Submittal Datasheet | ||
| Spec Books | 943608 – Neptune EMX 075 Mixing Station – Submittal Datasheet |
