3000-50 Standard

3000-50 Standard

Category

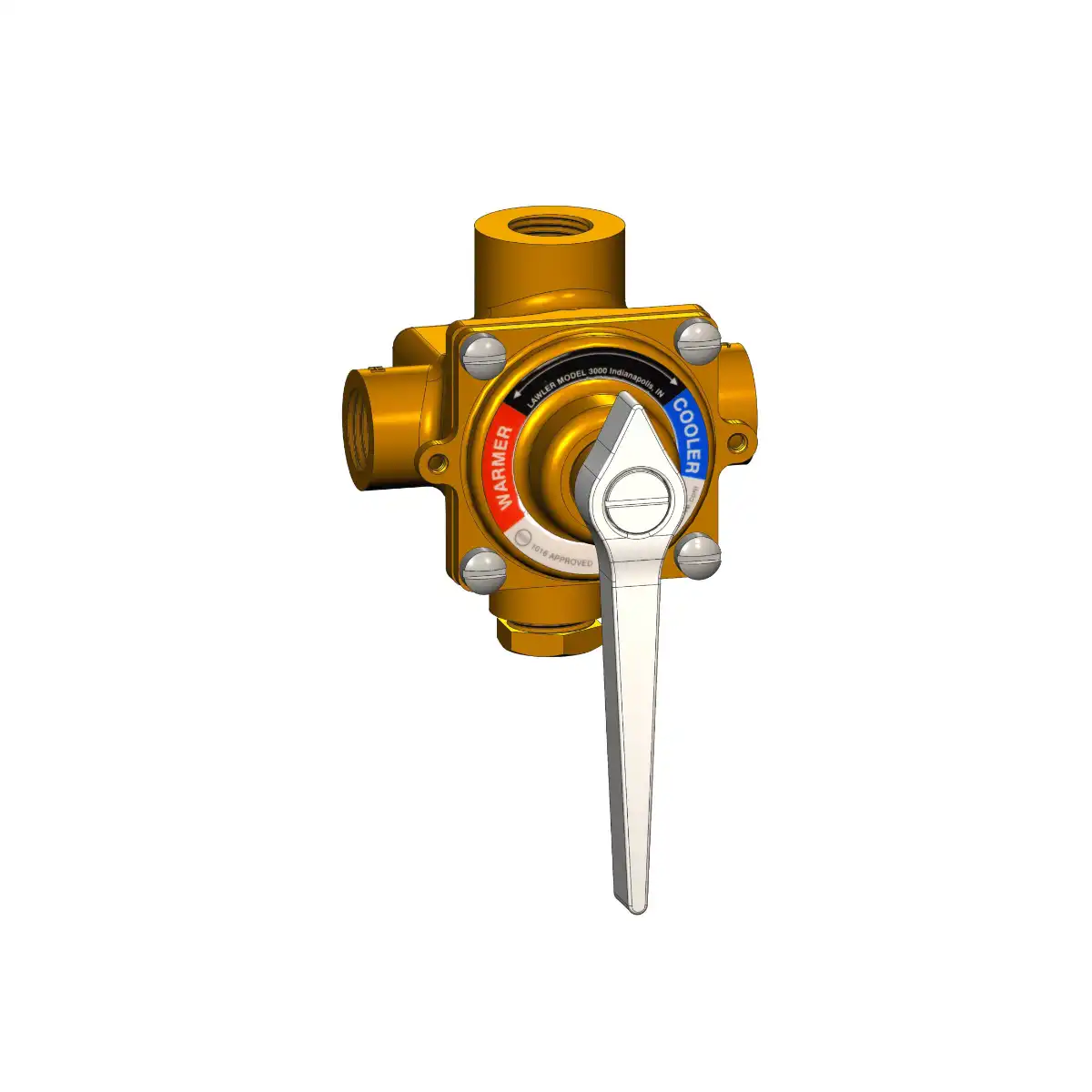

The Lawler Series 3000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to higher temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature. The Series 3000® provides anti-scalding and anti-chilling protection through its thermostatically operated valve. The Lawler Series 3000® offers maxium choice, while also providing maximum comfort, for a variety of applications.

ENG# 72047

Check out the 3000-50 Standard today!

SPECIFICATIONS

Series

3000

Model

3000-50

Configuration

Standard

Engineering Number

72047

Application

Shower

Certification/s

ASME A112, ASSE 1016, CSA B125

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1 GPM, 1/2 GPM, 4 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

1 GPM, 1-3/4 GPM, 4-1/4 GPM

Rated Flow at 45 PSI

10 GPM, 2-1/2 GPM, 5 GPM

Temperature Range

Full Cold to 115°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance ManualSeries 3000 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing72047 – 3000-50 Standard – Drawing – No Dimensions
blue shapes
Spec Books72047 – 3000-50 Standard – Submital Datasheet
blue protractor icon
BIM Revit File72047 – 3000-50 Standard – BIM
