410-75 Standard

410-75 Standard

Category

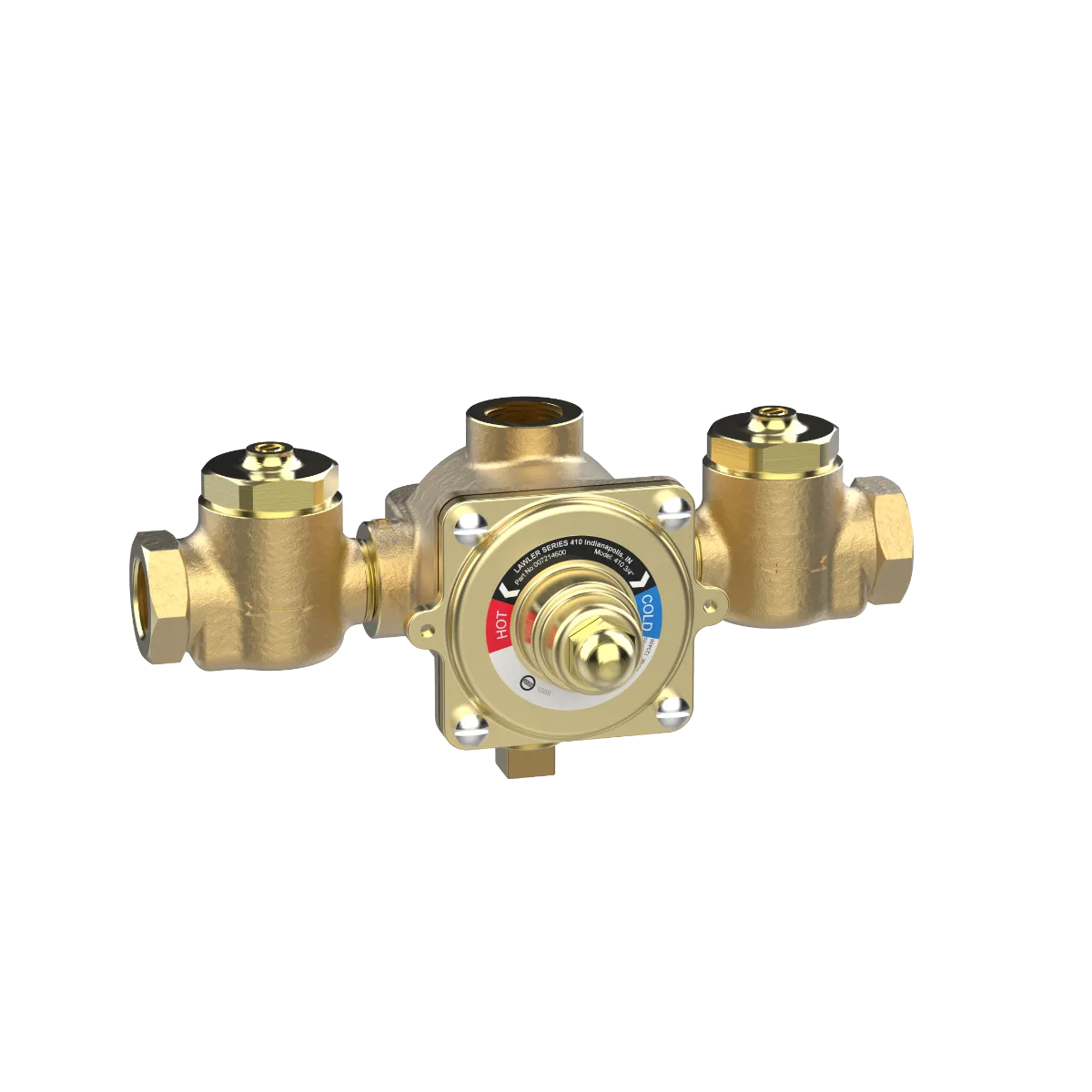

Lawler’s Model 410® thermostatic mixing valve (Type T) meets your specification for a small (3/4″ NPT) controller for multiple fixtures at point-of-use. The Model 410® Type T Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. Model 410® precisely controls outlet temperatures to within ±3 degrees with flow rates between 1 to 20 GPM at 45 psi. The Model 410® can be installed with or without cabinet.

ENG# 72146

SPECIFICATIONS

Series

410

Model

410-75

Configuration

Standard

Engineering Number

72146

Application

Shower

Certification/s

ASSE 1069, Lead Free

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

1 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

8 GPM

Rated Flow at 45 PSI

20 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing72146 – 410-75 Standard – Drawing – No Dimensions
AIA Specifications72146 – 410-75 Standard – TEXT – AIA Specification
BIM Revit File72146 – 410-75 Standard – BIM
