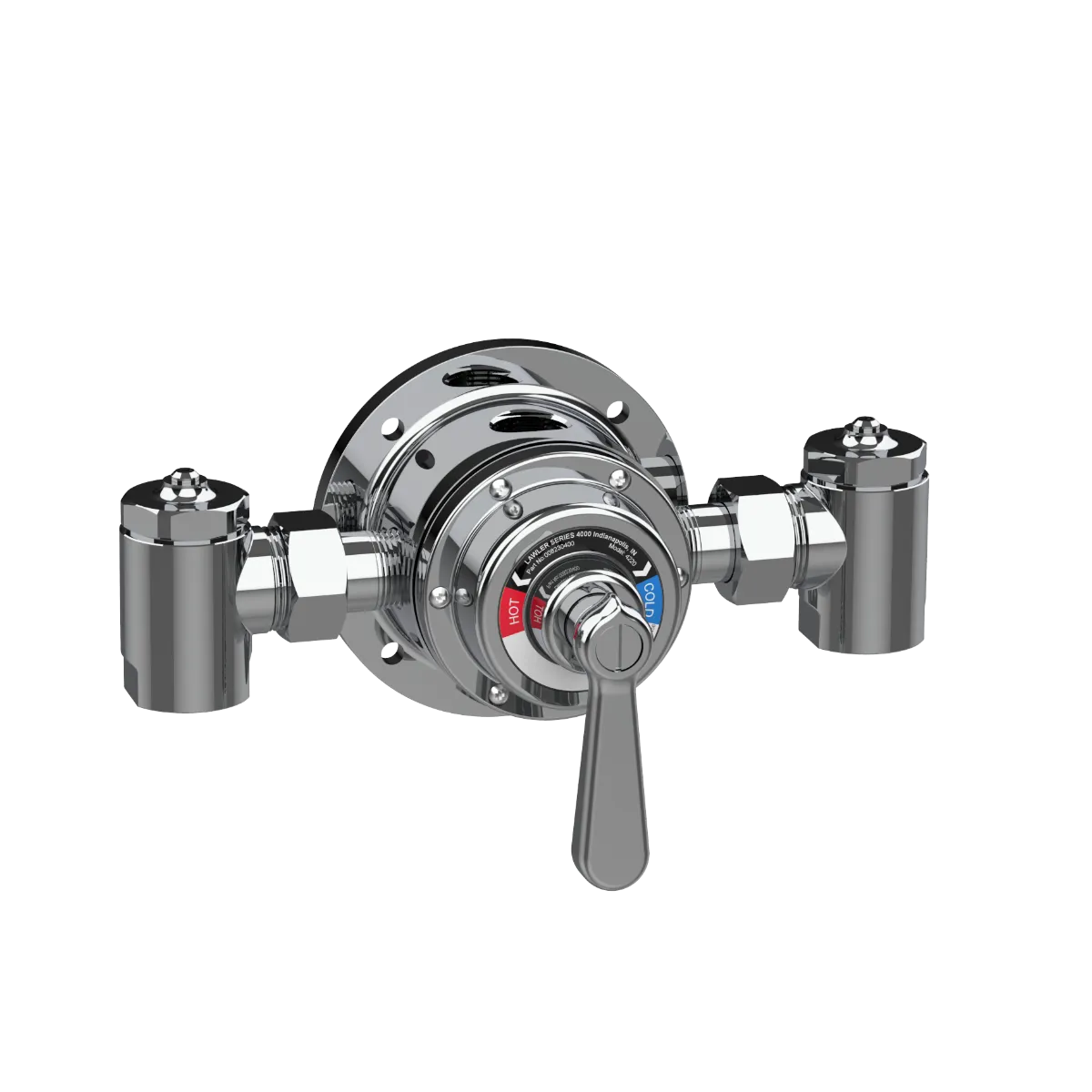

The Lawler Series 4000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature, providing safe and comfortable showering. The Series 4000® features a thermostatically operated valve which protects against scalding and chilling. Lawler’s Series 4000® exposed valve body is designed with a flat wall mounting flange so the valve can be easily mounted onto a shower wall, spa tub, or cabinet assembly. The Series 4000® is available in many styles and combinations to meet field requirements in the temperature control of water, offering maximum convenience and flexibility.
ENG# 82304
SPECIFICATIONS
| Series | 4000 |
|---|---|
| Model | 4220 |
| Configuration | Angled Stop and Check |
| Engineering Number | 82304 |
| Application | Shower |
| Connection Type | NPT |
| Inlet Connection Size | 3/4" |
| Outlet Connection Size | 3/4" |
| Min Flow | 1 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 8 GPM |
| Rated Flow at 45 PSI | 20 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Polished Chrome, Rough Brass |
DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | Install and Maintenance Manual | Series 4000 – Installation and Maintenance Manual |
| Category | Title | Link | |
|---|---|---|---|
 | Spec Books | 82304 – 4220 Angled Stop and Check – Submital Datasheet | |
 | CAD Drawing | 82304 – 4220 Angled Stop and Check – Drawing – No Dimensions | |
 | BIM Revit File | 82304 – 4220 Angled Stop and Check – BIM |
