7000-50 Standard

7000-50 Standard

Category

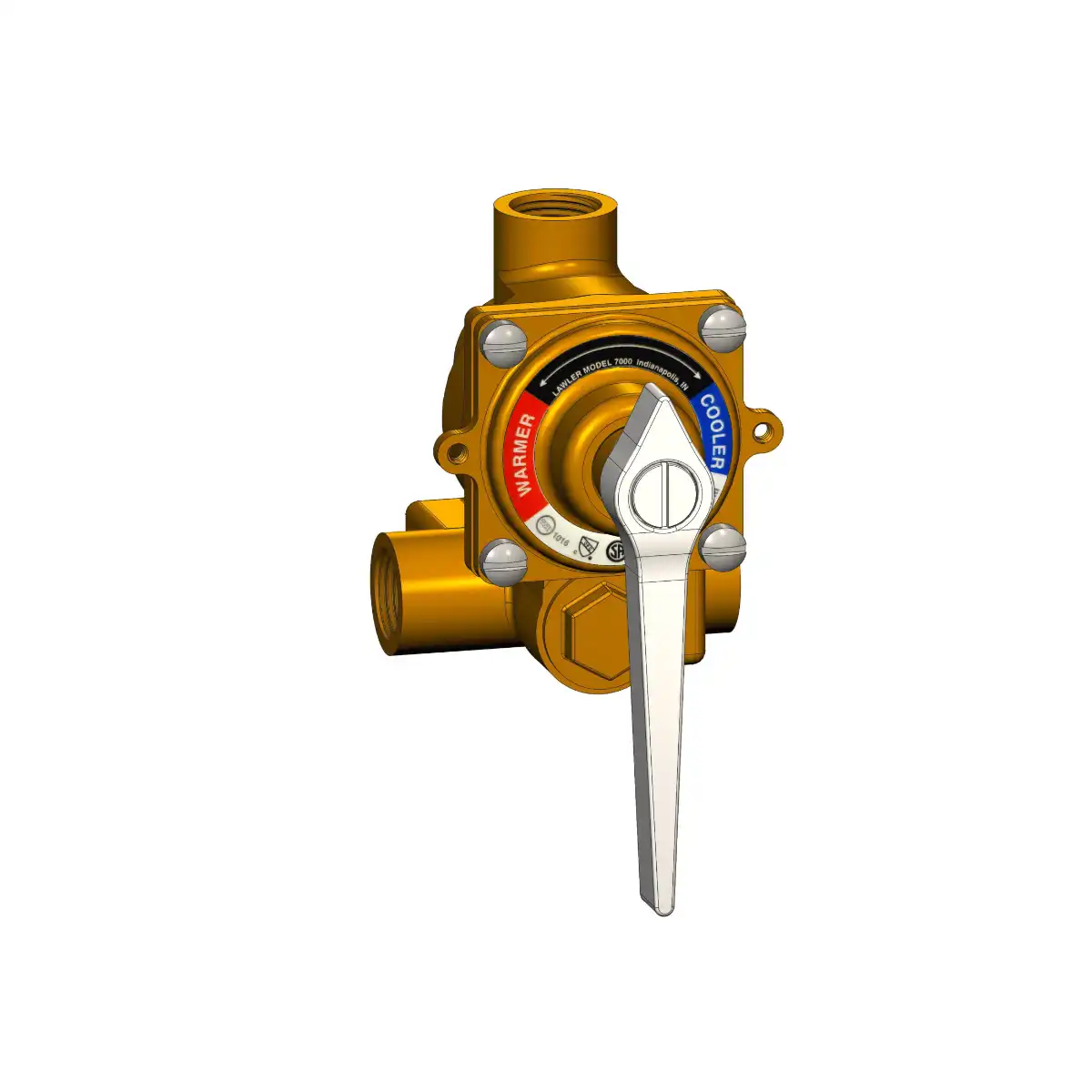

The Lawler Series 7000® Type T/P Shower Mixing Valve combines a thermostatically controlled mixing chamber and a pressure balancing chamber into a compact valve body to provide a full range of safety and protection under a variety of circumstances. The Series 7000® features Dual-Stage mixing technology that compensates for normal changes in water pressure and temperature, preventing fluctuations from affecting preset outlet temperatures. The Lawler Series 7000®, designed to be the safest concealed shower valve on the market, provides maximum safety and protection for critical applications. The valve’s independent chambers make it a true T/P valve.

ENG# 81697

Check out the 7000-50 Standard today!

SPECIFICATIONS

Series

7000

Model

7000-50

Configuration

Standard

Engineering Number

81697

Application

Shower

Certification/s

ASME A112, ASSE 1016, CSA B125

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1 GPM, 1/2 GPM, 4 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

1 GPM, 1-3/4 GPM, 4-1/4 GPM

Rated Flow at 45 PSI

10 GPM, 2-1/2 GPM, 5 GPM

Temperature Range

Full Cold to 115°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual7000 Series – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing81697 – 7000-50 Standard – Drawing – No Dimensions
blue shapes
Spec Books81697 – 7000-50 Standard – Submital Datasheet
blue protractor icon
BIM Revit File81697 – 7000-50 Standard – BIM
