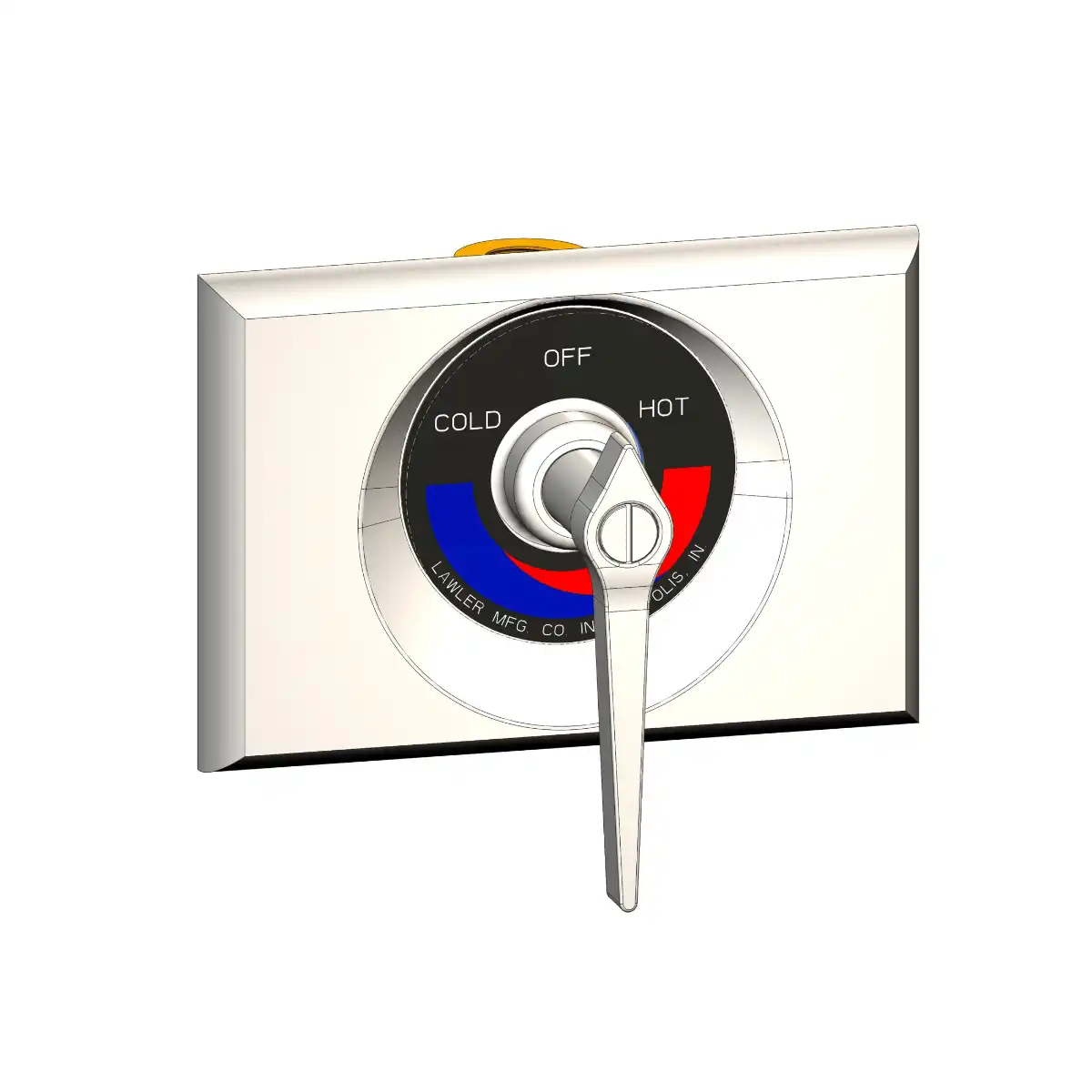

3500-50 Standard
3500-50 Standard
The Lawler Series 3000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to higher temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature. The Series 3000® provides anti-scalding and anti-chilling protection through its thermostatically operated valve. The Lawler Series 3000® offers maxium choice, while also providing maximum comfort, for a variety of applications.
ENG# 72047
Check out the 3500-50 Standard today!
SPECIFICATIONS
| Series | 3000 |
|---|---|
| Model | 3500-50 |
| Configuration | Standard |
| Engineering Number | 72047 |
| Application | Shower |
| Certification/s | ASME A112, ASSE 1016, CSA B125 |
| Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Outlet Connection Size | 1/2" |
| Min Flow | 1 GPM, 1/2 GPM, 4 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 1 GPM, 1-3/4 GPM, 4-1/4 GPM |
| Rated Flow at 45 PSI | 10 GPM, 2-1/2 GPM, 5 GPM |
| Temperature Range | Full Cold to 115°F |
| Finish | Polished Chrome, Rough Brass |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
| Spec Books | S3500 – Assembly Diagrams – Submittal Datasheet | ||
 | CAD Drawing | 72047 – 3500-50 Standard – Drawing – No Dimensions | |
 | AIA Specifications | 72047 – 3500-50 Standard – TEXT – AIA Specification | |
 | Spec Books | 72047 – 3500-50 Standard – Submital Datasheet | |
 | BIM Revit File | 72047 – 3500-50 Standard – BIM |
