410-75 Piped Thermometer Cabinet
410-75 Piped Thermometer Cabinet
Lawler’s Model 410® thermostatic mixing valve (Type T) meets your specification for a small (3/4″ NPT) controller for multiple fixtures at point-of-use. The Model 410® Type T Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. Model 410® precisely controls outlet temperatures to within ±3 degrees with flow rates between 1 to 20 GPM at 45 psi. The Model 410® can be installed with or without cabinet.
ENG# 86501
SPECIFICATIONS
| Series | 410 |
|---|---|
| Model | 410-75 |
| Configuration | Piped Thermometer |
| Engineering Number | 86501 |
| Application | Shower |
| Certification/s | ASSE 1069, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 3/4" |
| Outlet Connection Size | 3/4" |
| Min Flow | 1 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 8 GPM |
| Rated Flow at 45 PSI | 20 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Polished Chrome, Rough Brass |

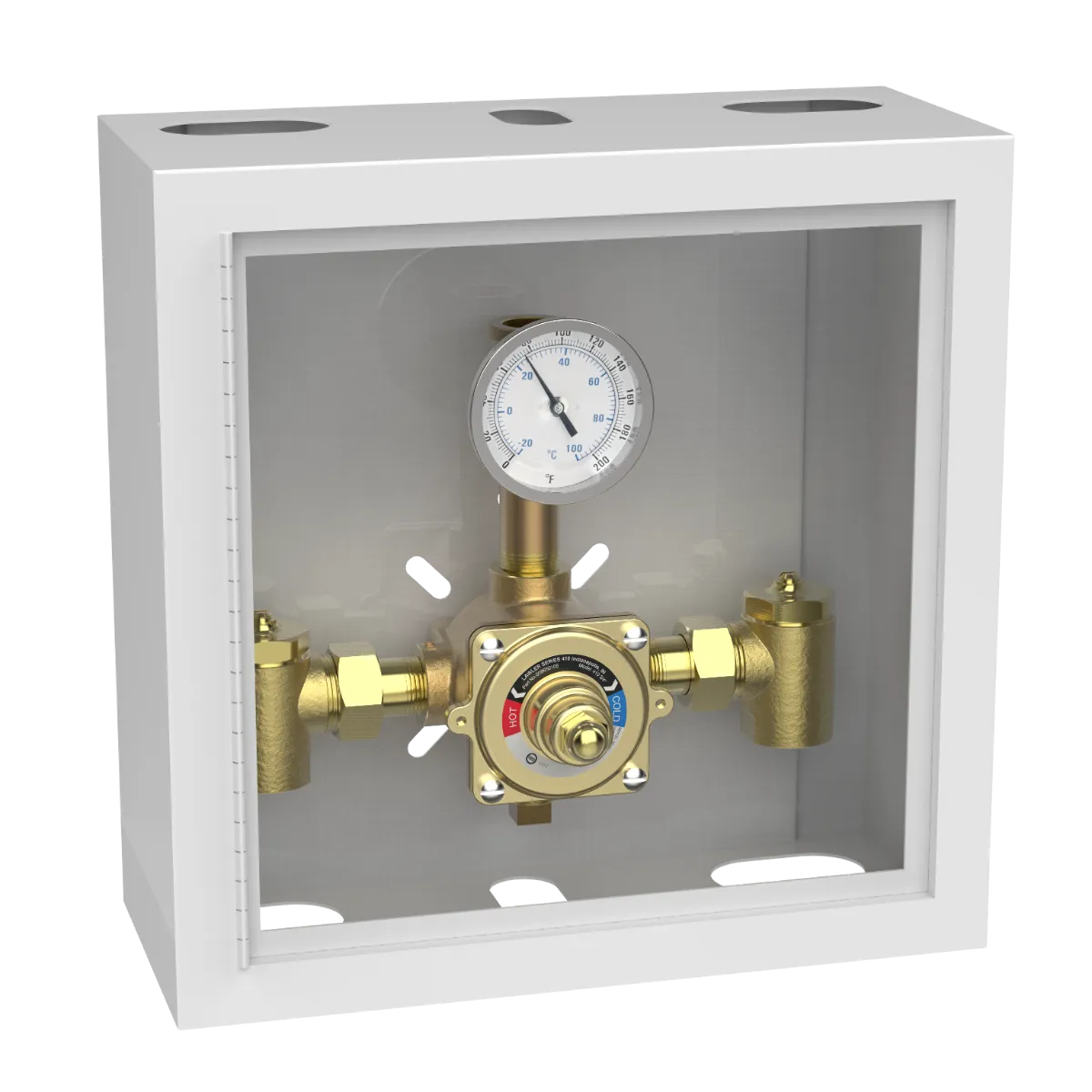

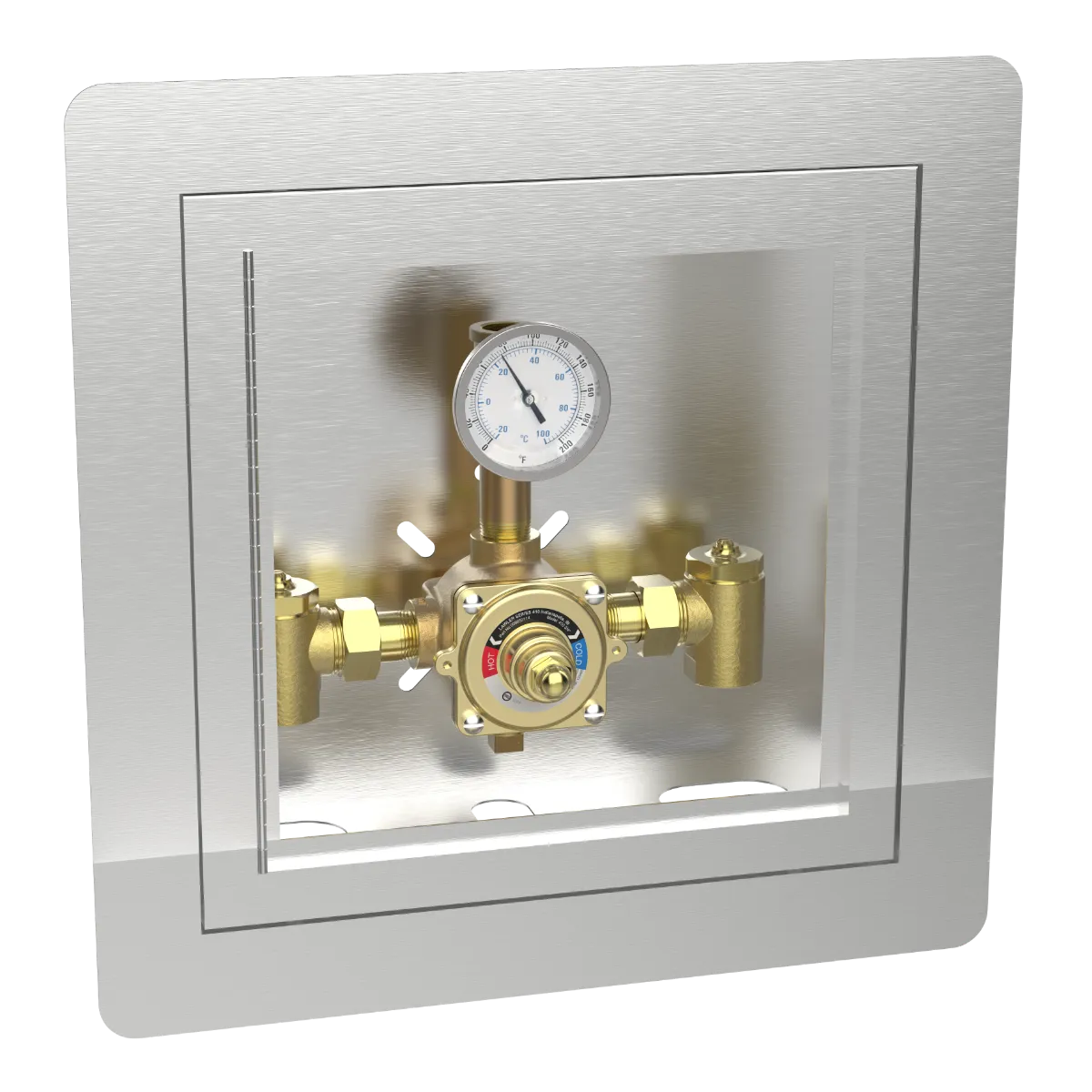

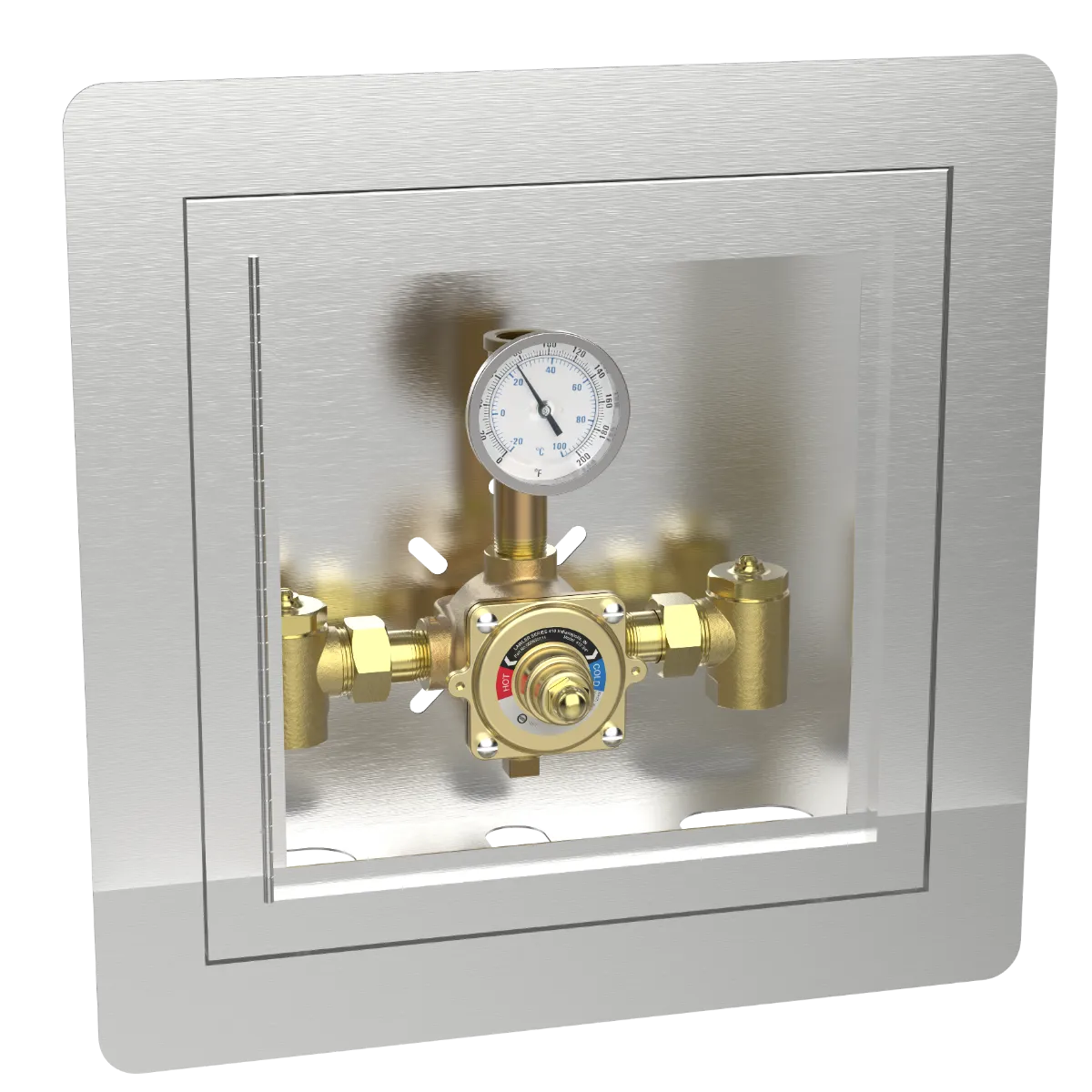

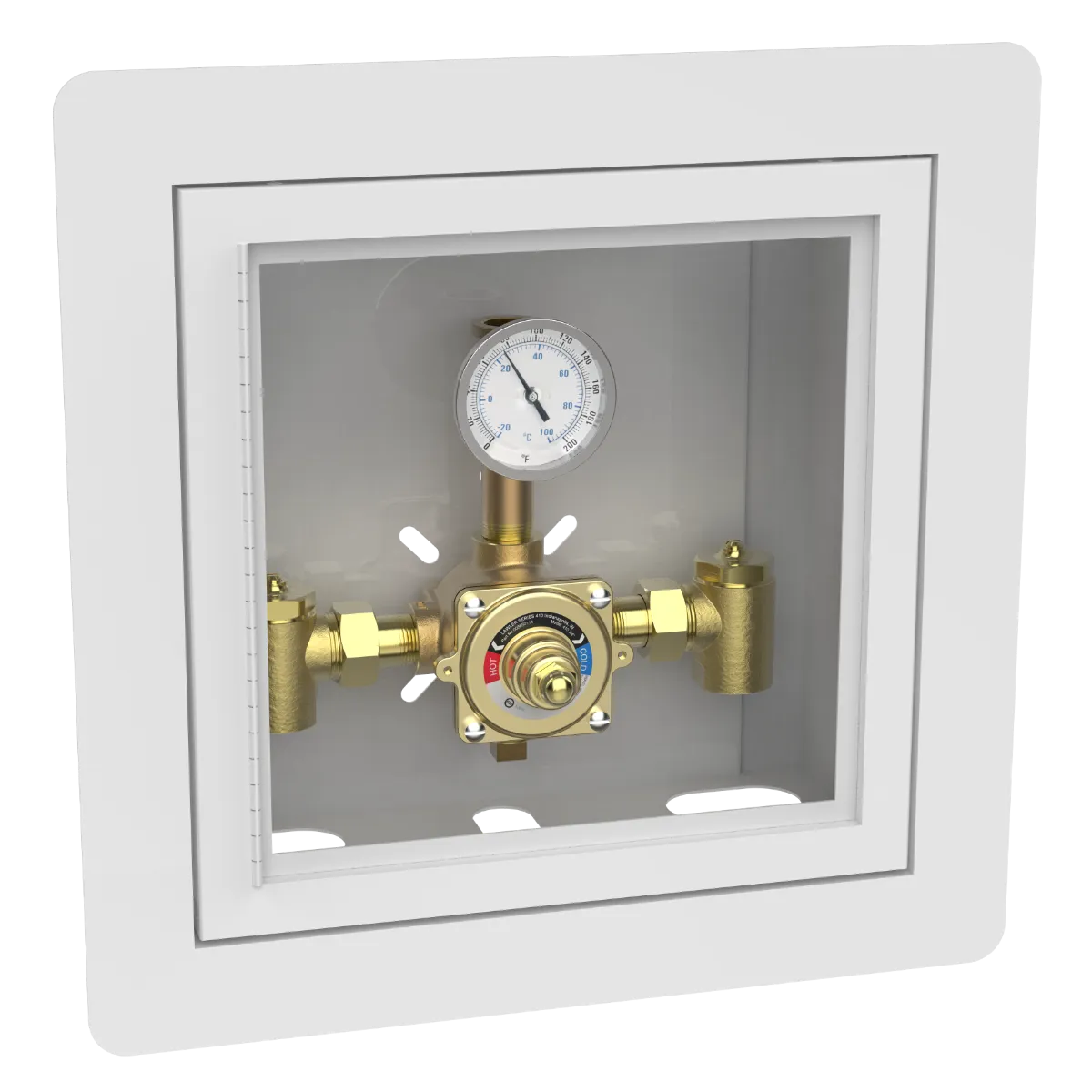

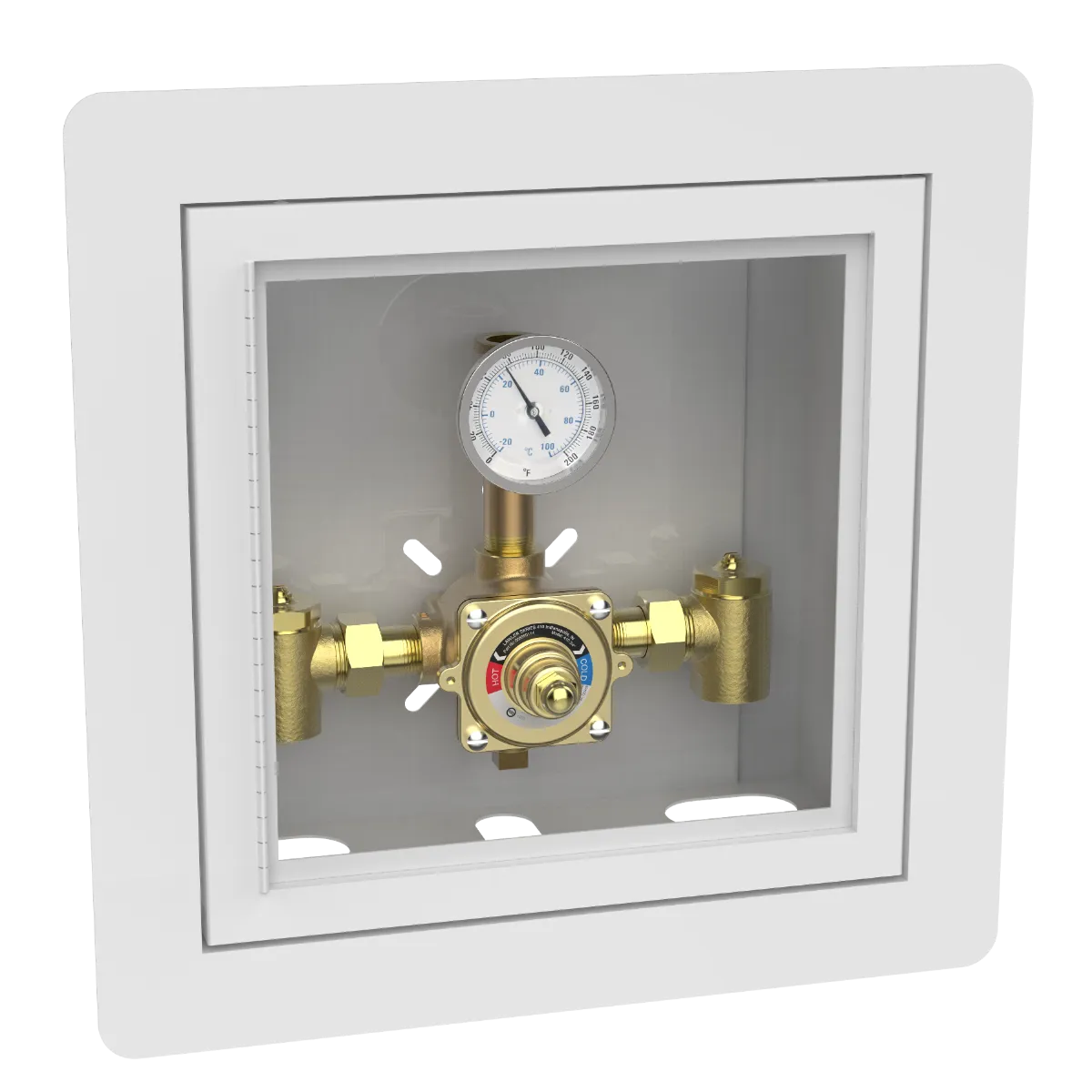

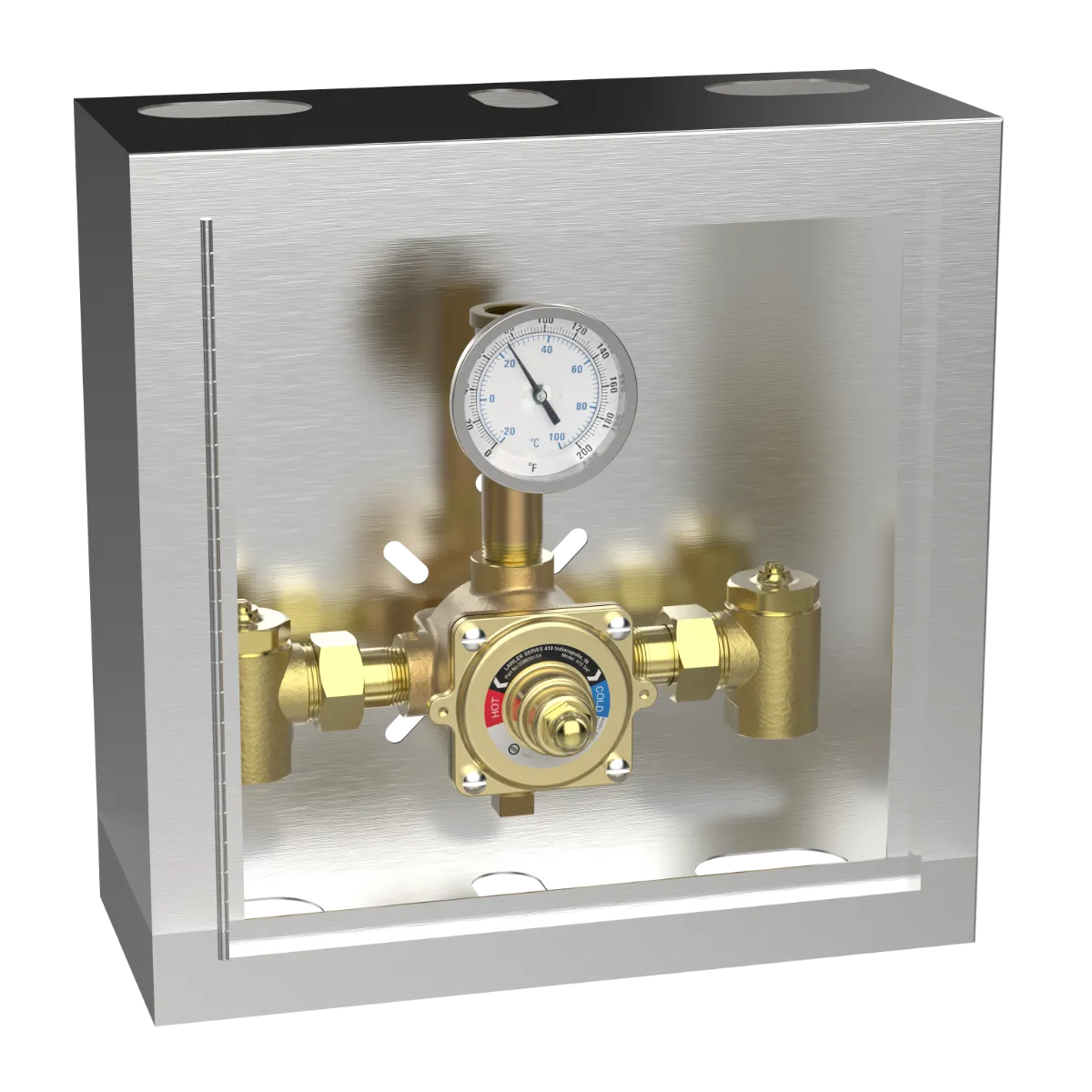

| Cabinet Mounting | Exposed, Recessed, Semi-Recessed |
| Cabinet Finish | Baked White Enamel, Stainless Steel |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | Spec Books | 86501 – 410-75 Piped Thermometer Cabinet – Submital Datasheet | |
 | CAD Drawing | 86501 – 410-75 Piped Thermometer Cabinet – Drawing – No Dimensions | |
 | AIA Specifications | 86501 – 410-75 Piped Thermometer Cabinet – TEXT – AIA Specification | |
 | BIM Revit File | 86501 – 410-75 Piped Thermometer Cabinet – BIM |
