4220 Standard

4220 Standard

Category

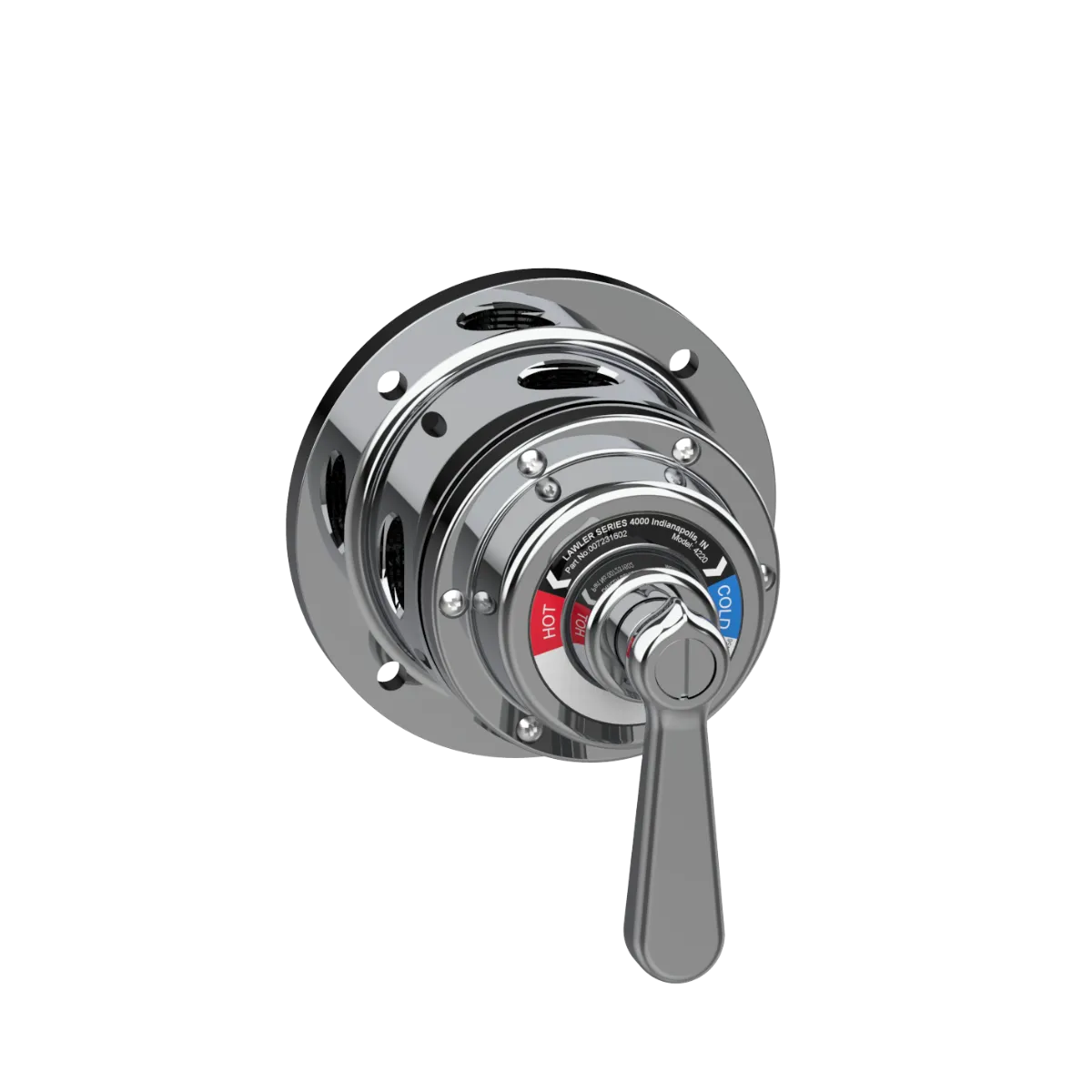

The Lawler Series 4000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature, providing safe and comfortable showering. The Series 4000® features a thermostatically operated valve which protects against scalding and chilling. Lawler’s Series 4000® exposed valve body is designed with a flat wall mounting flange so the valve can be easily mounted onto a shower wall, spa tub, or cabinet assembly. The Series 4000® is available in many styles and combinations to meet field requirements in the temperature control of water, offering maximum convenience and flexibility.

ENG# 72316

SPECIFICATIONS

Series

4000

Model

4220

Configuration

Standard

Engineering Number

72316

Application

Shower

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing72316 – 4220 Standard – Drawing – No Dimensions
BIM Revit File72316 – 4220 Standard – BIM
