6115 Mixing System
6115 Mixing System
Lawler’s Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s Model 61® is an effective solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller.

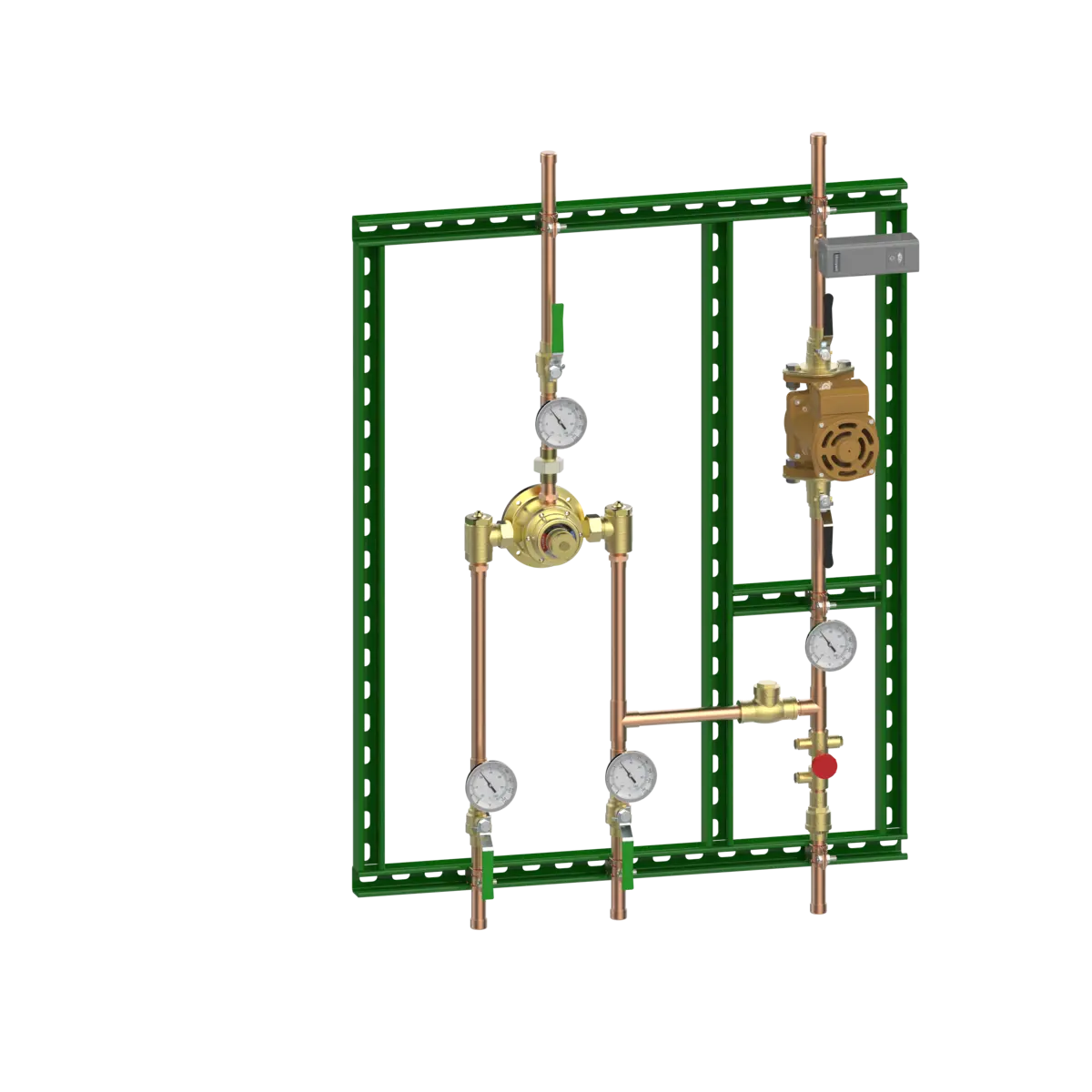

Lawler’s Recirculation Systems is a turnkey unit which includes Lawler’s Model 61® as well as an engineer specified recirculation pump, circuit setting balancing valve, thermometers, ball valves and mounting strut.
This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability. Check it out today.
ENG# 86645
Find This Product
Enter your US zip code OR Canadian province abbreviation below to find your local Lawler Representative
SPECIFICATIONS
| Series | 61 |
|---|---|
| Model | 6115 |
| Configuration | Mixing System |
| Engineering Number | 86645 |
| Application | Master Controller, Mixing System |
| Certification/s | ASSE 1017, CSA B125.3 |
| Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Outlet Connection Size | 1/2" |
| Min Flow | 1/2 GPM |
| Min Flow with Recirculation | 1/4 GPM |
| Rated Flow at 10 PSI | 5-1/2 GPM |
| Rated Flow at 45 PSI | 15 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Polished Chrome, Rough Brass |
