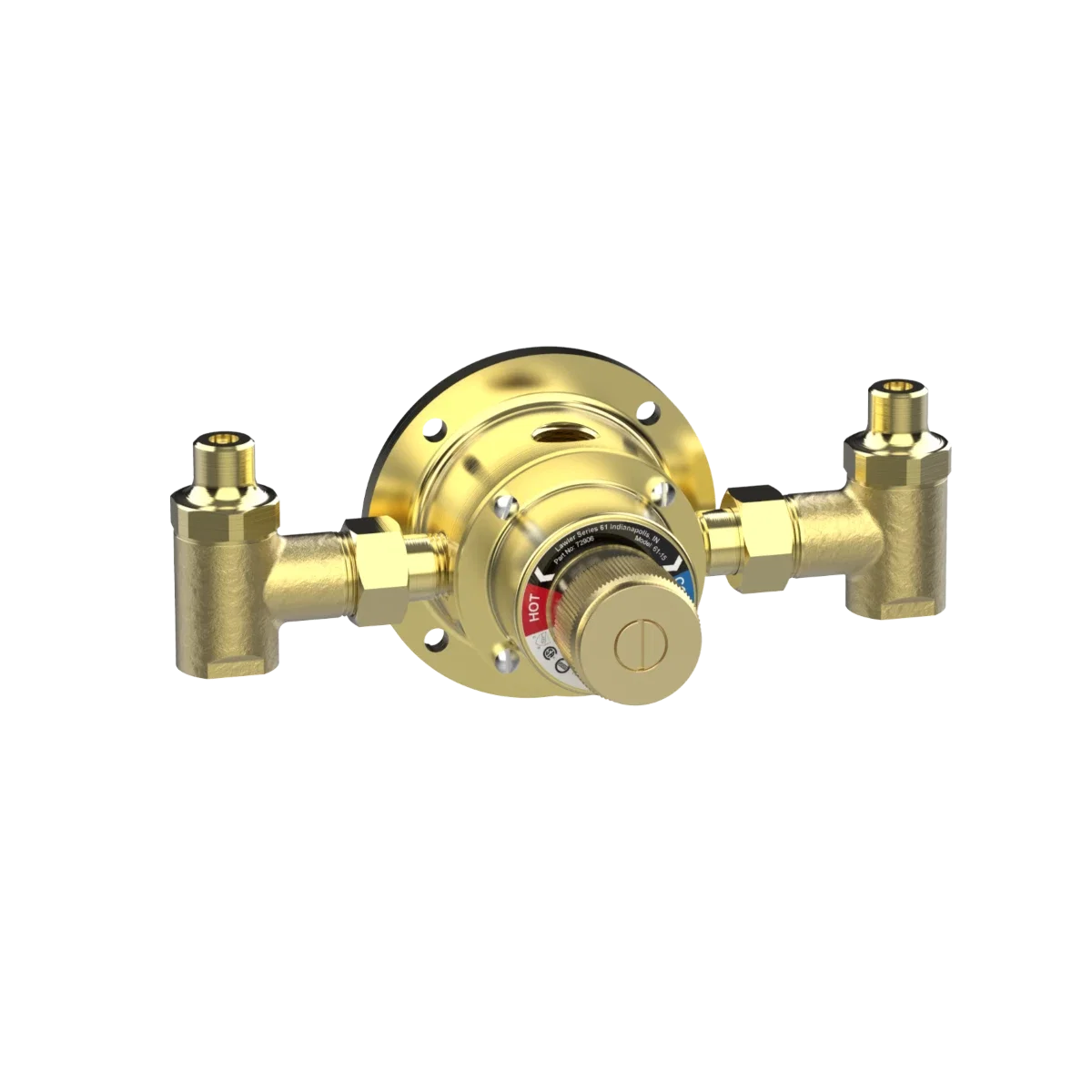

6115 Standard

6115 Standard

Lawler’s Model 61® is an effective solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller. The 61® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. Before the 61® became available, standard larger valves simply could not satisfactorily control temperatures at low flows. Now with Three-Way Protection™, the small master controller Model 61® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 61®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG#

Note: Lawler is also able to install the Model 61 in a pre-piped recirculation system to provide you with one complete system that is pre-piped, pre-installed, and pre-tested. (See Spec Sheet below labeled “6125 ManRecSys-LeadFree”)

ENG# 72906

Check out the 6115 Standard today!

SPECIFICATIONS

Series

61

Model

6115

Configuration

Standard

Engineering Number

72906

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1/2 GPM

Min Flow with Recirculation

1/4 GPM

Rated Flow at 10 PSI

5-1/2 GPM

Rated Flow at 45 PSI

15 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual61 Series – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books72906 – 6115 Standard – Submital Datasheet
blue pen icon
CAD Drawing72906 – 6115 Standard – Drawing – No Dimensions
blue notebook icon
AIA Specifications72906 – 6115 Standard – TEXT – AIA Specification
blue protractor icon
BIM Revit File72906 – 6115 Standard – BIM
