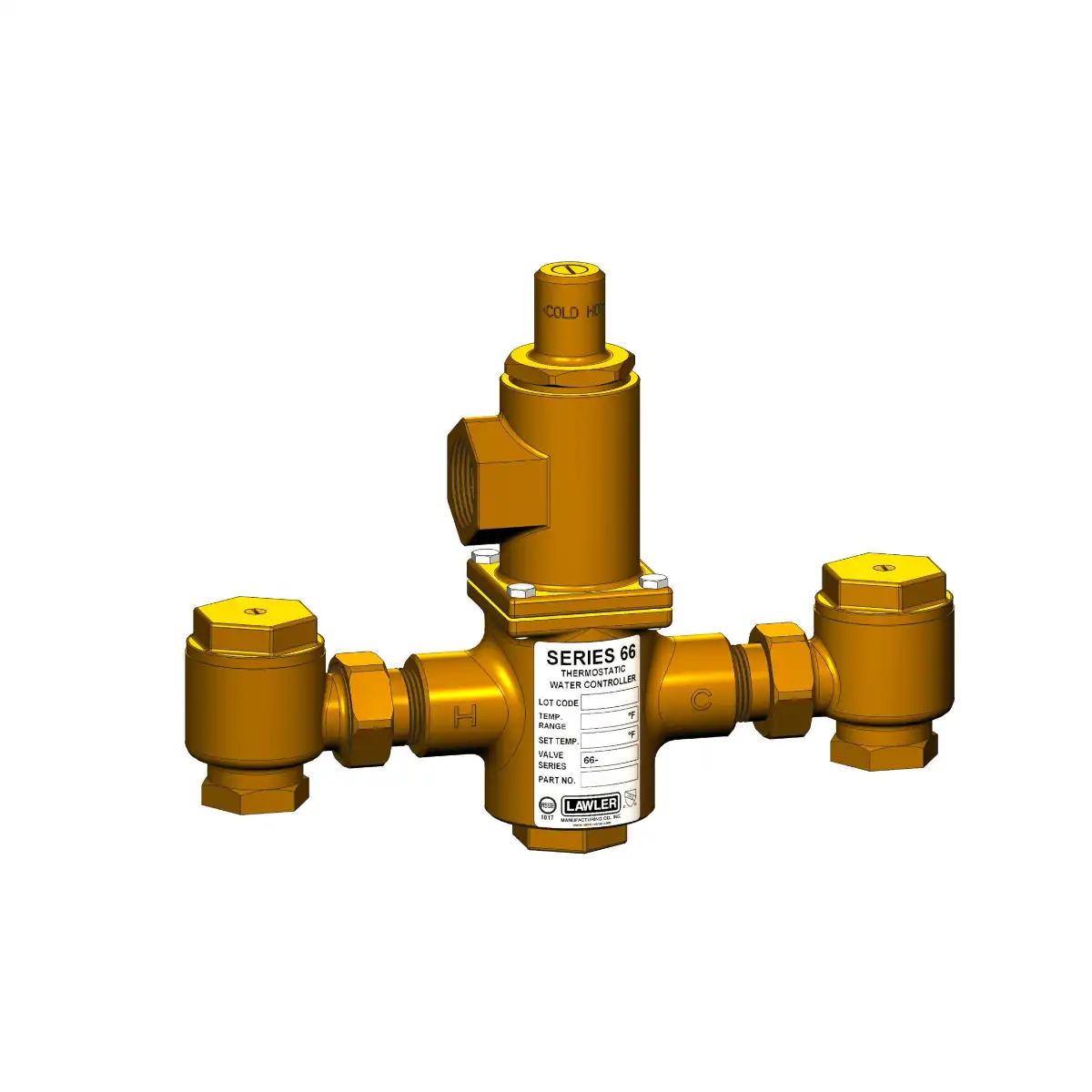

66200 Standard

66200 Standard

Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 71762

SPECIFICATIONS

Series

66

Model

66200

Configuration

Standard

Engineering Number

71762

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3

Connection Type

NPT

Inlet Connection Size

2"

Outlet Connection Size

2"

Min Flow

30 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

96 GPM

Rated Flow at 45 PSI

200 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
AIA Specifications71762 – 66200 Standard – TEXT – AIA Specification
