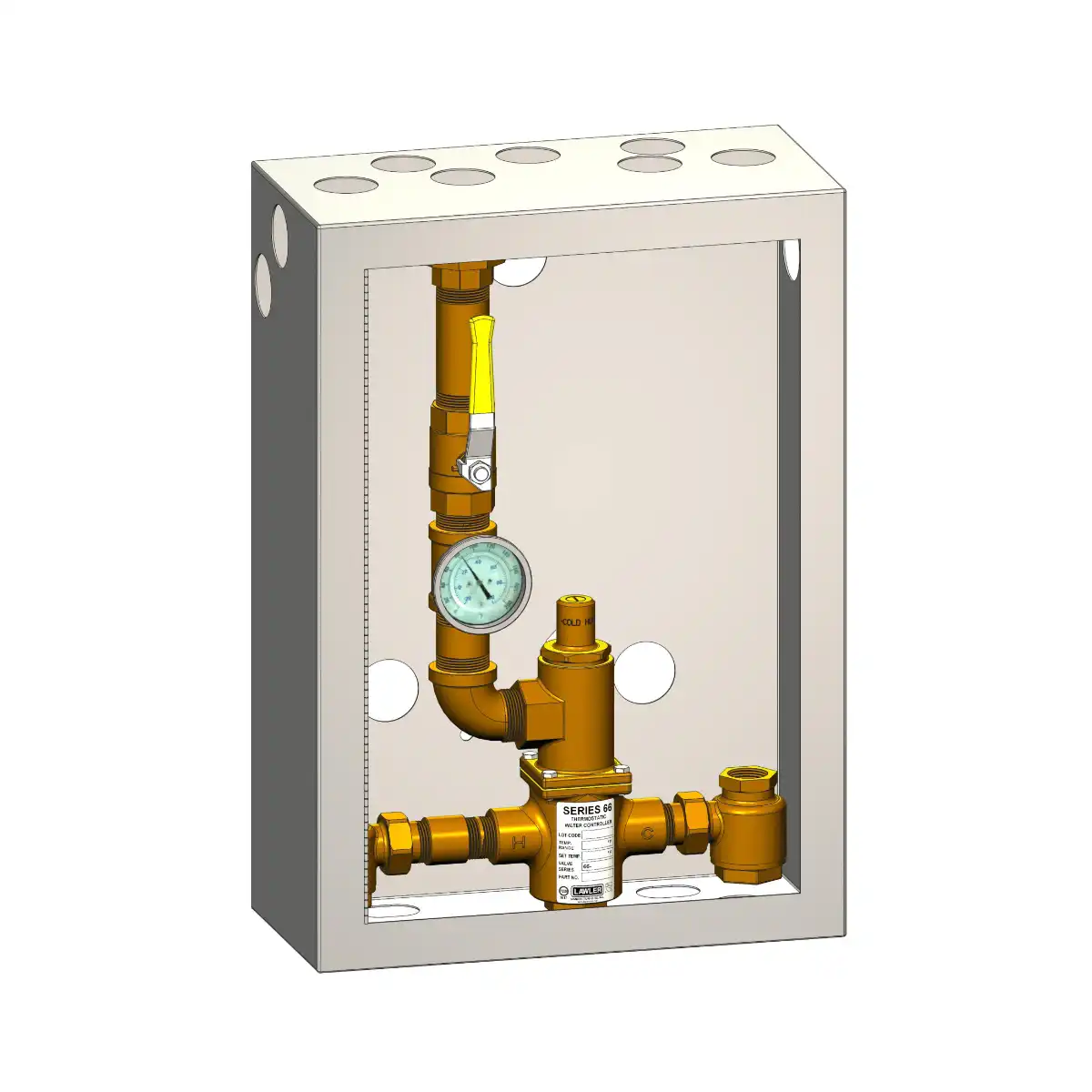

66150 Piped Thermometer Ball Valve Union Cabinet
66150 Piped Thermometer Ball Valve Union Cabinet
Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.
ENG# 83014
Find This Product
Enter your US zip code OR Canadian province abbreviation below to find your local Lawler Representative
SPECIFICATIONS
| Series | 66 |
|---|---|
| Model | 66150 |
| Configuration | Piped Thermometer Ball Valve Union |
| Engineering Number | 83014 |
| Application | Master Controller |
| Certification/s | ASSE 1017, CSA B125.3 |
| Connection Type | NPT |
| Inlet Connection Size | 1-1/2" |
| Outlet Connection Size | 2" |
| Min Flow | 22-1/2 GPM |
| Min Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 72 GPM |
| Rated Flow at 45 PSI | 150 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
| Cabinet Mounting | Exposed |
| Cabinet Finish | Baked White Enamel, Stainless Steel |
