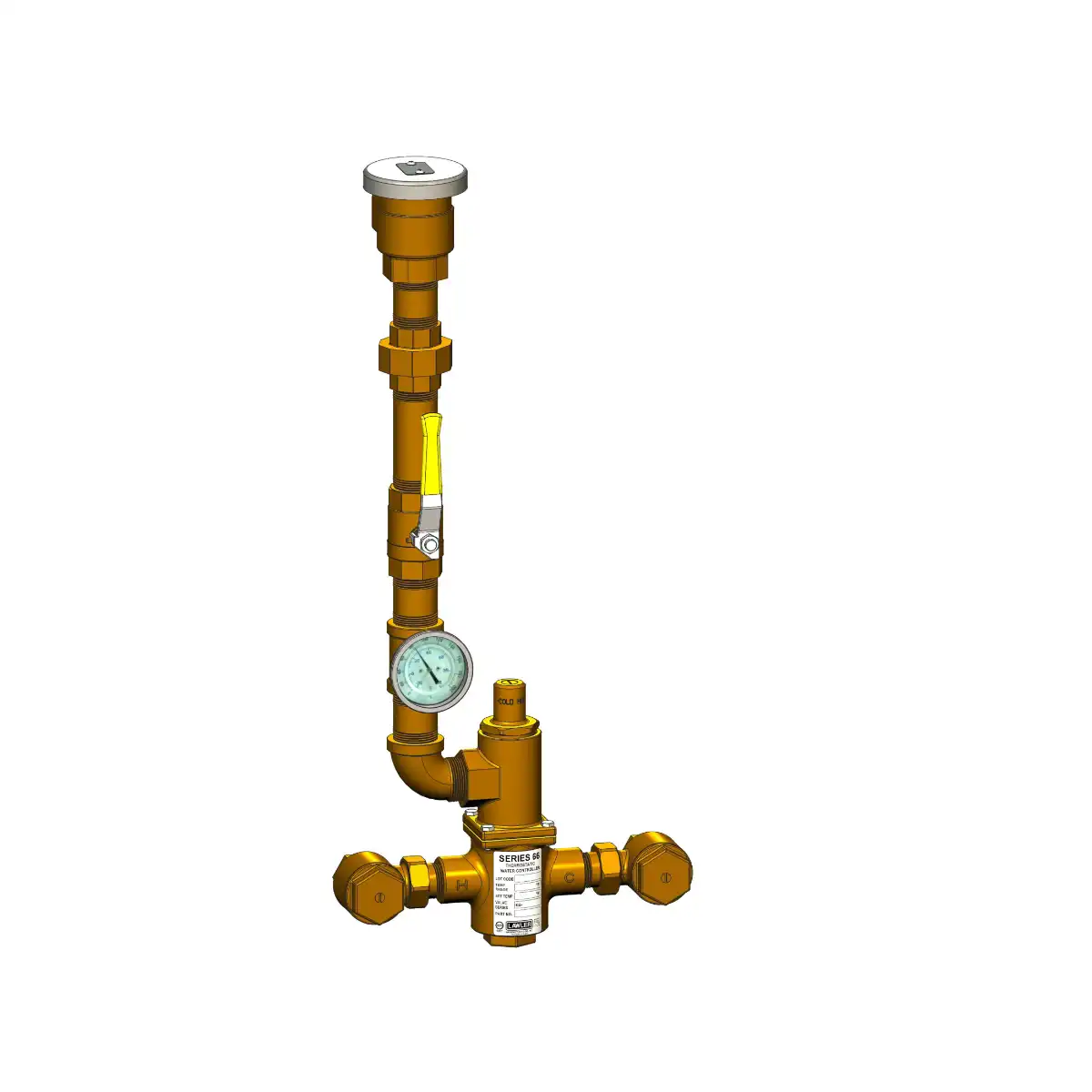

6625 Piped Thermometer Ball Valve Union Vacuum Breaker

6625 Piped Thermometer Ball Valve Union Vacuum Breaker

Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 83010

Check out the 6625 Piped Thermometer Ball Valve Union Vacuum Breaker today!

SPECIFICATIONS

Series

66

Model

6625

Configuration

Piped Thermometer Ball Valve Union Vacuum Breaker

Engineering Number

83010

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

3-3/4 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

12 GPM

Rated Flow at 45 PSI

25 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual66 Series – Standard – Installation and Maintenance Manual
