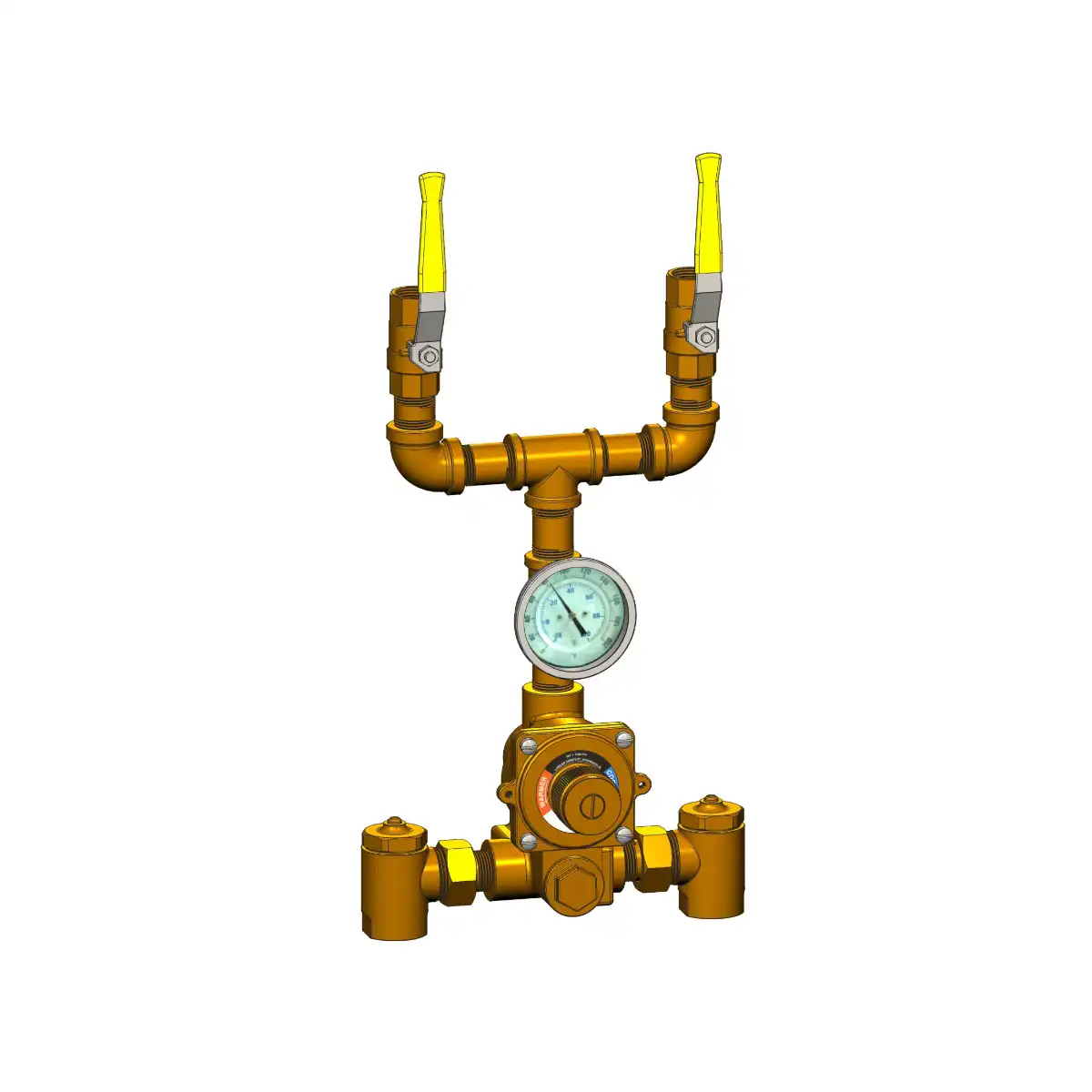

6710 Piped Thermometer Ball Valve Dual Out

6710 Piped Thermometer Ball Valve Dual Out

Lawler’s Model 67® is a single solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller featuring separate Thermostatic and Pressure Balance chambers. This rare combination of performance specs makes the Model 67® a “true” Type T/P valve, regulating temperatures within 1.5 GPM. The 67® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. With Three-Way Protection™, the small master controller Model 67® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 67®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 84511

Check out the 6710 Piped Thermometer Ball Valve Dual Out today!

SPECIFICATIONS

Series

67

Model

6710

Configuration

Piped Thermometer Ball Valve Dual Out

Engineering Number

84511

Application

Master Controller

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1/2 GPM

Min Flow with Recirculation

1/4 GPM

Rated Flow at 10 PSI

3-1/2 GPM

Rated Flow at 45 PSI

10 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books84511 – 6710 Piped Thermometer Ball Valve Dual Out – Submital Datasheet
