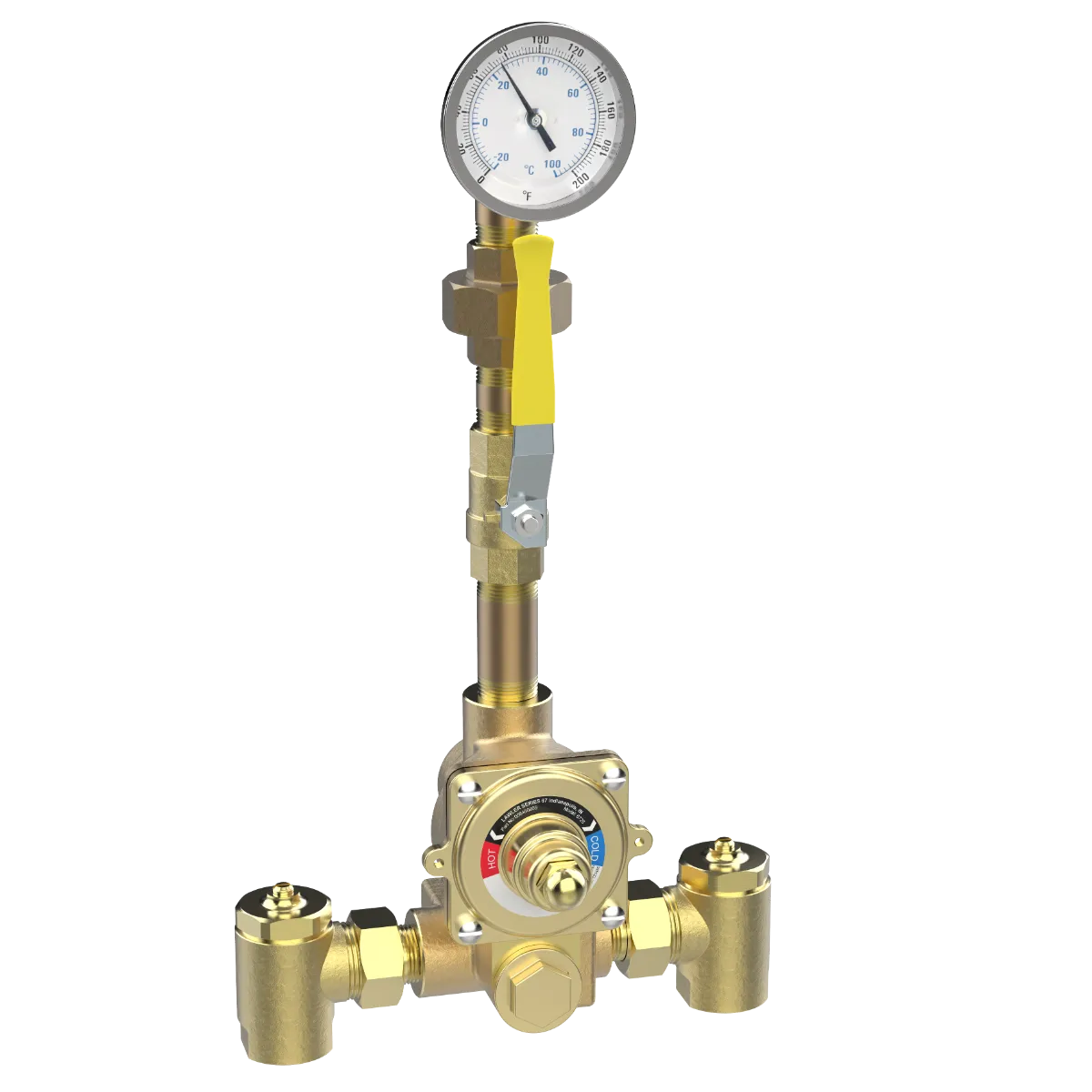

6725 Piped Thermometer Ball Valve Union

6725 Piped Thermometer Ball Valve Union

Lawler’s Model 67® is a single solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller featuring separate Thermostatic and Pressure Balance chambers. This rare combination of performance specs makes the Model 67® a “true” Type T/P valve, regulating temperatures within 1.5 GPM. The 67® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. With Three-Way Protection™, the small master controller Model 67® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 67®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 84509

Check out the 6725 Piped Thermometer Ball Valve Union today!

SPECIFICATIONS

Series

67

Model

6725

Configuration

Piped Thermometer Ball Valve Union

Engineering Number

84509

Application

Master Controller

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

1 GPM

Min Flow with Recirculation

1/4 GPM

Rated Flow at 10 PSI

10 GPM

Rated Flow at 45 PSI

25 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual67 Series – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books84509 – 6725 Piped Thermometer Ball Valve Union – Submital Datasheet
blue pen icon
CAD Drawing84509 – 6725 Piped Thermometer Ball Valve Union – Drawing – No Dimensions
blue protractor icon
BIM Revit File84509 – 6725 Piped Thermometer Ball Valve Union – BIM
