Lawler’s Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s patented 800 Series High-Low Master Controllers increase the performance and cost effectiveness of this pre-piped system by controlling both high and low flows while providing Three-Way Protection™.

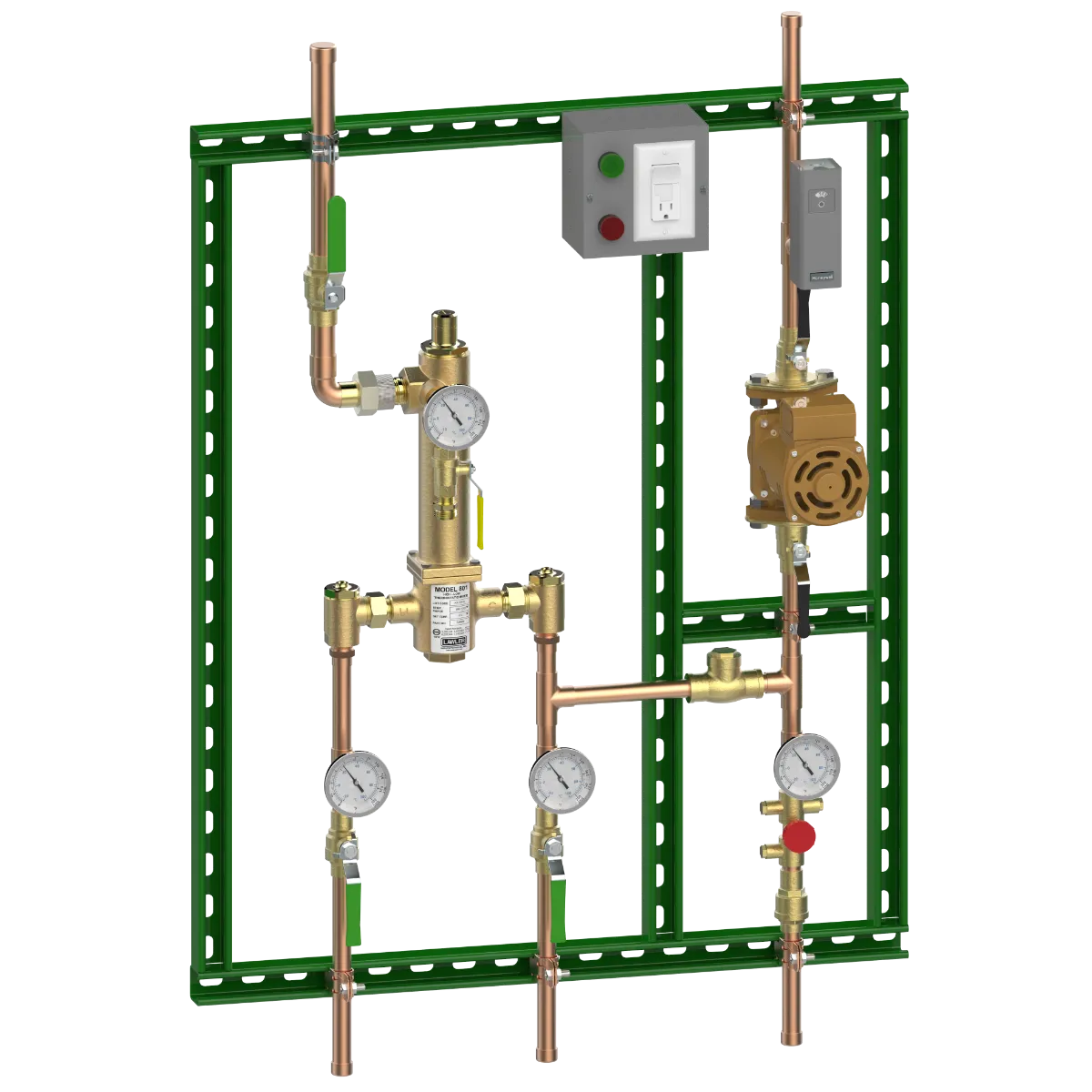

Lawler’s Recirculation Systems is a turnkey unit which includes Lawler’s patented single valve high-low technology as well as an engineer specified recirculation pump, circuit setting balancing valve, thermometers, ball valves and mounting strut.

This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

ENG# 86600

SPECIFICATIONS

Series

800

Model

801

Configuration

Mixing System

Engineering Number

86600

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

3/4"

Outlet Connection Size

1"

Min Flow

1 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

25 GPM

Rated Flow at 45 PSI

50 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing86600 – 801 Mixing System – Drawing – No Dimensions
AIA Specifications86600 – 801 Mixing System – TEXT – AIA Specification
Spec Books86600 – 801 Mixing System – Submital Datasheet
BIM Revit File86600 – 801 Mixing System – BIM
