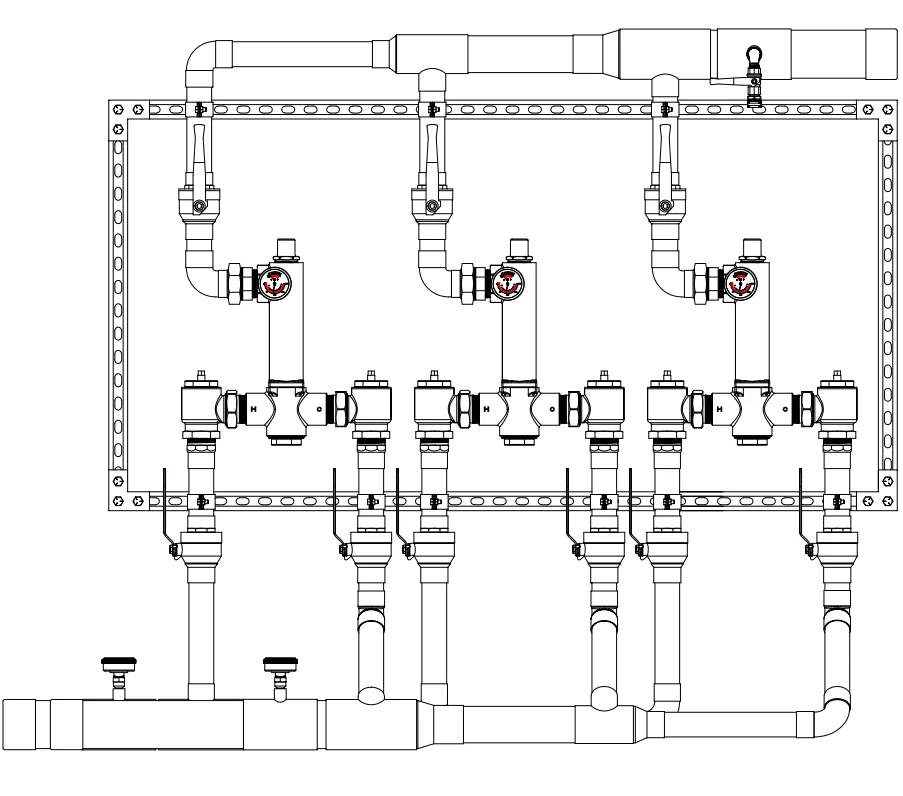

801 Tri-Parallel Installation

801 Tri-Parallel Installation

Lawler’s patented Series 800 high-low master controller technology offers a unique solution when designing for high-capacity systems. This pre-piped, factory tested triple parallel system can meet your need for significantly increased capacity or for a redundant system in applications where the domestic hot water system cannot be interrupted. This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

Note: Lawler can also assemble Pre-Piped Quad Parallel Systems when your demand is unusually high.

ENG# 86680

SPECIFICATIONS

Series

800

Model

801

Configuration

Tri-Parallel Installation

Engineering Number

86680

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

1-1/2"

Outlet Connection Size

2"

Min Flow

3 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

75 GPM

Rated Flow at 45 PSI

150 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
AIA Specifications86680 – 801 Tri-Parallel Installation – TEXT – AIA Specification
