802 Parallel Mixing System

802 Parallel Mixing System

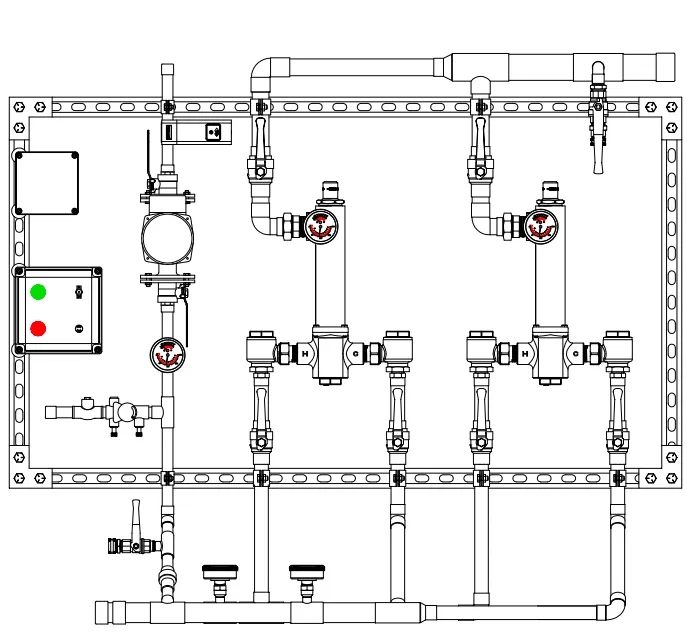

The Lawler 800 Parallel Manifold Recirculation System offers your customers either a redundant or high capacity designed system that is delivered in a pre-piped configuration for proper recirculation.

This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you and your customers one point of design and one point of accountability.

ENG# 86631

SPECIFICATIONS

Series

800

Model

802

Configuration

Parallel Mixing System

Engineering Number

86631

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

1-1/2"

Outlet Connection Size

2"

Min Flow

4 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

78 GPM

Rated Flow at 45 PSI

160 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing86631 – 802 Parallel Mixing System – Drawing – No Dimensions
BIM Revit File86631 – 802 Parallel Mixing System – BIM
