803 Mixing System
Lawler’s Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s patented 800 Series High-Low Master Controllers increase the performance and cost effectiveness of this pre-piped system by controlling both high and low flows while providing Three-Way Protection™.

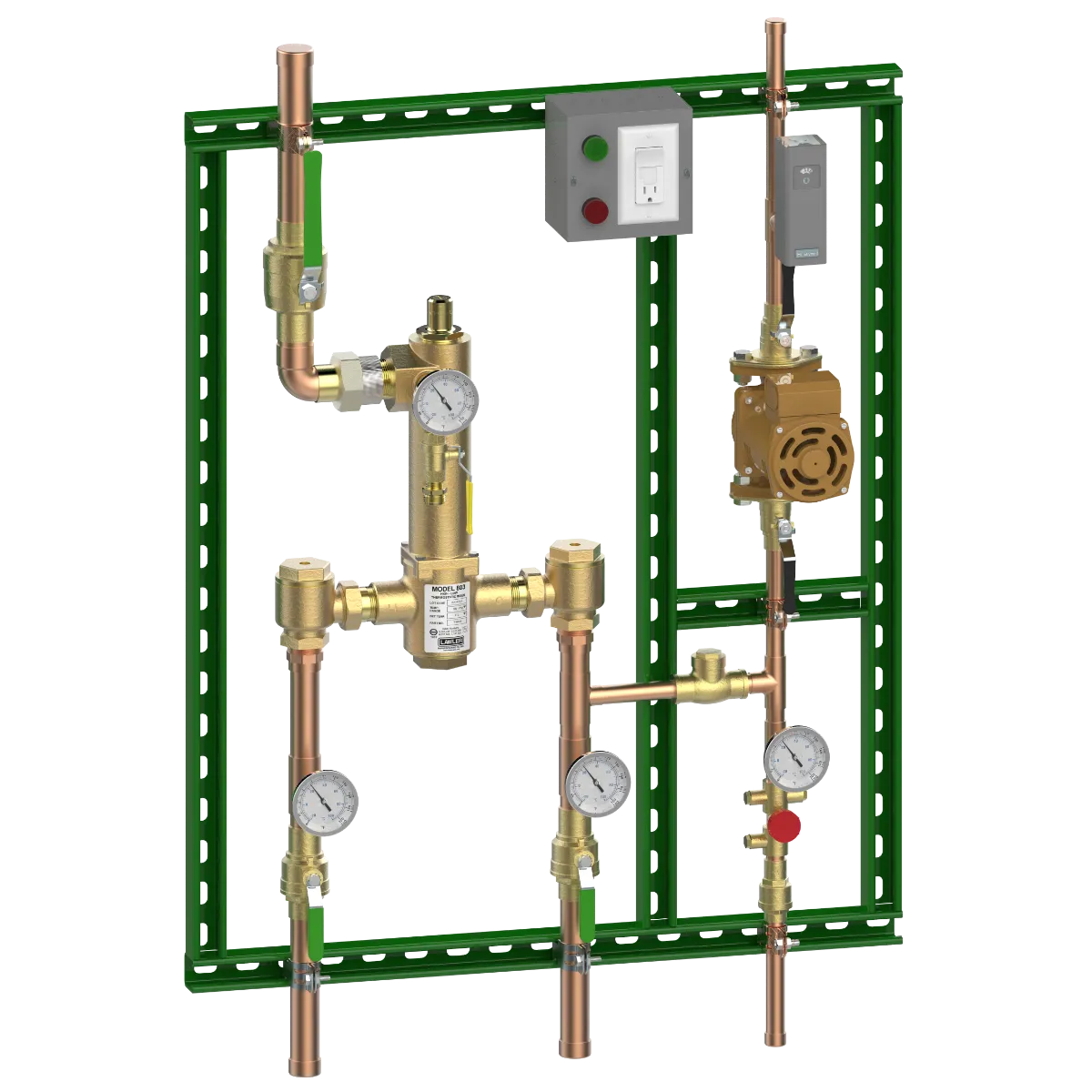

Lawler’s Recirculation Systems is a turnkey unit which includes Lawler’s patented single valve high-low technology as well as an engineer specified recirculation pump, circuit setting balancing valve, thermometers, ball valves and mounting strut.
This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.
Master Controller, Mixing System
ASSE 1017, CSA B125.3, Lead Free
|Inlet Connection Size||
|Outlet Connection Size||
|Min Flow with Recirculation||
|Rated Flow at 10 PSI||
|Rated Flow at 45 PSI||
110°F – 140°F, 70°F – 100°F, 90°F – 120°F
Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass
|Install and Maintenance Manual||803 – Installation and Maintenance Manual|
|CAD Drawing||86603 – 803 Mixing System – Drawing – No Dimensions|
|AIA Specifications||86603 – 803 Mixing System – TEXT – AIA Specification|
|Spec Books||86603 – 803 Mixing System – Submital Datasheet|
|BIM Revit File||86603 – 803 Mixing System – BIM|
