804 Parallel Installation

804 Parallel Installation

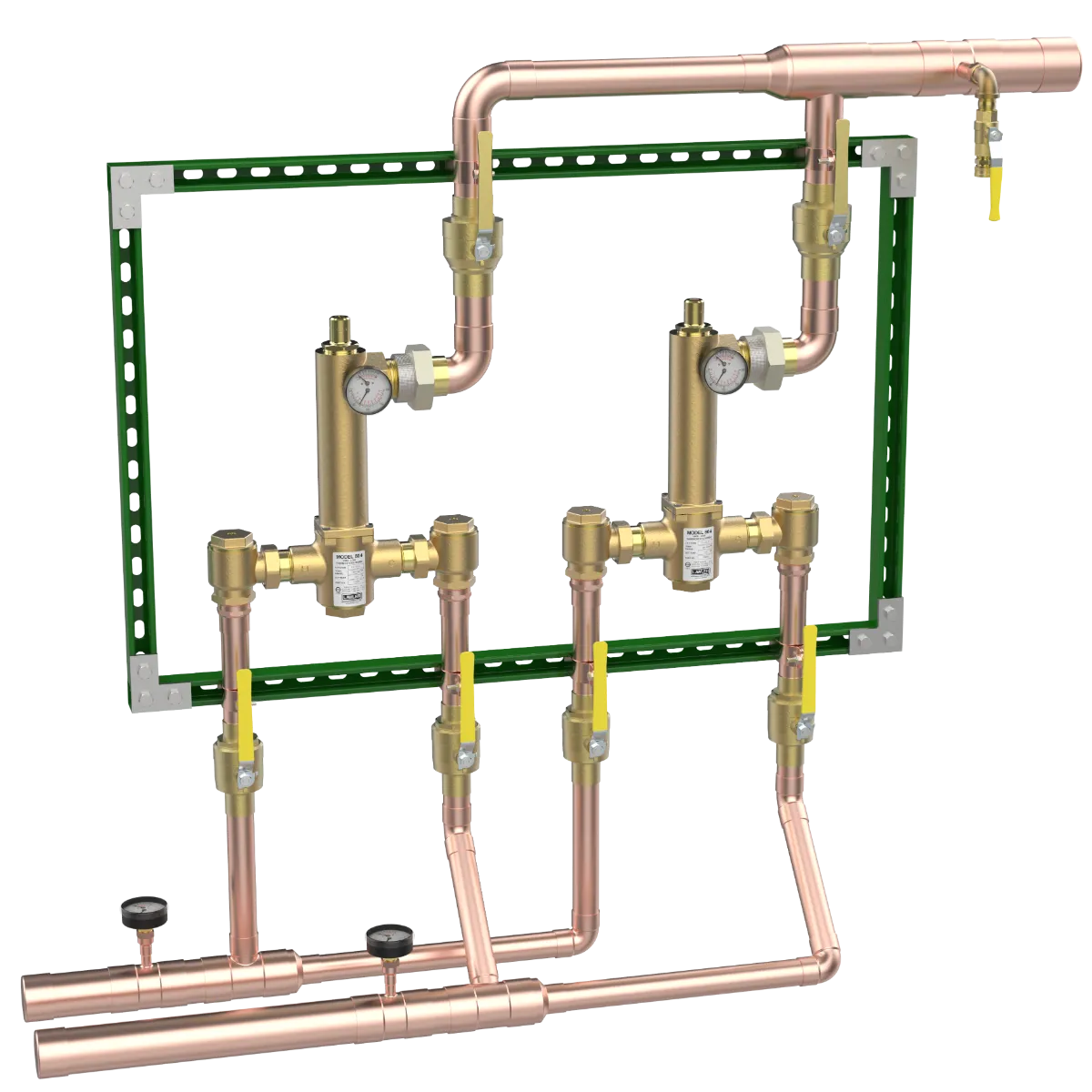

Lawler’s patented Series 800 high-low master controller technology offers a unique solution when designing for high-capacity systems. This pre-piped, factory tested parallel system can meet your need for increased capacity or for a redundant system in applications where the domestic hot water system cannot be interrupted. Lawler’s Pre-Piped Double Parallel System is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

ENG# 86613

Check out the 804 Parallel Installation today!

SPECIFICATIONS

Series

800

Model

804

Configuration

Parallel Installation

Engineering Number

86613

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

2-1/2"

Outlet Connection Size

3"

Min Flow

8 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

144 GPM

Rated Flow at 45 PSI

300 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual804 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing86613 – 804 Parallel Installation – Drawing – No Dimensions
blue notebook icon
AIA Specifications86613 – 804 Parallel Installation – TEXT – AIA Specification
blue shapes
Spec Books86613 – 804 Parallel Installation – Submital Datasheet
blue protractor icon
BIM Revit File86613 – 804 Parallel Installation – BIM
