805 Mini Mixing System Standard
805 Mini Mixing System Standard
Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution with a small footprint – just a few inches larger than a standard valve in a cabinet. Lawler’s patented 800 Series High-Low Master Controllers increase the performance and cost effectiveness of this mini pre-piped system by controlling both high and low flows while providing Three-Way Protection™.

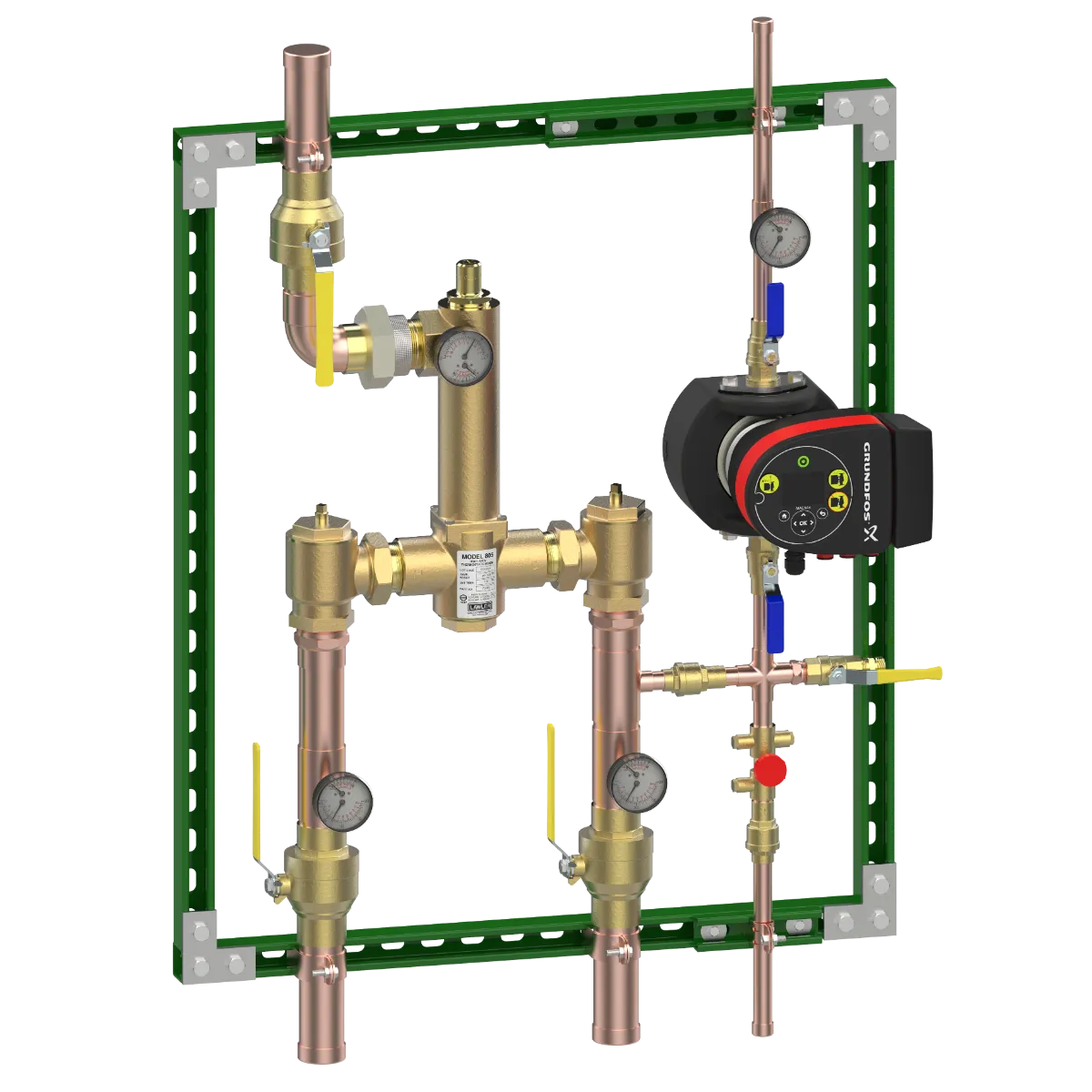

Lawler’s Mini Recirculation System is a turnkey unit that includes Lawler’s patented single valve high-low technology as well as integrated smart pump technology that helps improve balancing of the recirculation loop. The system also includes thermometers, ball valves, mounting strut and a test connection.
This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.
Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems are offered in both low capacity and high capacity configurations.
ENG# 90050
SPECIFICATIONS
| Series | 800 |
|---|---|
| Model | 805 |
| Configuration | Mini Mixing System Standard |
| Engineering Number | 90050 |
| Application | Master Controller, Mixing System |
| Certification/s | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | Sweat |
| Inlet Connection Size | 2" |
| Outlet Connection Size | 2" |
| Min Flow | 5 GPM |
| Min Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 96 GPM |
| Rated Flow at 45 PSI | 200 GPM |
| Temperature Range | 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | CAD Drawing | 90050 – 805 Mini Mixing System Standard – Drawing – No Dimensions | |
 | AIA Specifications | 90050 – 805 Mini Mixing System Standard – TEXT – AIA Specification | |
 | Spec Books | 90050 – 805 Mini Mixing System Standard – Submital Datasheet | |
 | BIM Revit File | 90050 – 805 Mini Mixing System Standard – BIM |
