911E Thermometer

911E Thermometer

Category

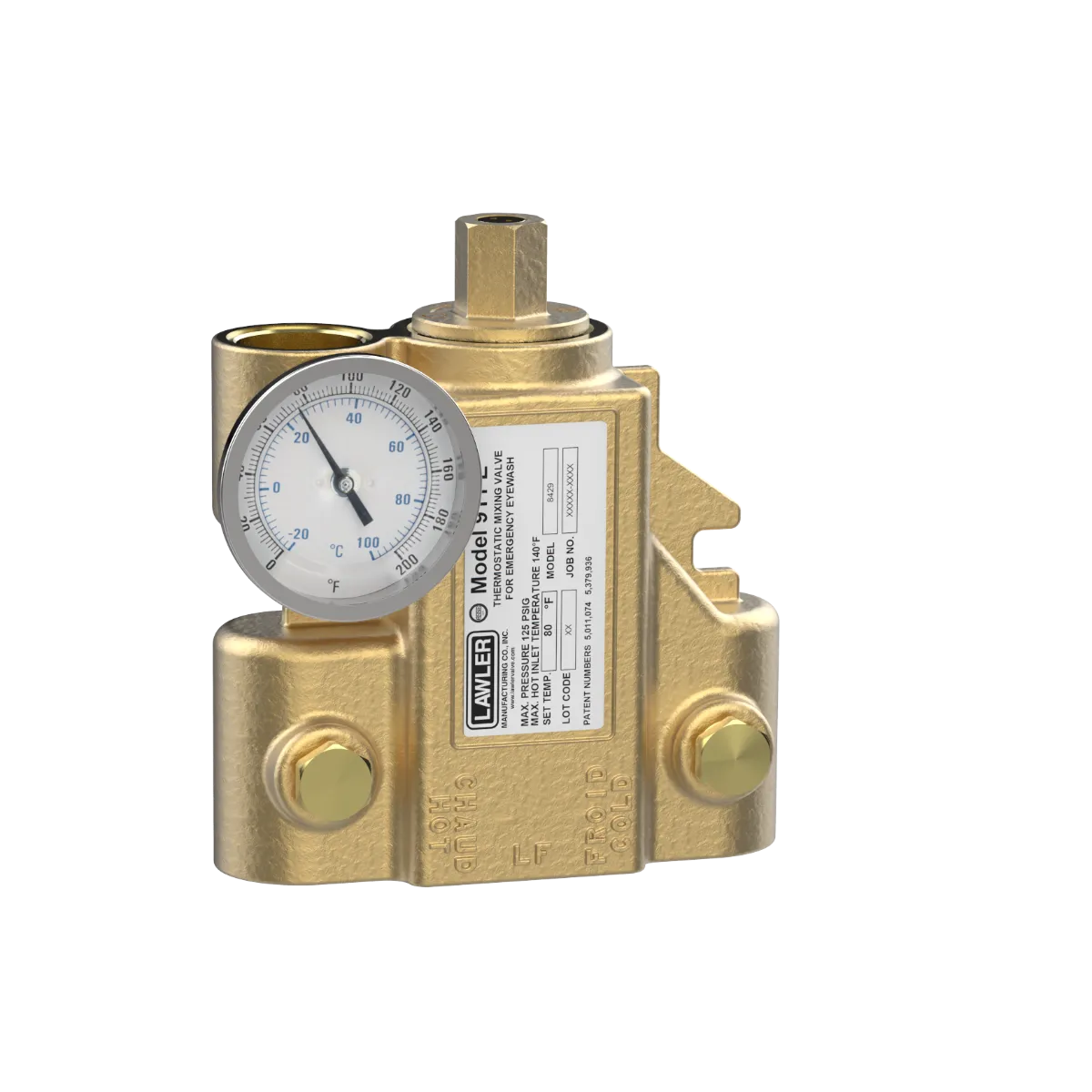

911E Emergency Shower/Eyewash Valves are specifically engineered to provide tempered water to emergency showers and eyewashes. Tempered water promotes safe and effective usage of a drench shower in an emergency situation. Lawler’s 911E Valve contains one thermostatic elements in order to provide tempered water in the event of a thermostatic failure.

Key Design Features:

Patented thermostatic element
Positive hot water shut-off
Integral cold water bypass
The Hi-Low GPM range of 2 to 25 gpm @ 30 psi is sufficient for a single eyewash or single drench shower, and meets ANSI Z358.1-2014 voluntary standards. The 911E valve can be installed into existing emergency shower application and is easily tested and repaired. The 911 is available with thermometers, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. When safety and reliability are required, specify the Lawler 911 Series.

ENG# 8429

Check out the 911E Thermometer today!

SPECIFICATIONS

Series

911

Model

911E

Configuration

Thermometer

Engineering Number

8429

Application

Emergency

Certification/s

ASSE 1071, Lead Free

Connection Type

NPT

Inlet Connection Size

1-1/4"

Outlet Connection Size

1-1/4"

Min Flow

2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

13 GPM

Rated Flow at 45 PSI

27 GPM

Temperature Range

70°F – 90°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual911E – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing8429 – 911E Thermometer – Drawing – No Dimensions
blue notebook icon
AIA Specifications8429 – 911E Thermometer – TEXT – AIA Specification
blue shapes
Spec Books8429 – 911E Thermometer – Submital Datasheet
blue protractor icon
BIM Revit File8429 – 911E Thermometer – BIM
