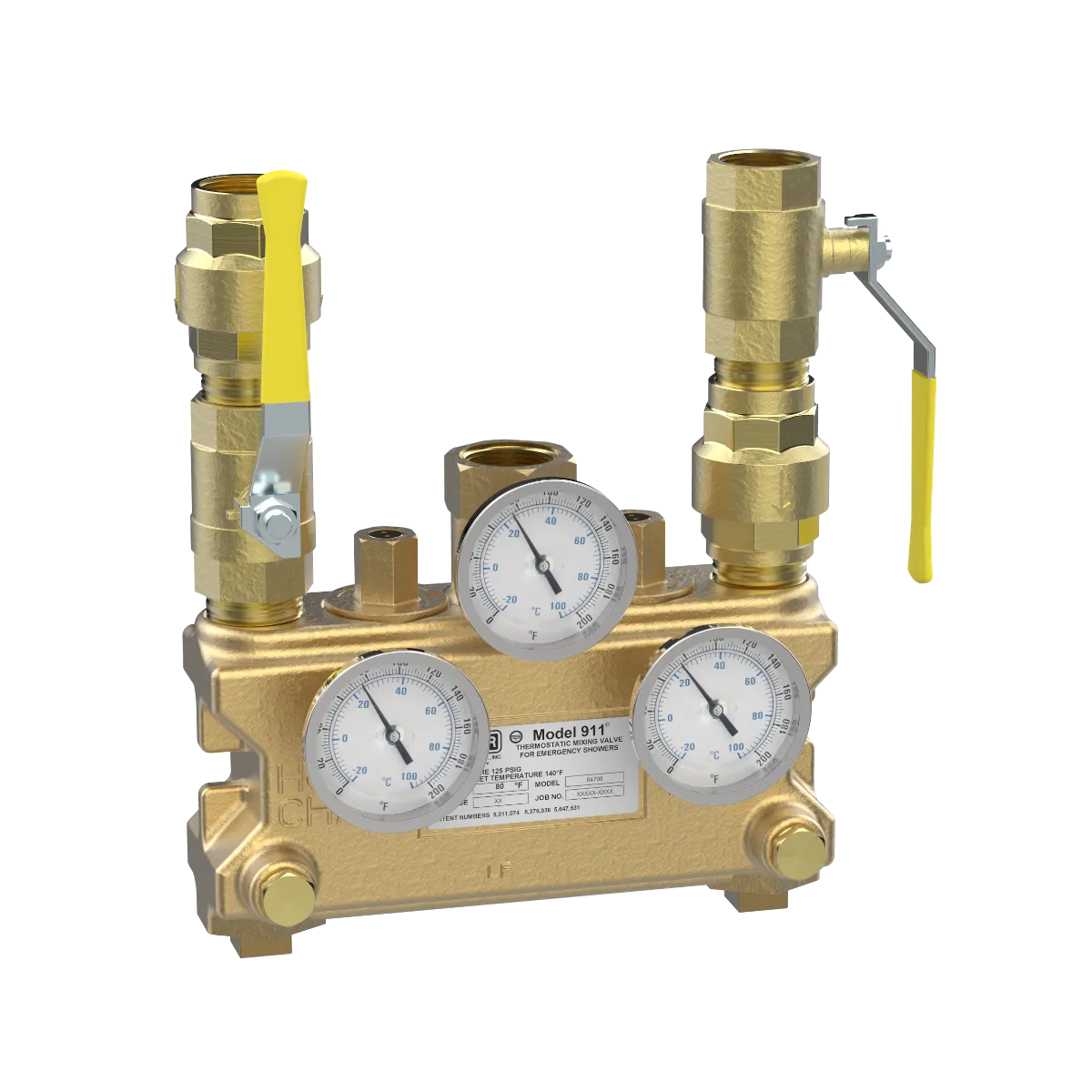

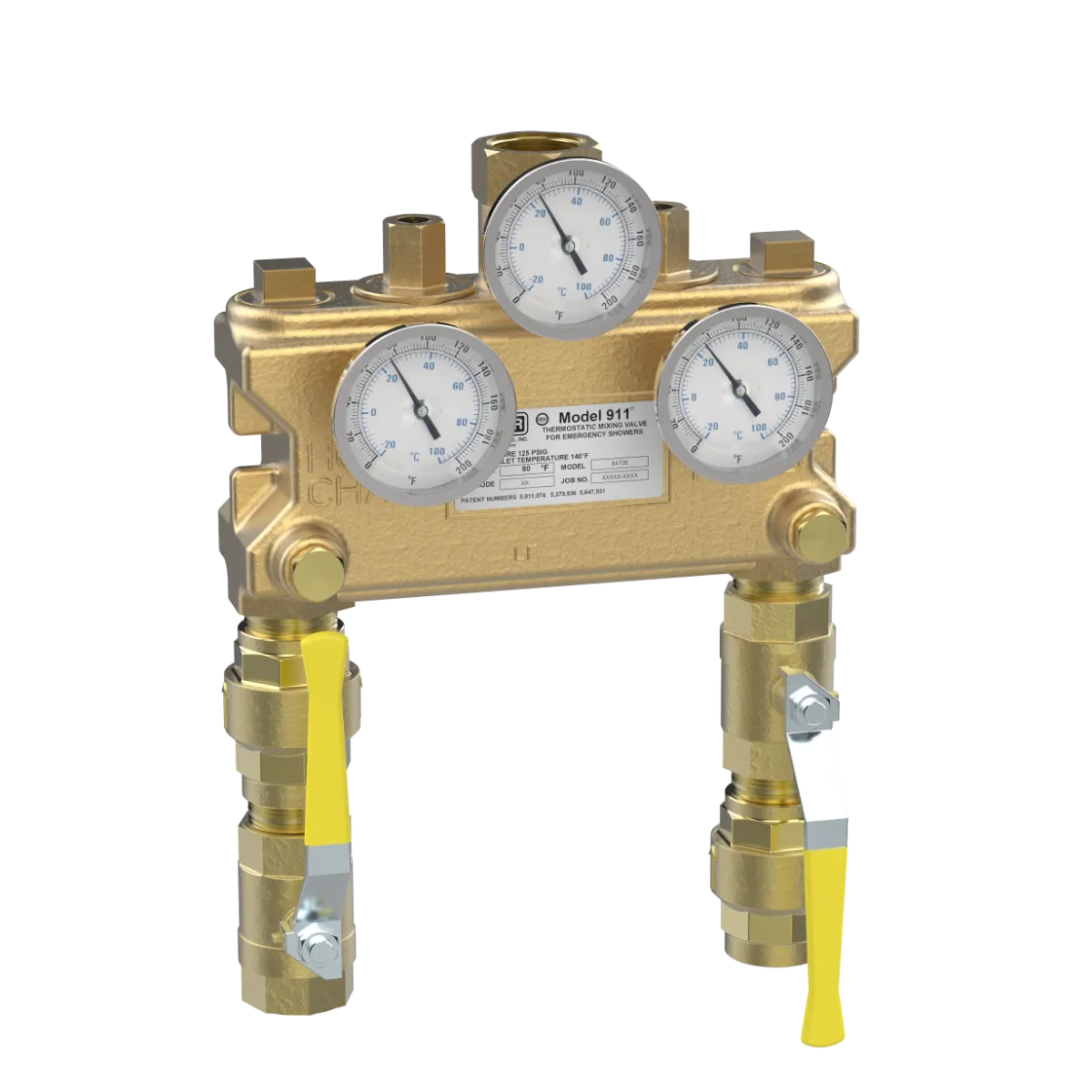

911 Thermometer with Inlet Piping
911 Thermometer with Inlet Piping
911 Emergency Shower/Eyewash Valves are specifically engineered to provide tepid water to emergency showers and eyewashes. Tempered water promotes safe and effective usage of a drench shower in an emergency situation. Lawler’s 911 Valve contains two independent thermostatic elements in order to provide tepid water in the event of a thermostatic failure.
Key Design Features:
Redundant thermostatic elements
Positive hot water shut-off
Integral cold water bypass
The Hi-Low GPM range of 2 to 60 gpm @ 30 psi is sufficient for a single eyewash or several drench showers, and meets ANSI Z358.1-2014 voluntary standards. The 911 valve can be installed into existing emergency shower application and is easily tested and repaired. The 911 is available with thermometers, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. When safety and reliability are required, specify the Lawler 911 Series.
ENG# 84708
SPECIFICATIONS
| Series | 911 |
|---|---|
| Model | 911 |
| Configuration | Thermometer with Inlet Piping |
| Engineering Number | 84708 |
| Application | Emergency |
| Certification/s | ASSE 1071, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 1-1/4" |
| Outlet Connection Size | 1-1/4" |
| Min Flow | 2 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 35 GPM |
| Rated Flow at 45 PSI | 72 GPM |
| Temperature Range | 70°F – 90°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | Spec Books | 84708 – 911 Thermometer with Inlet Piping – Submital Datasheet | |
 | CAD Drawing | 84708 – 911 Thermometer with Inlet Piping – Drawing – No Dimensions | |
 | AIA Specifications | 84708 – 911 Thermometer with Inlet Piping – TEXT – AIA Specification | |
 | BIM Revit File | 84708 – 911 Thermometer with Inlet Piping – BIM |
