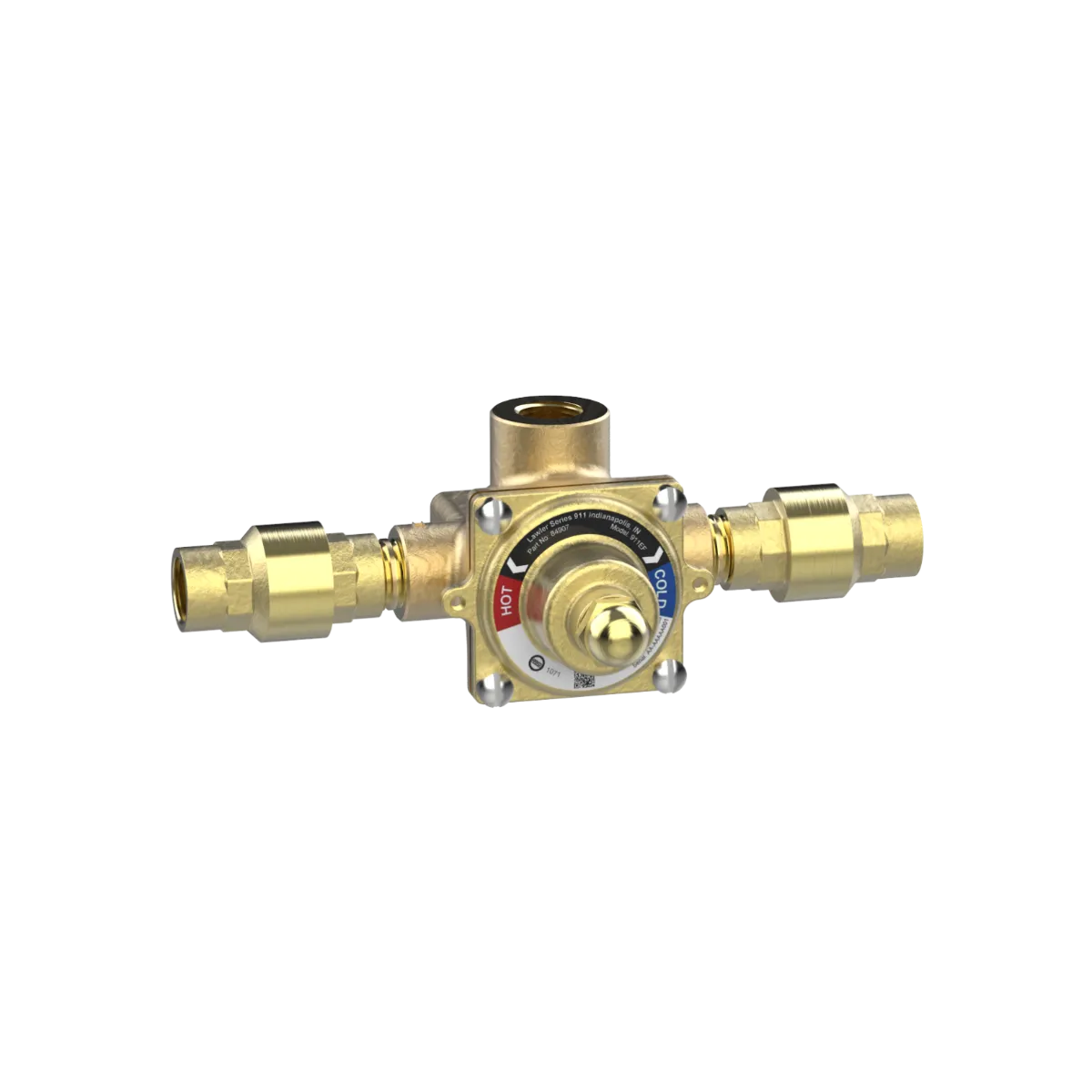

911EF Standard

911EF Standard

Category
911E/F Emergency Shower/Eyewash Valves are specifically engineered to provide tempered water to emergency eyewashes. Tempered water promotes safe and effective usage of an eyewash in an emergency situation. Lawler’s 911E/F Valve contains a by-pass in order to provide cold water in the event of a thermostatic failure. Key Design Features: Patented thermostatic elements Positive hot water shut-off Integral cold water bypass The GPM range of 2 to 7 gpm @ 30 psi is sufficient for a single eyewash, and meets ANSI Z358.1-2014 voluntary standards. The 911E/F valve can be installed into existing emergency eyewash application and is easily tested and repaired. The 911E/F is available with a thermometer, cabinet assemblies, and a choice of rough bronze or white chrome finish. When safety and reliability are required, specify the Lawler 911 Series. ENG# 84907
Check out the 911EF Standard today!

SPECIFICATIONS

Series

911

Model

911EF

Configuration

Standard

Engineering Number

84907

Application

Emergency

Certification/s

ASSE 1071, Lead Free

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

3 GPM

Rated Flow at 45 PSI

10 GPM

Temperature Range

70°F – 90°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual911EF – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue pen icon
CAD Drawing84907 – 911EF Standard – Drawing – No Dimensions
blue notebook icon
AIA Specifications84907 – 911EF Standard – TEXT – AIA Specification
blue shapes
Spec Books84907 – 911EF Standard – Submital Datasheet
blue protractor icon
BIM Revit File84907 – 911EF Standard – BIM
