911EF-ETS Standard

911EF-ETS Standard

Category

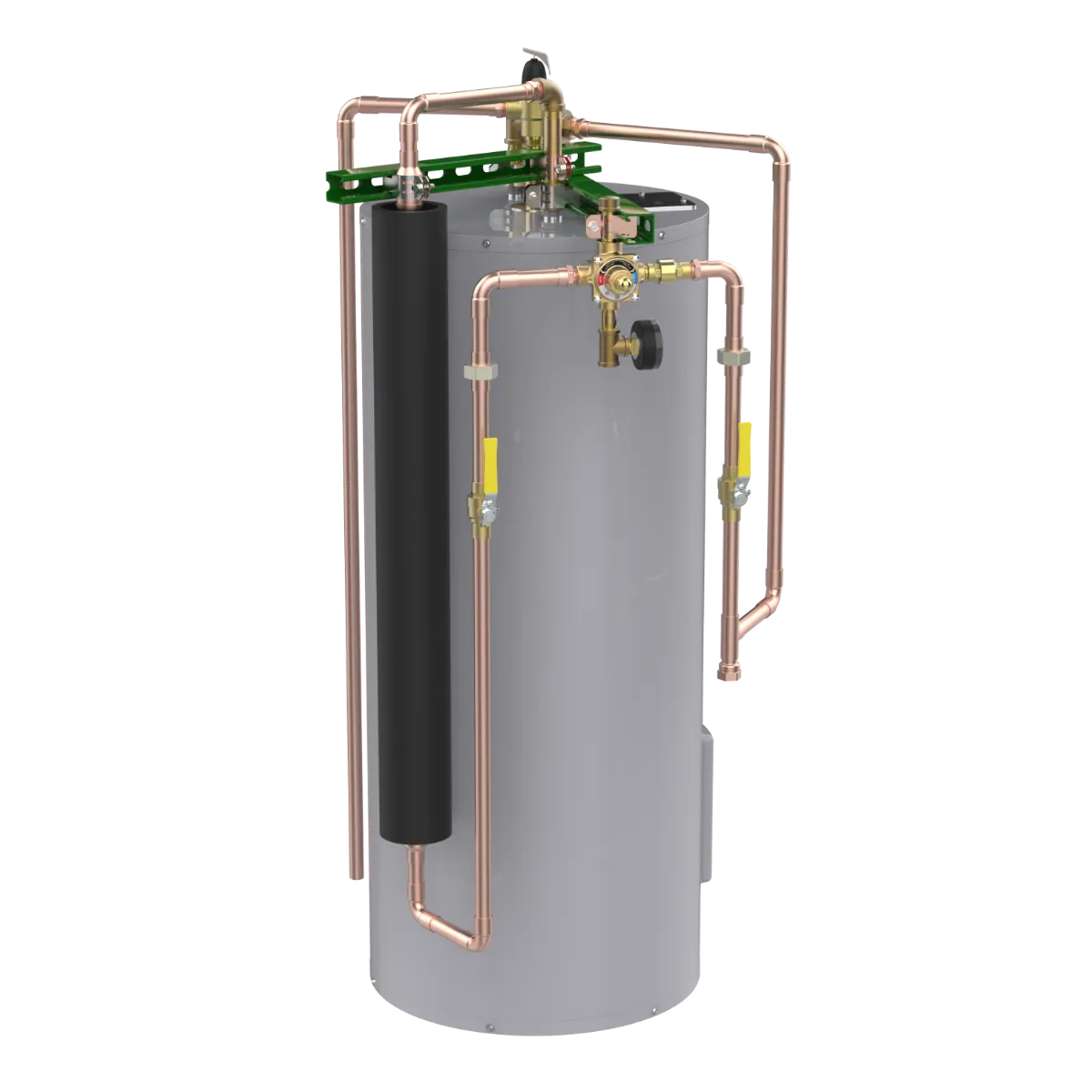

The Model 911®E/F Emergency Tepid Water System is a unique stand-alone solution that fills a critical need in the industry to economically deliver tepid water for high/low flow emergency applications.The Model 911®E ETS provides both water heating and thermostatic mixing for eyewash and eye/facewash equipment. The 911®E/F ETS incorporates Lawler’s patented 911®E/F thermostatic mixing valves offering positive hot water shut off and full flow cold water bypass together with a water heating source designed to help you meet ANSI Z358.1-2014.

ENG# 87300

SPECIFICATIONS

Series

911

Model

911EF-ETS

Configuration

Standard

Engineering Number

87300

Application

Emergency

Certification/s

ASSE 1071, Lead Free

Connection Type

Sweat

Inlet Connection Size

3/4"

Outlet Connection Size

1/2"

Min Flow

2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

3 GPM

Rated Flow at 45 PSI

10 GPM

Temperature Range

70°F – 90°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing87300 – 911EF-ETS Standard – Drawing – No Dimensions
Spec Books87300 – 911EF-ETS Standard – Submital Datasheet
BIM Revit File87300 – 911EF-ETS Standard – BIM
