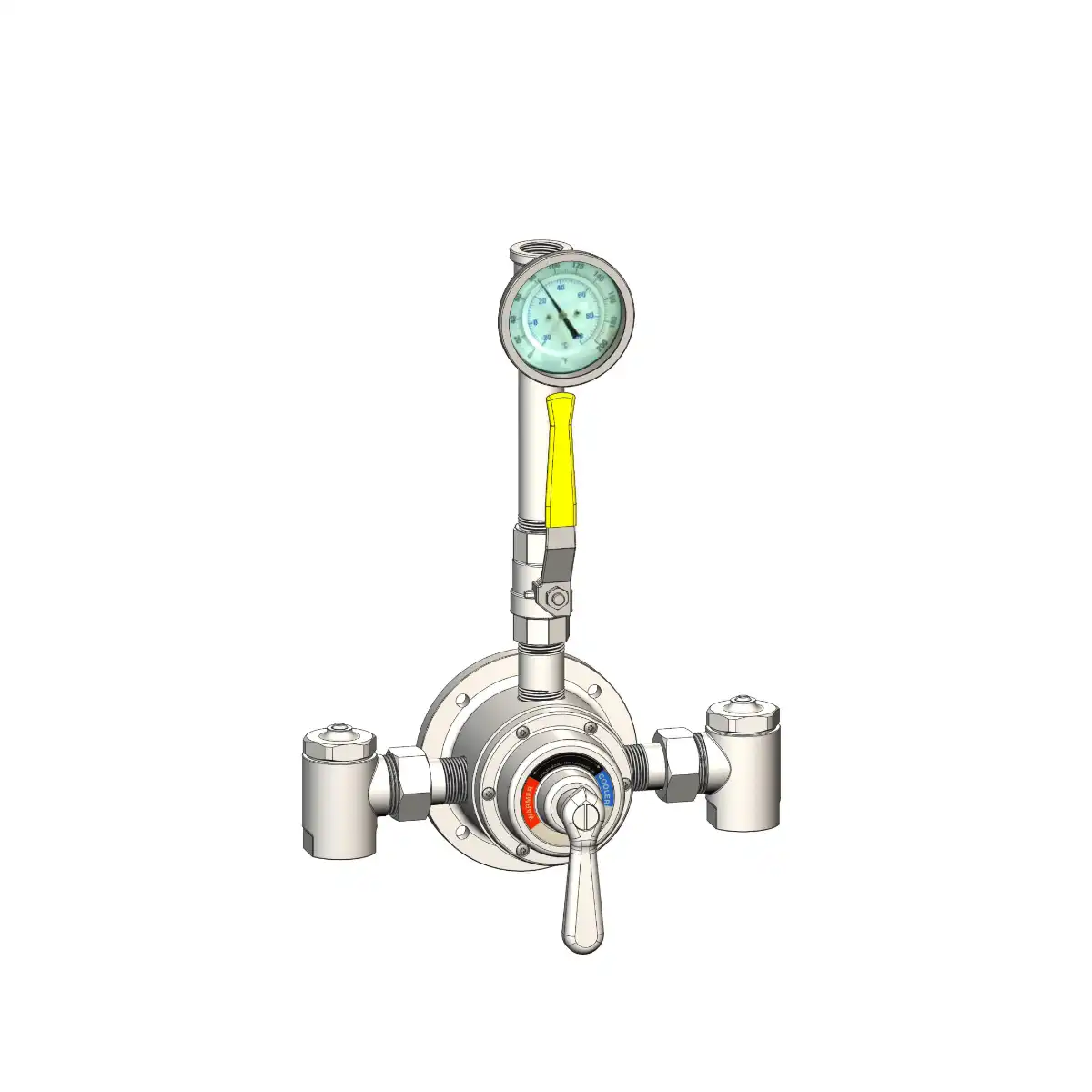

4205 Piped Thermometer Ball Valve

4205 Piped Thermometer Ball Valve

Category

The Lawler Series 4000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature, providing safe and comfortable showering. The Series 4000® features a thermostatically operated valve which protects against scalding and chilling. Lawler’s Series 4000® exposed valve body is designed with a flat wall mounting flange so the valve can be easily mounted onto a shower wall, spa tub, or cabinet assembly. The Series 4000® is available in many styles and combinations to meet field requirements in the temperature control of water, offering maximum convenience and flexibility.

ENG# 85005

Check out the 4205 Piped Thermometer Ball Valve today!

SPECIFICATIONS

Series

4000

Model

4205

Configuration

Piped Thermometer Ball Valve

Engineering Number

85005

Application

Shower

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1/2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

3-1/2 GPM

Rated Flow at 45 PSI

10 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance ManualSeries 4000 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books85005 – 4205 Piped Thermometer Ball Valve – Submital Datasheet
blue pen icon
CAD Drawing85005 – 4205 Piped Thermometer Ball Valve – Drawing – No Dimensions
blue protractor icon
BIM Revit File85005 – 4205 Piped Thermometer Ball Valve – BIM
