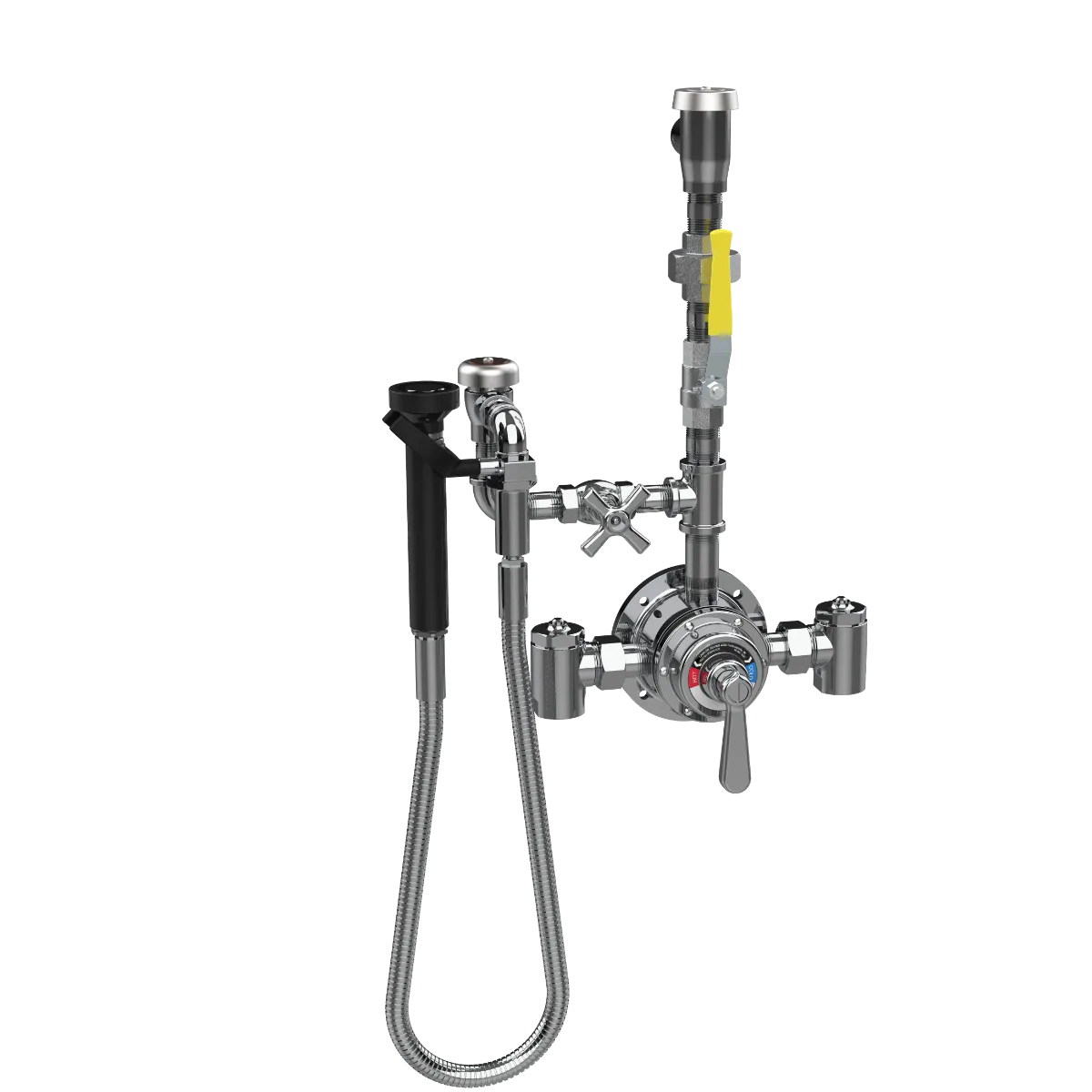

4220 Washdown

4220 Washdown

Category

The Lawler Series 4000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature, providing safe and comfortable showering. The Series 4000® features a thermostatically operated valve which protects against scalding and chilling. Lawler’s Series 4000® exposed valve body is designed with a flat wall mounting flange so the valve can be easily mounted onto a shower wall, spa tub, or cabinet assembly. The Series 4000® is available in many styles and combinations to meet field requirements in the temperature control of water, offering maximum convenience and flexibility.

ENG# 85003

Check out the 4220 Washdown today!

SPECIFICATIONS

Series

4000

Model

4220

Configuration

Washdown

Engineering Number

85003

Application

Shower

Connection Type

NPT

Inlet Connection Size

3/4"

Outlet Connection Size

3/4"

Min Flow

1 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

8 GPM

Rated Flow at 45 PSI

20 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance ManualSeries 4000 – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books85003 – 4220 Washdown – Submital Datasheet
blue pen icon
CAD Drawing85003 – 4220 Washdown – Drawing – No Dimensions
blue protractor icon
BIM Revit File85003 – 4220 Washdown – BIM
