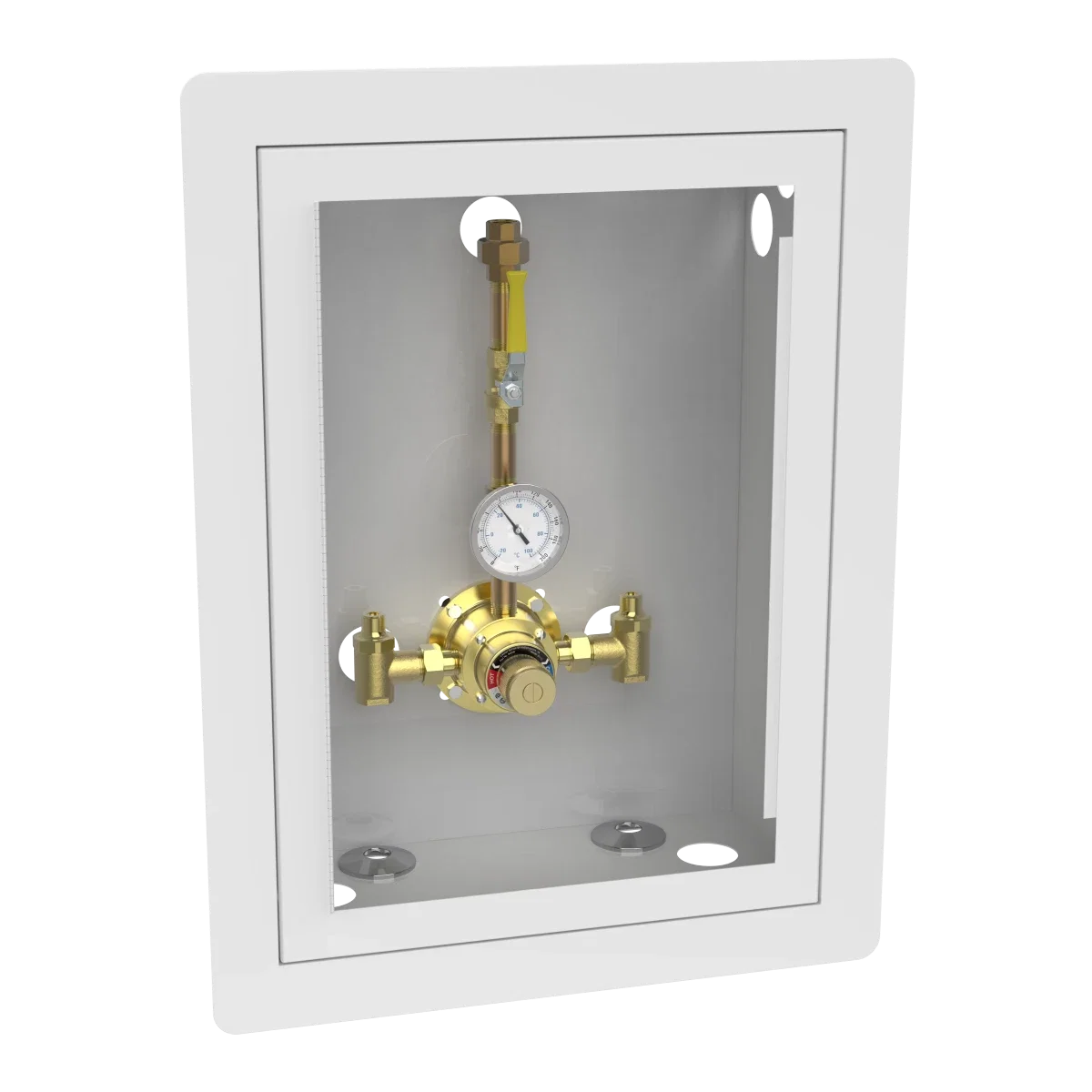

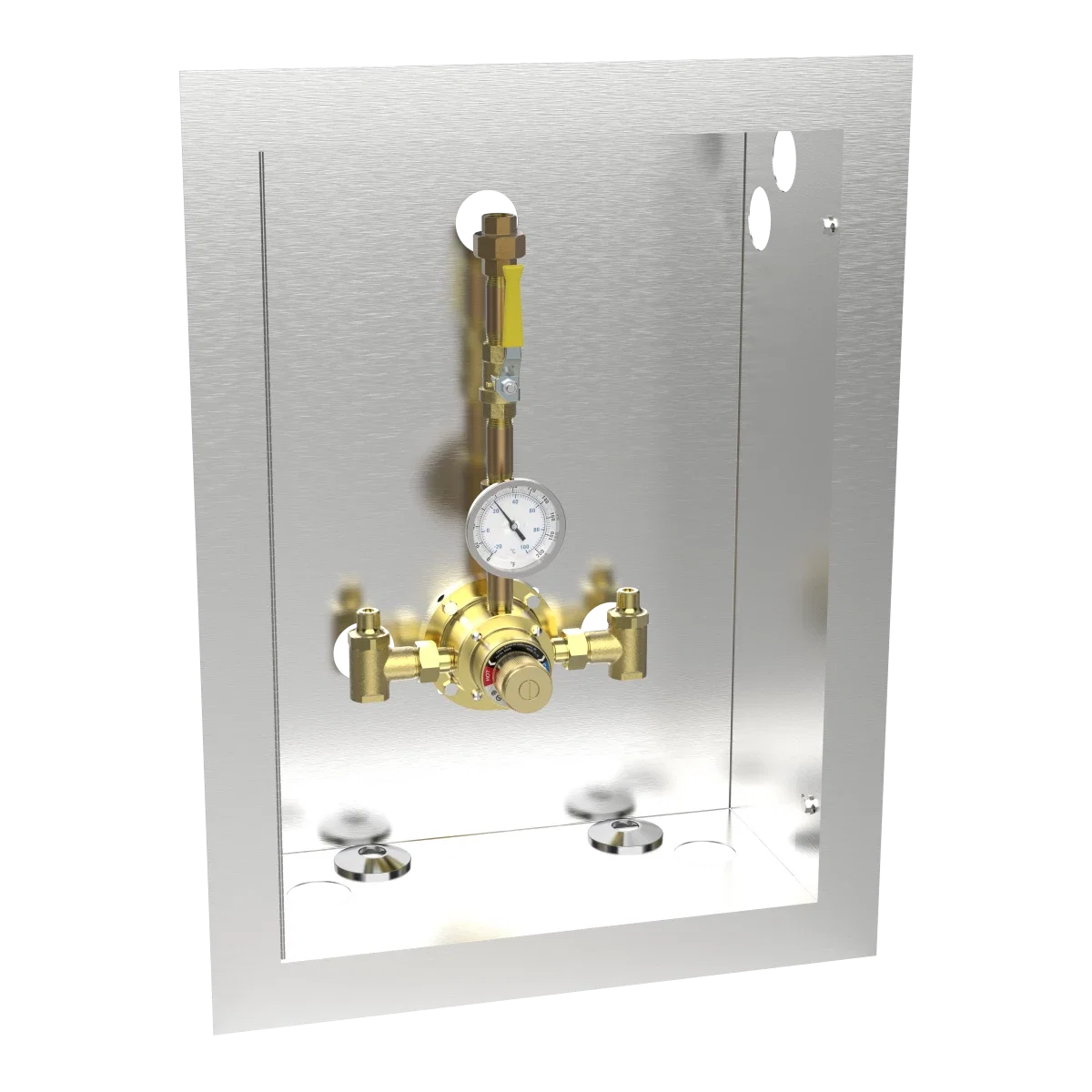

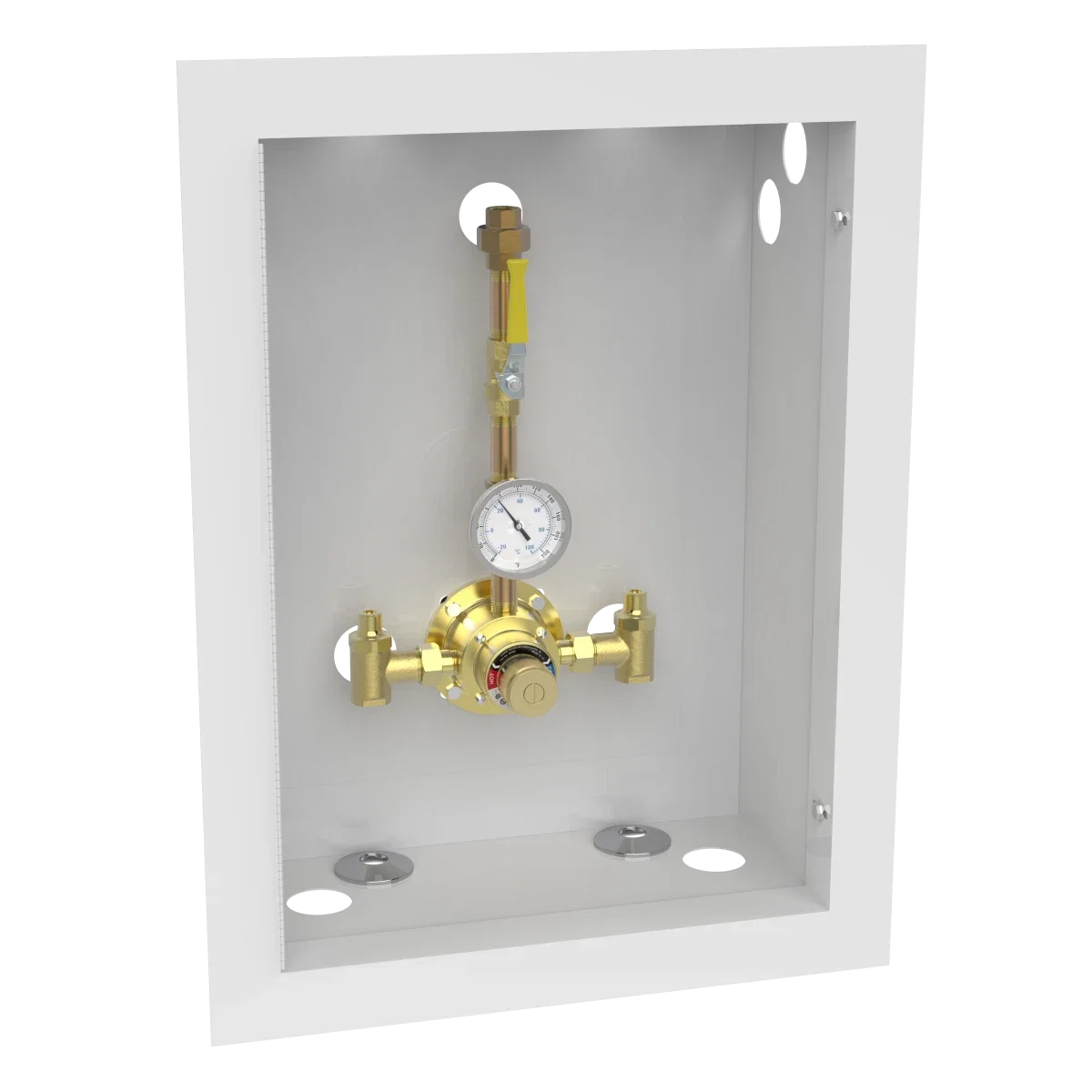

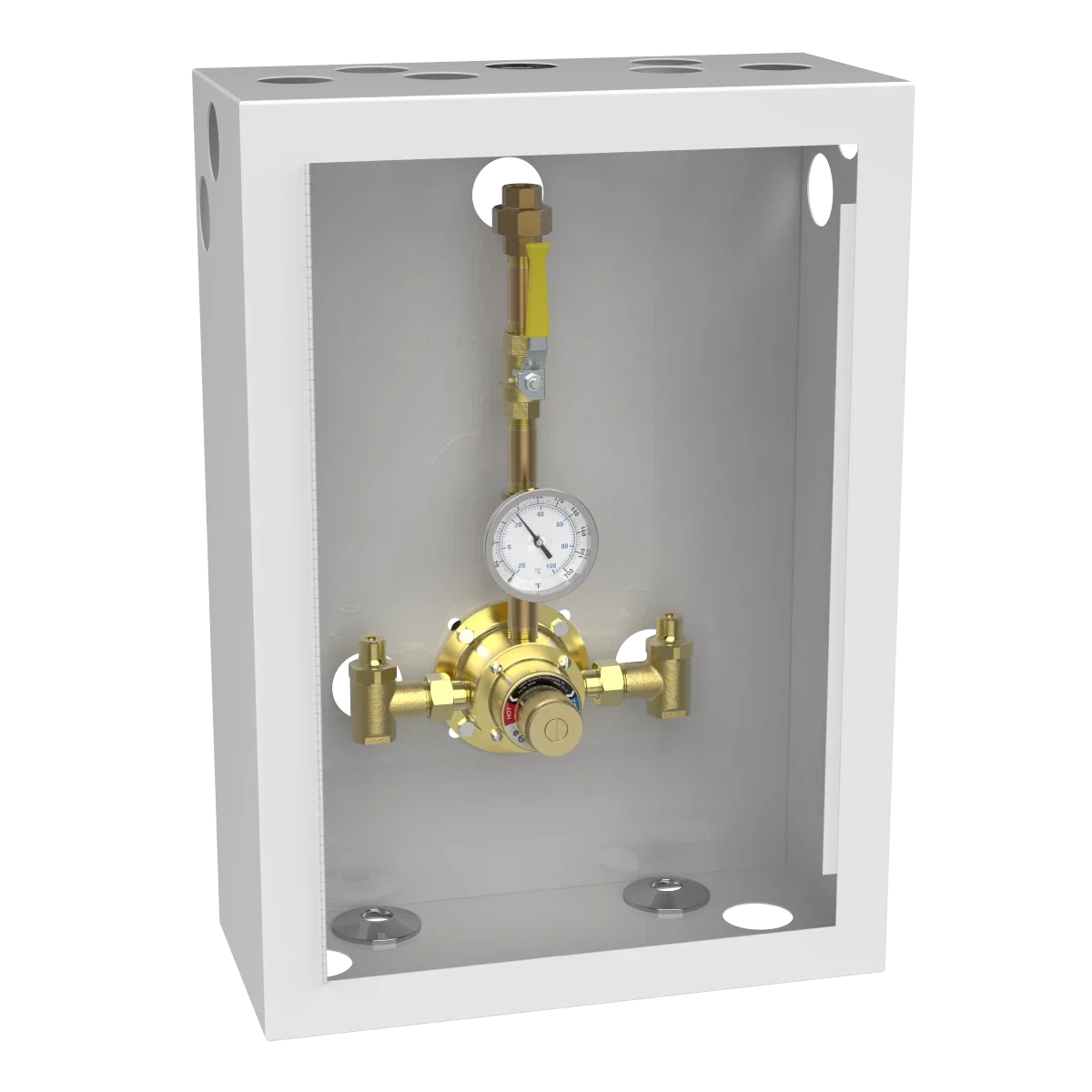

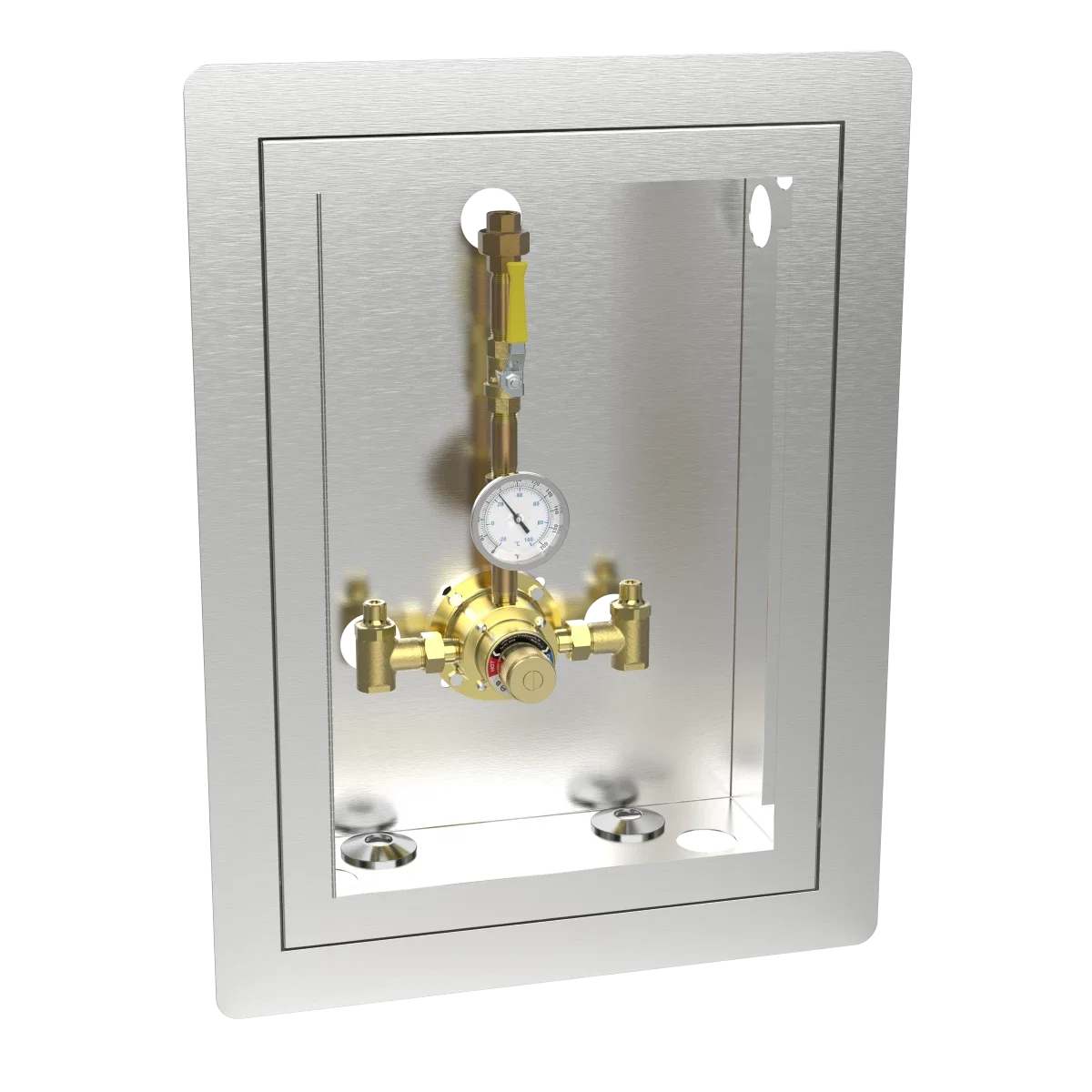

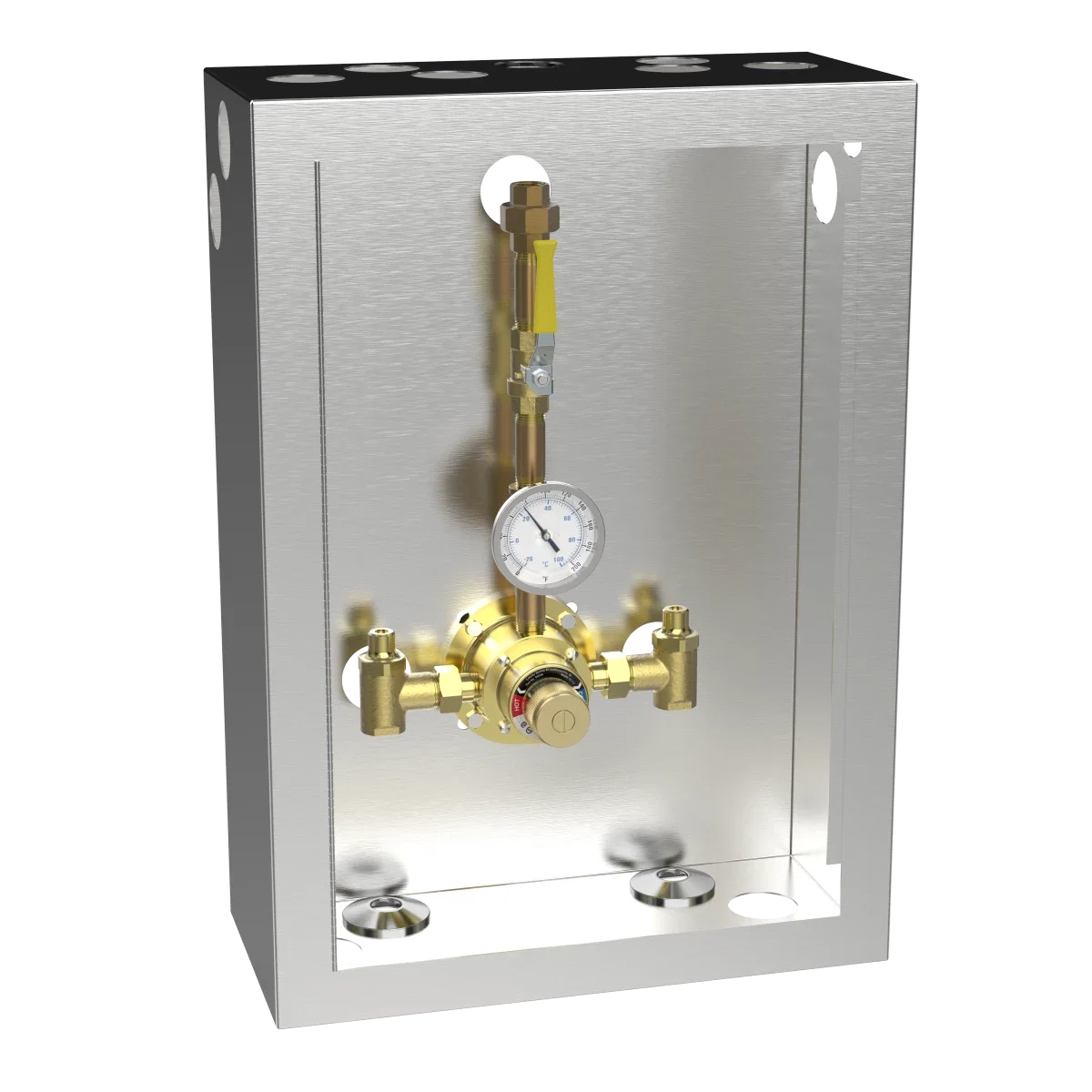

6110 Piped Thermometer Ball Valve Union Cabinet
6110 Piped Thermometer Ball Valve Union Cabinet
Lawler’s Model 61® is an effective solution for specifiers who want Lawler’s exclusive Three-Way Protection™ in a small capacity master controller. The 61® helps engineers “right-size” the valve for low-to-mid range applications (½-25 GPM) without sacrificing performance. Before the 61® became available, standard larger valves simply could not satisfactorily control temperatures at low flows. Now with Three-Way Protection™, the small master controller Model 61® delivers protection against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. That means Model 61®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.
Note: Lawler is also able to install the Model 61 in a pre-piped recirculation system to provide you with one complete system that is pre-piped, pre-installed, and pre-tested. (See Spec Sheet below labeled “6125 ManRecSys-LeadFree”)
ENG# 84008
Find This Product
Enter your US zip code OR Canadian province abbreviation below to find your local Lawler Representative
SPECIFICATIONS
| Series | 61 |
|---|---|
| Model | 6110 |
| Configuration | Piped Thermometer Ball Valve Union |
| Engineering Number | 84008 |
| Application | Master Controller |
| Certification/s | ASSE 1017, CSA B125.3 |
| Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Outlet Connection Size | 1/2" |
| Min Flow | 1/2 GPM |
| Min Flow with Recirculation | 1/4 GPM |
| Rated Flow at 10 PSI | 3-1/2 GPM |
| Rated Flow at 45 PSI | 10 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Polished Chrome, Rough Brass |
| Cabinet Mounting | Exposed, Recessed, Semi-Recessed |
| Cabinet Finish | Baked White Enamel, Stainless Steel |
