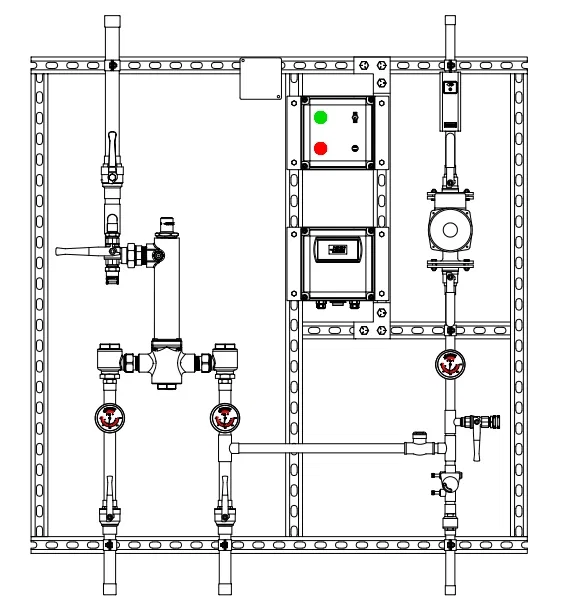

802 Mixing System with Remote Monitoring System Basic

802 Mixing System with Remote Monitoring System Basic

Lawler’s 802 recirculation system with the basic remote monitoring system has all of the benefits of a Lawler recirculation system with the added ability to give your end user robust remote monitoring and local control of the hot water and recirculation systems. The basic system offers the ability to monitor the outlet temperature on the recirculation system. The basic system also offers remote alarm capabilities. Additionally, in the event of a power outage the (insert model #) will still provide tempered water throughout the system providing additional protection for the end user along with the “Three-Way Protection” the valve provides.

ENG# 86601

Check out the 802 Mixing System with Remote Monitoring System Basic today!

SPECIFICATIONS

Series

800

Model

802

Configuration

Mixing System with Remote Monitoring System Basic

Engineering Number

86601

Application

Master Controller, Mixing System

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

1"

Outlet Connection Size

1-1/4"

Min Flow

2 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

39 GPM

Rated Flow at 45 PSI

80 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual802 – Installation and Maintenance Manual
