803 Parallel Installation

803 Parallel Installation

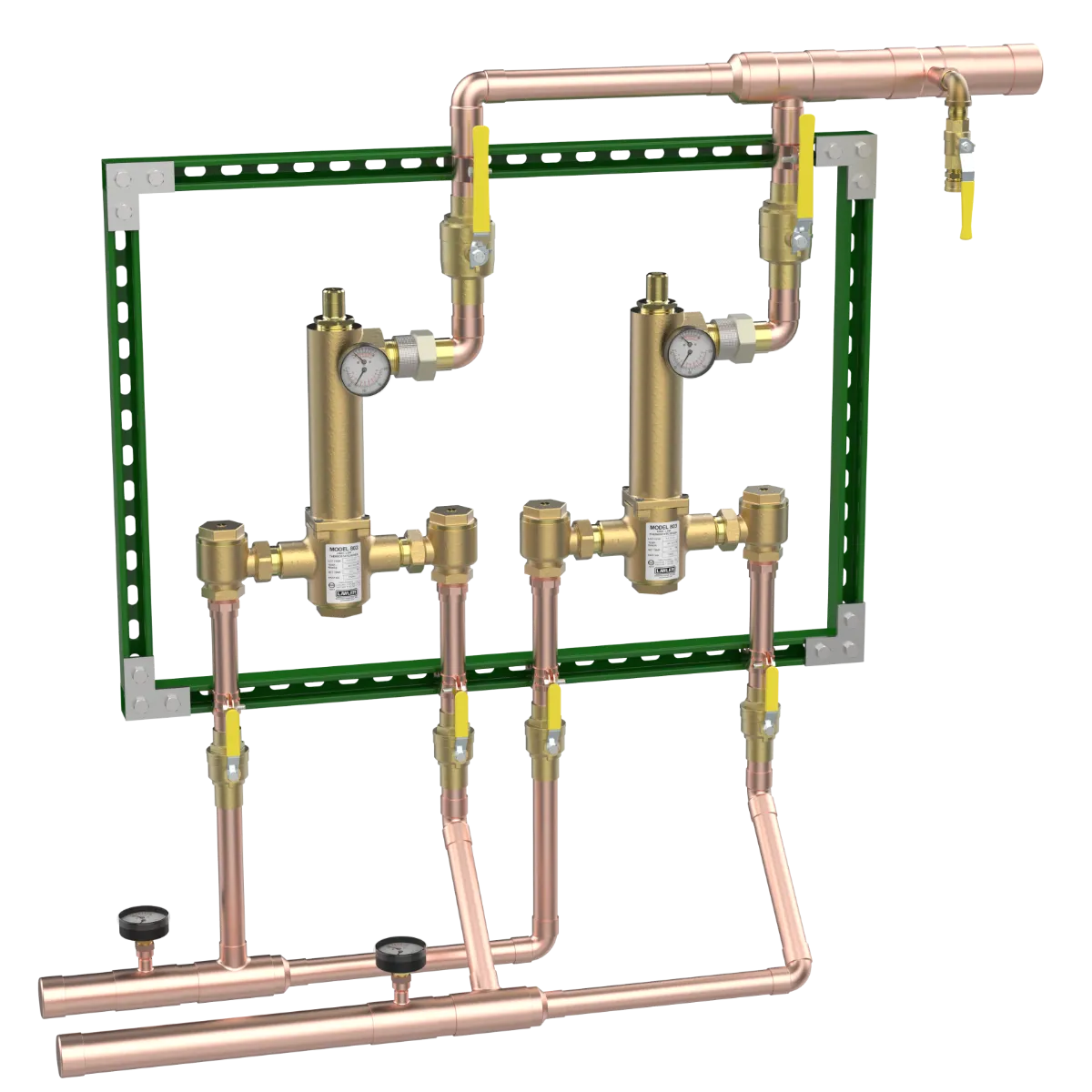

Lawler’s patented Series 800 high-low master controller technology offers a unique solution when designing for high-capacity systems. This pre-piped, factory tested parallel system can meet your need for increased capacity or for a redundant system in applications where the domestic hot water system cannot be interrupted. Lawler’s Pre-Piped Double Parallel System is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.

ENG# 86614

SPECIFICATIONS

Series

800

Model

803

Configuration

Parallel Installation

Engineering Number

86614

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3, Lead Free

Connection Type

Sweat

Inlet Connection Size

2"

Outlet Connection Size

2-1/2"

Min Flow

6 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

120 GPM

Rated Flow at 45 PSI

250 GPM

Temperature Range

110°F – 140°F, 70°F – 100°F, 90°F – 120°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing86614 – 803 Parallel Installation – Drawing – No Dimensions
AIA Specifications86614 – 803 Parallel Installation – TEXT – AIA Specification
Spec Books86614 – 803 Parallel Installation – Submital Datasheet
BIM Revit File86614 – 803 Parallel Installation – BIM
