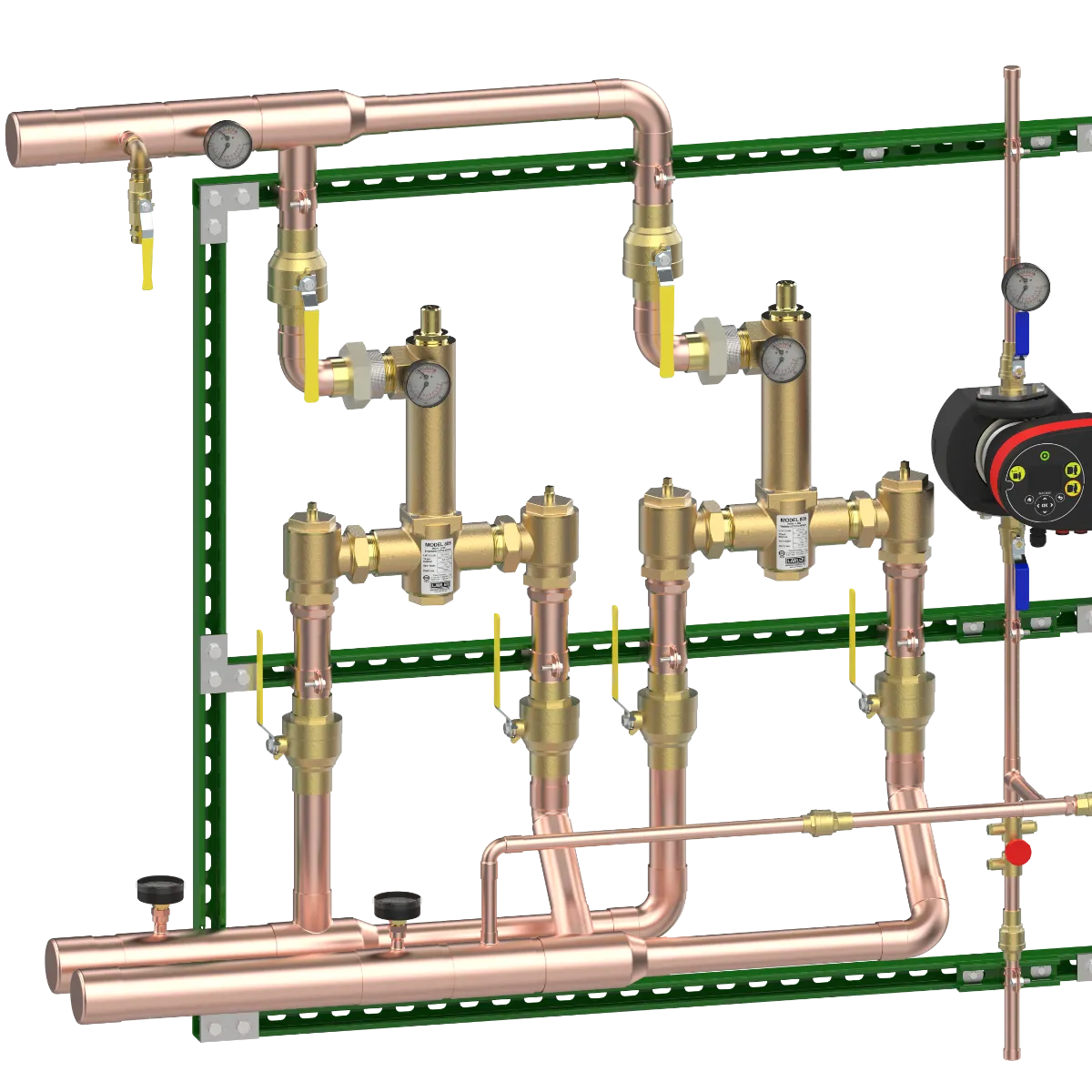

Lawler’s 805 mini parallel manifold system for recirculation provides either the high-capacity or redundancy the end user is requiring on a smaller frame for those applications that have space constraints, but requires either high-capacity or redundancy. Lawler’s manifold per-piped recirculation systems offer engineers a pre-piped solution to solve jobsite challenges when installing mixing valves in a recirculated system. Lawler’s 800 Series high-low master controllers increase the performance and cost effectiveness of this pre-piped system by controlling both high and low flows while providing Three-Way Protection. System includes (insert model 3) high-low thermostatic mixing valve, engineer specified recirculation pump, circuit setting balancing valve, thermometers, check valves, ball valves and mounting strut. This complete solution is a part of Lawler’s Power of One pre-piped, pre-packaged, pre-tested systems intended to give you one point of design and one point of accountability.
ENG# 90250
SPECIFICATIONS
Series | 800 |
---|---|
Model | 805 |
Configuration | Mini Parallel Mixing System Standard |
Engineering Number | 90250 |
Application | Master Controller, Mixing System |
Certification/s | ASSE 1017, CSA B125.3, Lead Free |
Connection Type | Sweat |
Inlet Connection Size | 2" |
Outlet Connection Size | 2" |
Min Flow | 5 GPM |
Min Flow with Recirculation | 1/2 GPM |
Rated Flow at 10 PSI | 96 GPM |
Rated Flow at 45 PSI | 200 GPM |
Temperature Range | 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
