911E-ETS Standard

911E-ETS Standard

Category

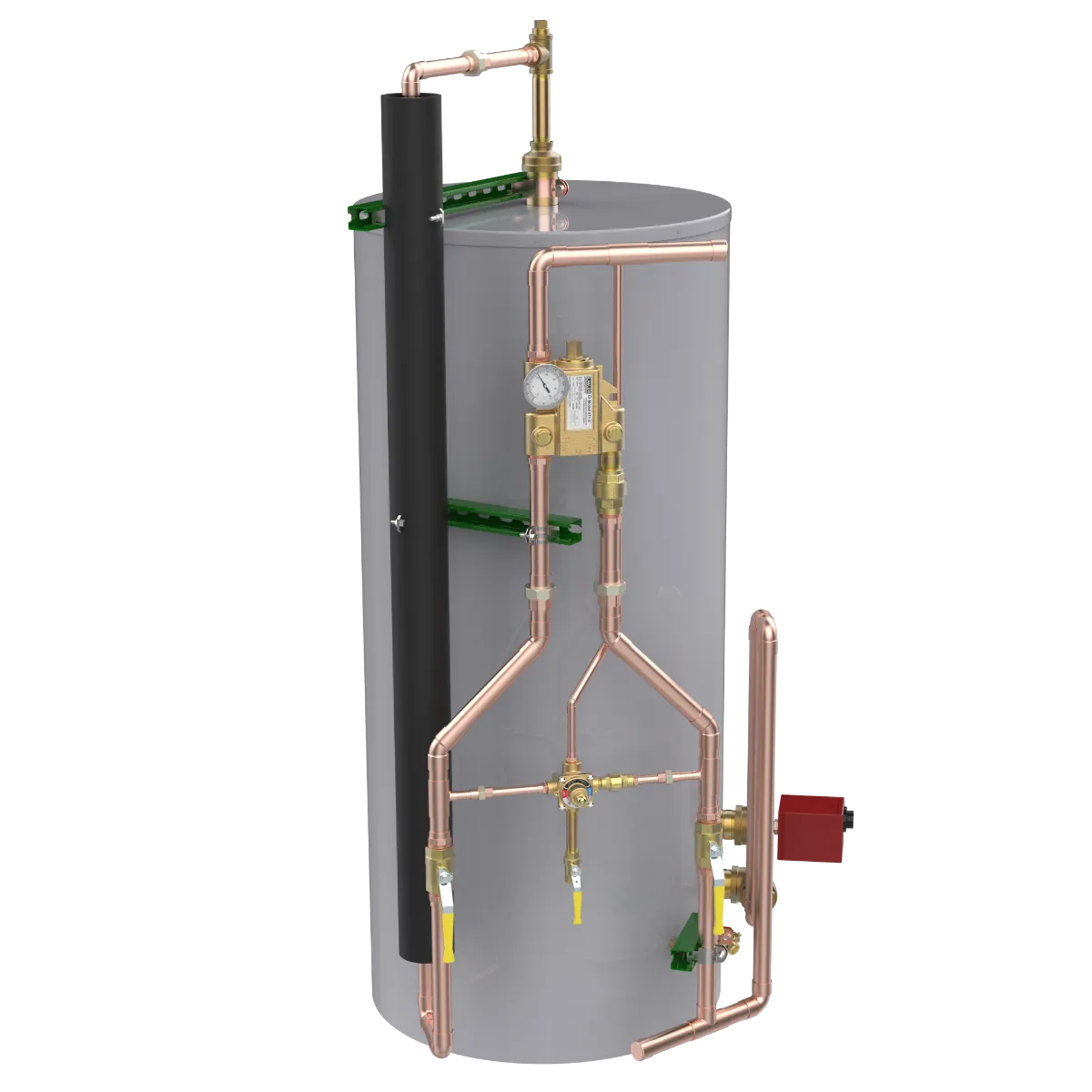

The Model 911®E Emergency Tepid Water System is a unique stand-alone solution that fills a critical need in the industry to economically deliver tepid water for high/low flow emergency applications.The Model 911®E ETS provides both water heating and thermostatic mixing for combination shower and eyewash equipment. The 911®E ETS incorporates Lawler’s patented 911®E and 911®E/F thermostatic mixing valves offering positive hot water shut off and full flow cold water bypass together with a water heating source designed to help you meet ANSI Z358.1-2014.

ENG# 87200

SPECIFICATIONS

Series

911

Model

911E-ETS

Configuration

Standard

Engineering Number

87200

Application

Emergency

Certification/s

ASSE 1071, Lead Free

Connection Type

Sweat

Inlet Connection Size

1-1/4"

Outlet Connection Size

1-1/4"

Min Flow

2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

16 GPM

Rated Flow at 45 PSI

37 GPM

Temperature Range

70°F – 90°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass
