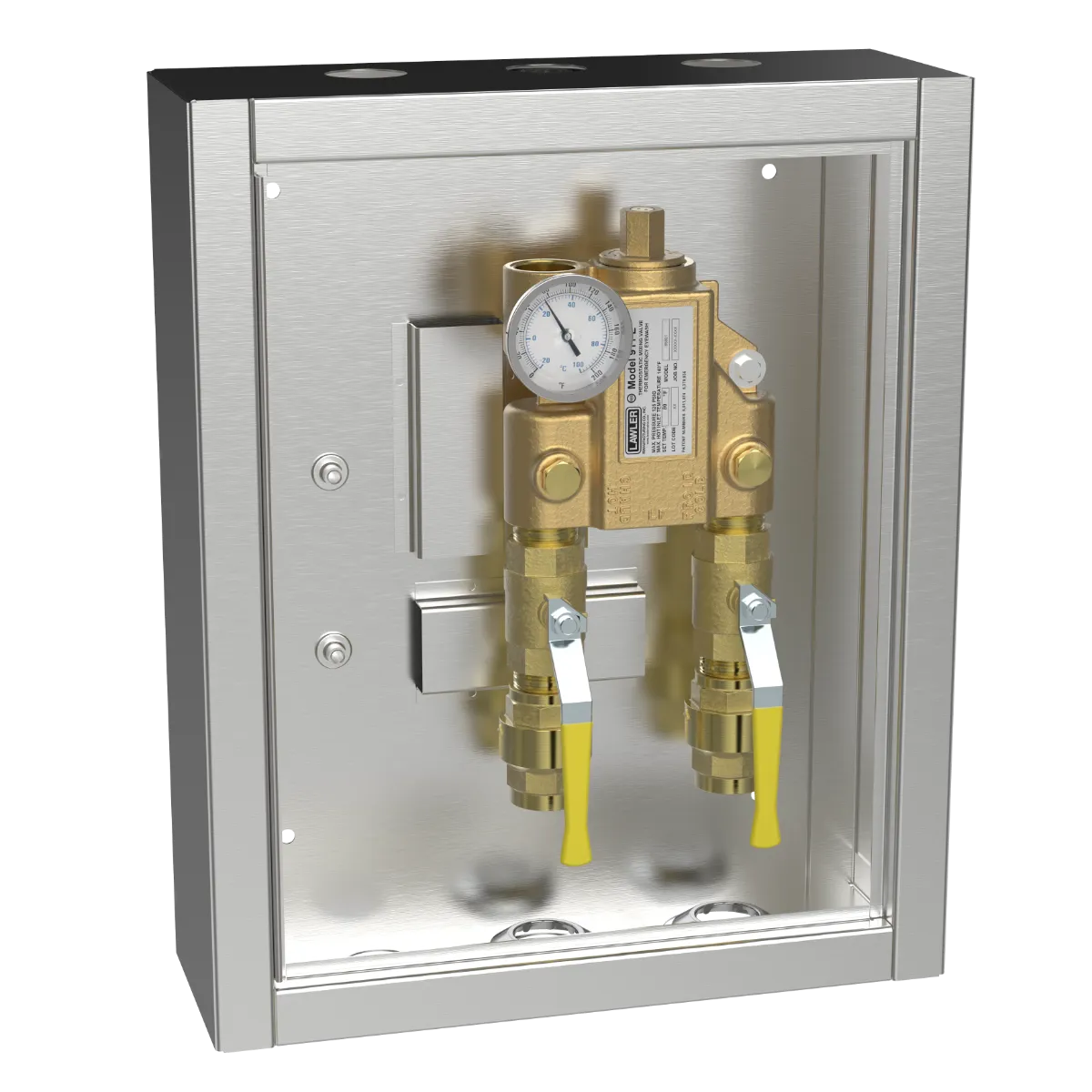

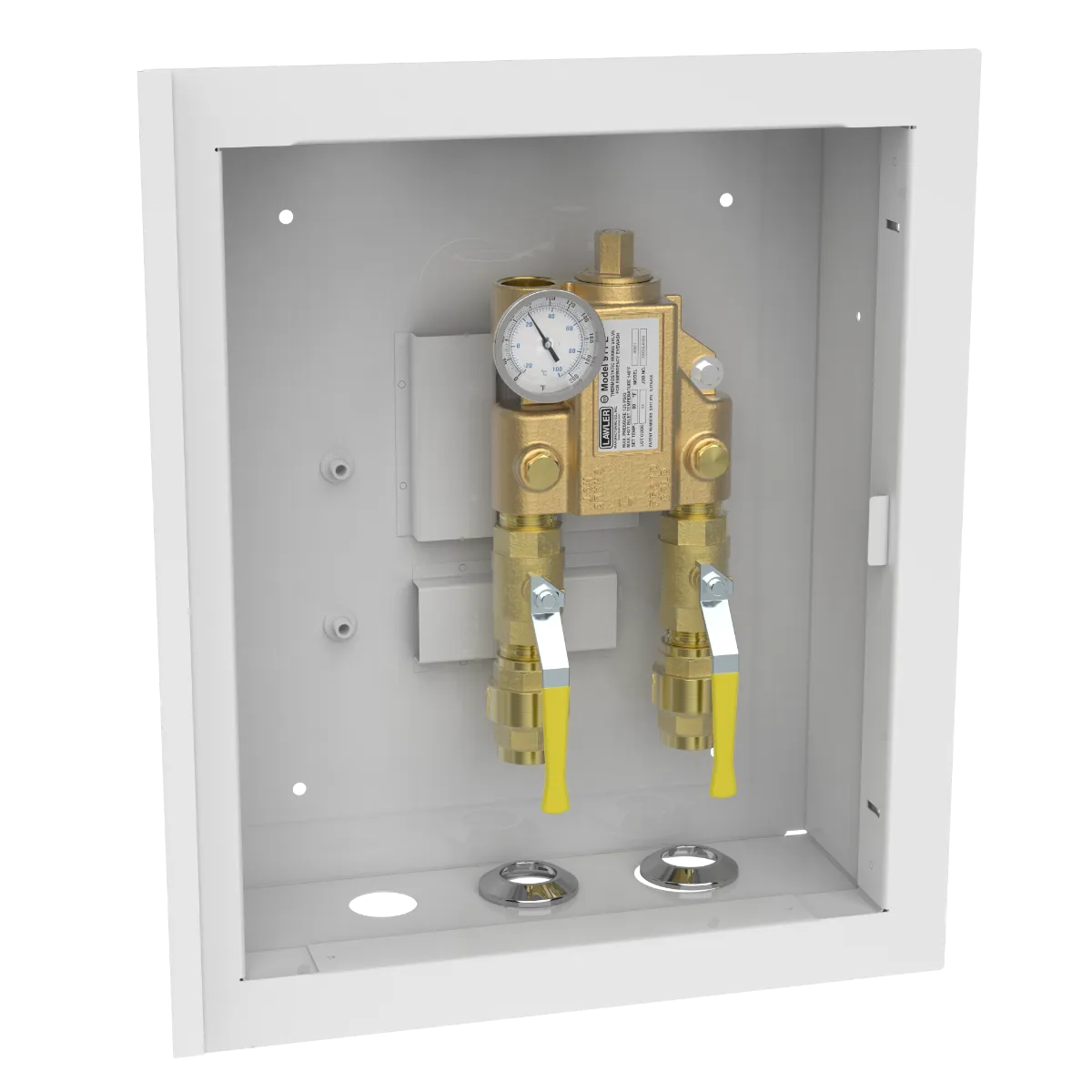

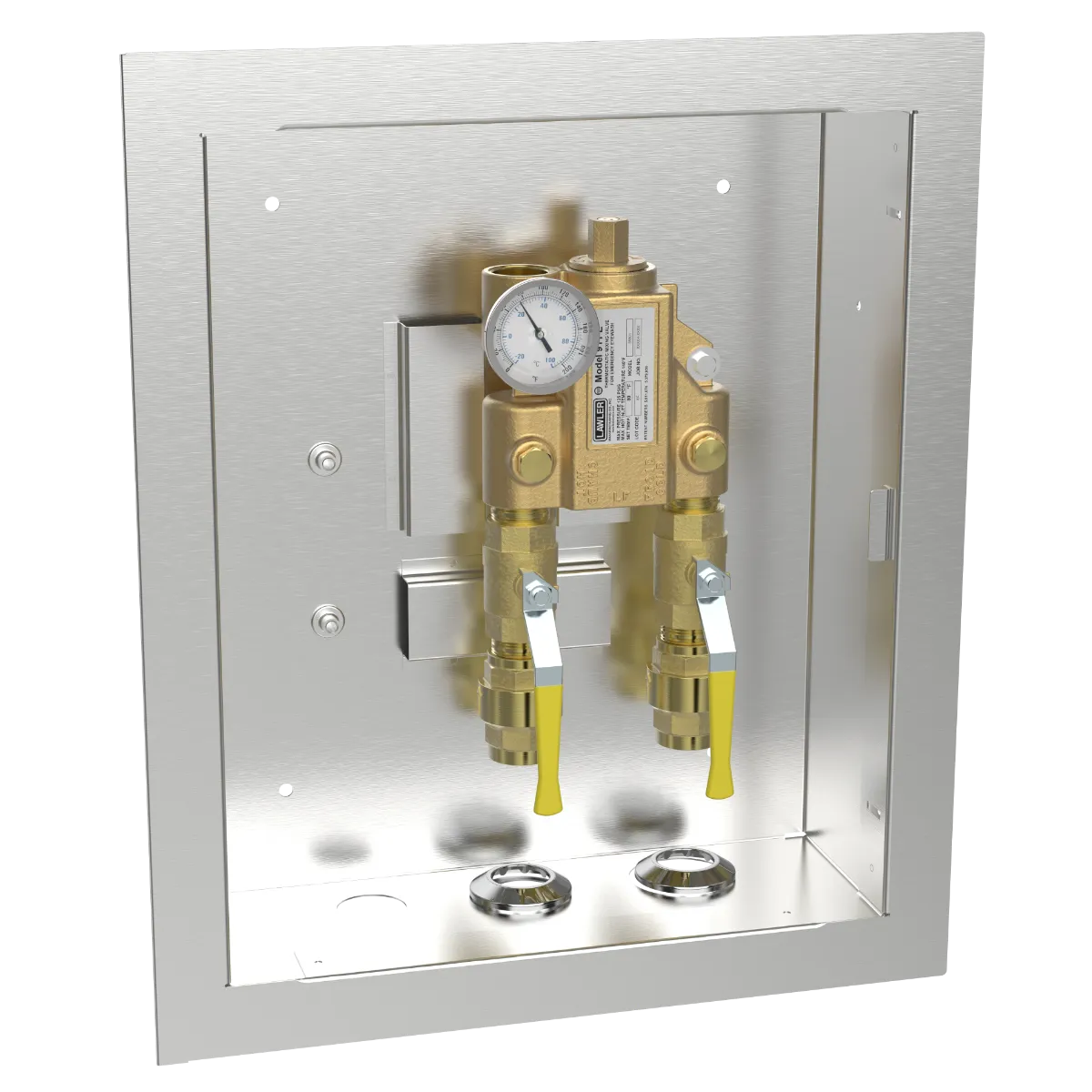

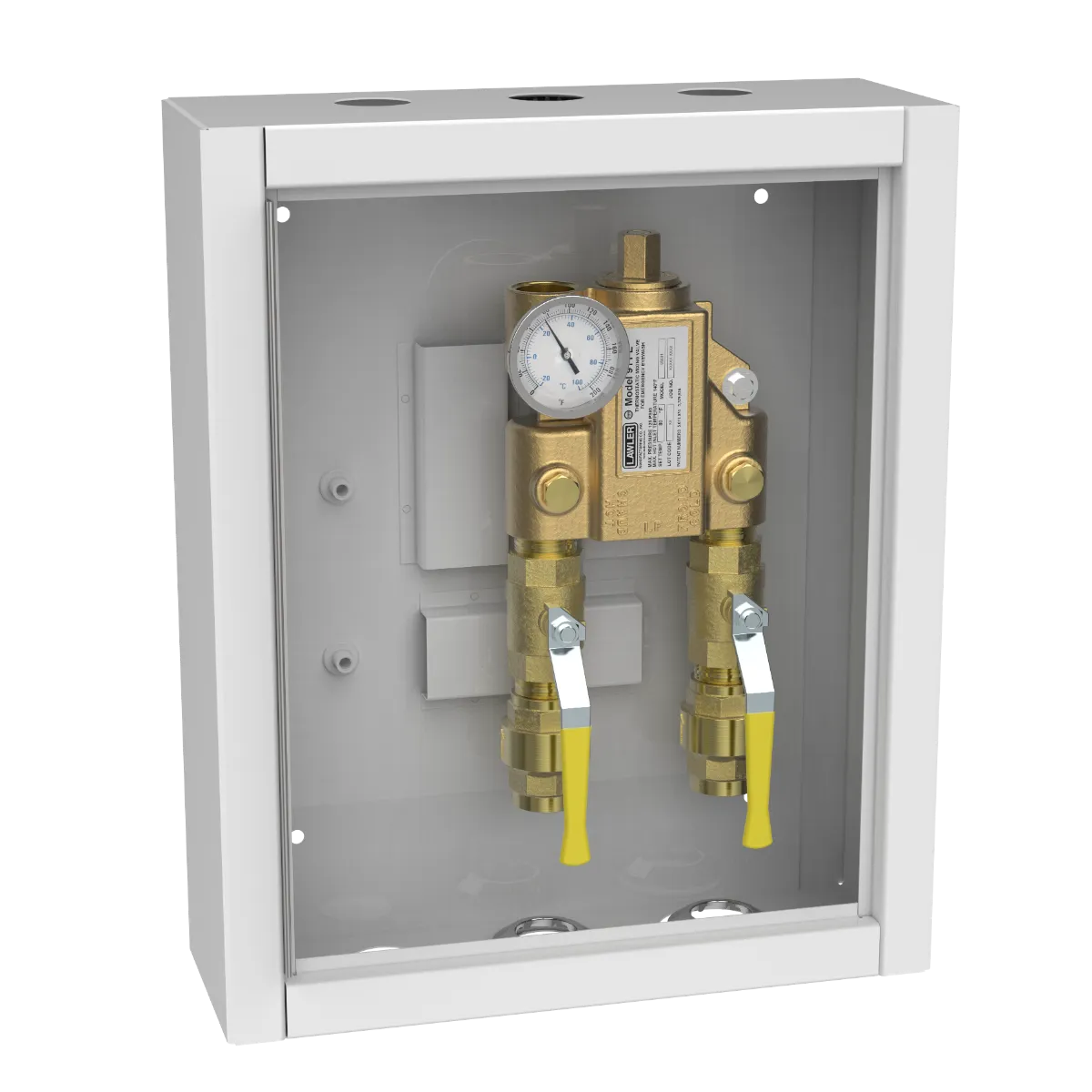

911E Thermometer with Inlet Piping Cabinet
911E Thermometer with Inlet Piping Cabinet
911E Emergency Shower/Eyewash Valves are specifically engineered to provide tempered water to emergency showers and eyewashes. Tempered water promotes safe and effective usage of a drench shower in an emergency situation. Lawler’s 911E Valve contains one thermostatic elements in order to provide tempered water in the event of a thermostatic failure.
Key Design Features:
Patented thermostatic element
Positive hot water shut-off
Integral cold water bypass
The Hi-Low GPM range of 2 to 25 gpm @ 30 psi is sufficient for a single eyewash or single drench shower, and meets ANSI Z358.1-2014 voluntary standards. The 911E valve can be installed into existing emergency shower application and is easily tested and repaired. The 911 is available with thermometers, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. When safety and reliability are required, specify the Lawler 911 Series.
ENG# 85801
Find This Product
Enter your US zip code OR Canadian province abbreviation below to find your local Lawler Representative
SPECIFICATIONS
| Series | 911 |
|---|---|
| Model | 911E |
| Configuration | Thermometer with Inlet Piping |
| Engineering Number | 85801 |
| Application | Emergency |
| Certification/s | ASSE 1071, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 1-1/4" |
| Outlet Connection Size | 1-1/4" |
| Min Flow | 2 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 13 GPM |
| Rated Flow at 45 PSI | 27 GPM |
| Temperature Range | 70°F – 90°F |
| Finish | Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass |
| Cabinet Mounting | Exposed, Recessed, Semi-Recessed |
| Cabinet Finish | Baked White Enamel, Stainless Steel |
