TMM-1070 Standard

TMM-1070 Standard

Category

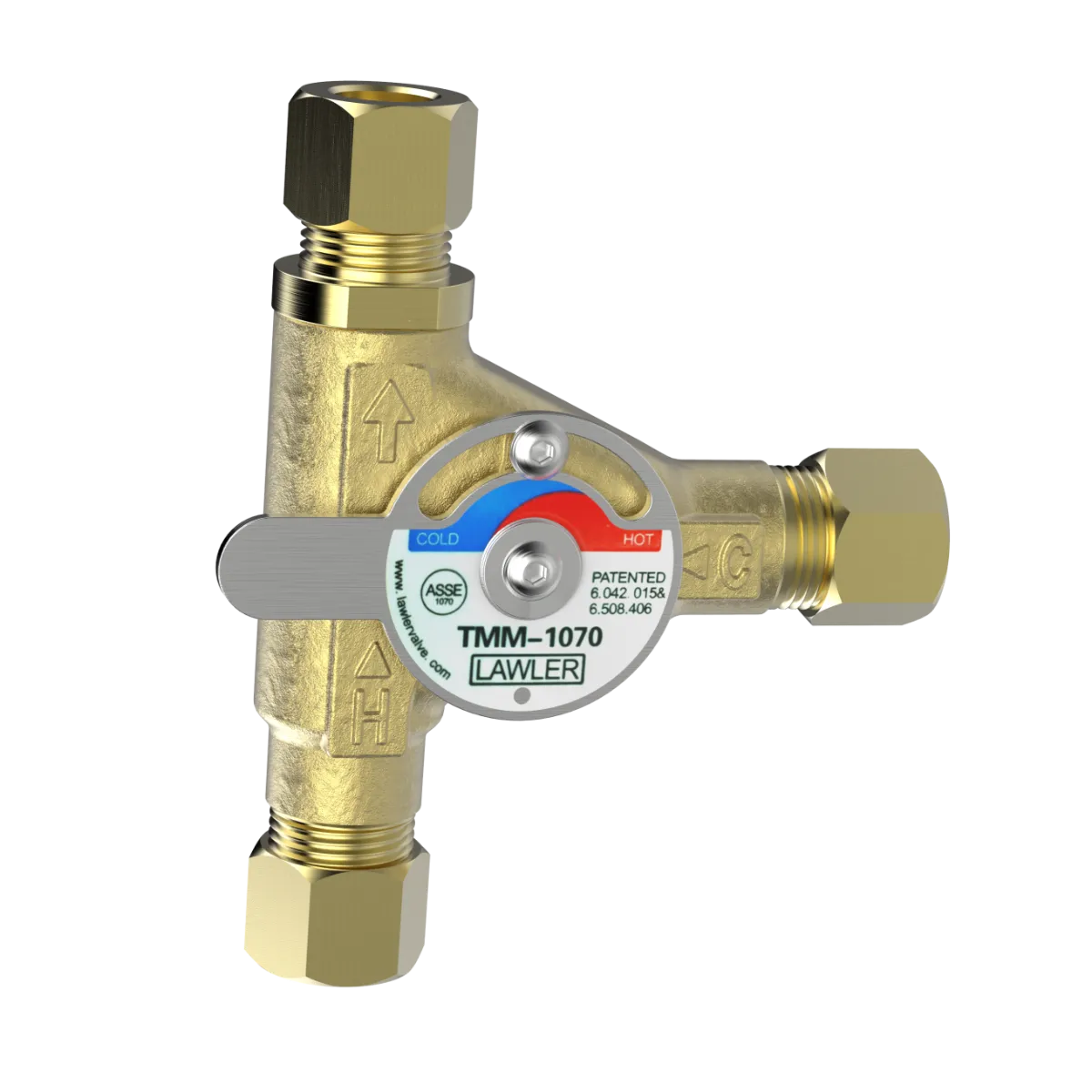

Lawler’s TMM-1070® thermostatic mechanical mixing valve provides a basic solution for mixing hot and cold water at the point-of-use and features a high temperature limit stop designed to shut down water flow above 120°F. This small Type T valve (3/8” compression fitting) is used for under-the-counter applications such as hand lavs, electronic, sensor, and metering faucets. Integral rubber duck-bill back-flow checks are included within inlets. Temperature adjustments are made by simply turning a dial; clockwise for lowering outlet temperature and counterclockwise for raising outlet temperature. For maximum safety, the valve cannot be adjusted above its shut-off temperature (120°F).

ENG# 87500

SPECIFICATIONS

Series

TMM1070

Model

TMM-1070

Configuration

Standard

Engineering Number

87500

Application

Point of Use

Certification/s

ASSE 1070, Lead Free

Connection Type

Compression

Inlet Connection Size

3/8"

Outlet Connection Size

3/8"

Min Flow

1/2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

1 GPM

Rated Flow at 45 PSI

2-1/10 GPM

Temperature Range

Full Cold to 115°F

Finish

Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing87500 – TMM-1070 Standard – Drawing – No Dimensions
AIA Specifications87500 – TMM-1070 Standard – TEXT – AIA Specification
Spec Books87500 – TMM-1070 Standard – Submital Datasheet
BIM Revit File87500 – TMM-1070 Standard – BIM
