TMM-1070T Standard
TMM-1070T Standard

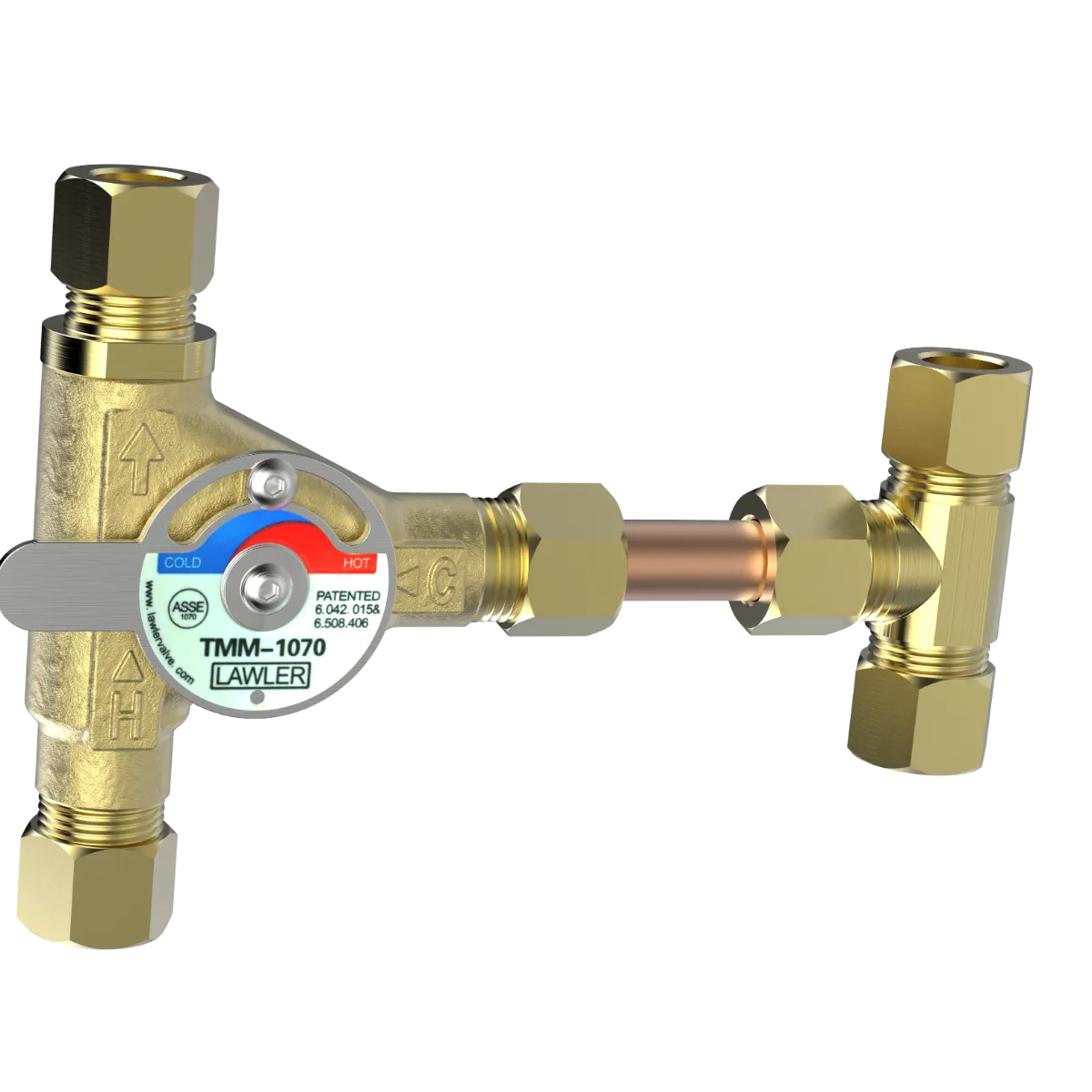

Lawler’s TMM-1070® thermostatic mechanical mixing valve provides a basic solution for mixing hot and cold water at the point-of-use and features a cold water compression tee as well as high temperature limit stop designed to shut down water flow above 120°F. This small Type T valve (3/8” compression fitting) is used for under-the-counter applications such as hand lavs, electronic, sensor, and metering faucets. Integral rubber duck-bill back-flow checks are included within inlets. Temperature adjustments are made by simply turning a dial; clockwise for lowering outlet temperature and counterclockwise for raising outlet temperature. For maximum safety, the valve cannot be adjusted above its shut-off temperature (120°F).
ENG# 87500
SPECIFICATIONS
| Series | TMM1070 |
|---|---|
| Model | TMM-1070T |
| Configuration | Standard |
| Engineering Number | 87500 |
| Application | Point of Use |
| Certification/s | ASSE 1070, Lead Free |
| Connection Type | Compression |
| Inlet Connection Size | 3/8" |
| Outlet Connection Size | 3/8" |
| Min Flow | 1/2 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 1 GPM |
| Rated Flow at 45 PSI | 2-1/10 GPM |
| Temperature Range | Full Cold to 115°F |
| Finish | Rough Brass |
