570-75 Standard
570-75 Standard

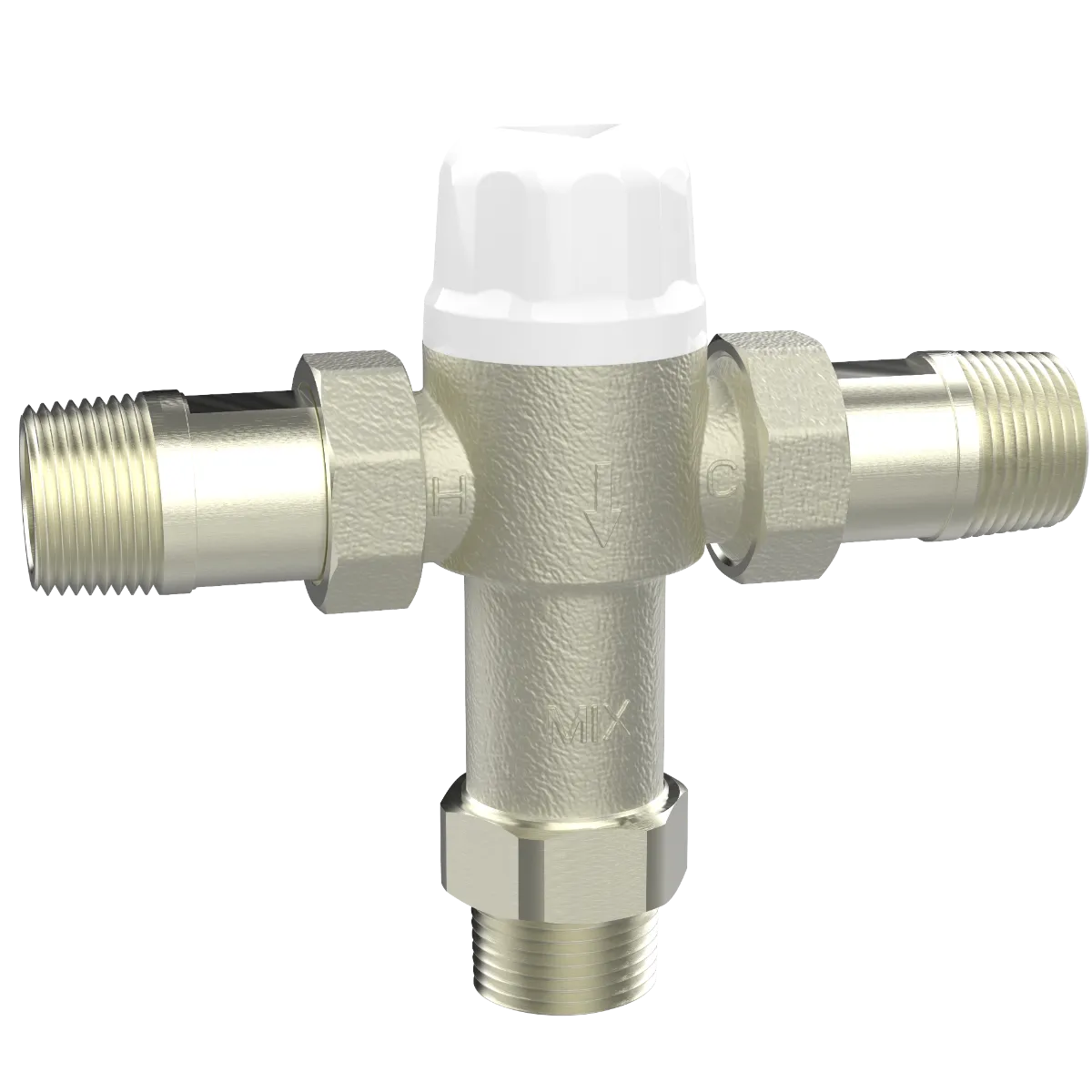

Lawler’s Model 570® technologically advanced under-the-counter valve delivers safe, tempered water at the point-of-use. Model 570® is easy to install, economically priced, and offers a range of temperature settings from full cold to 115°F. Model 570® can be installed with or without cabinets, is resistant to tampering, and protects against scalding and chilling.
ENG# 86822
Check out the 570-75 Standard today!
SPECIFICATIONS
| Series | 570 |
|---|---|
| Model | 570-75 |
| Configuration | Standard |
| Engineering Number | 86822 |
| Application | Point of Use |
| Certification/s | ASSE 1070 |
| Connection Type | NPT |
| Inlet Connection Size | 3/4" |
| Outlet Connection Size | 3/4" |
| Min Flow | 1/4 GPM |
| Min Flow with Recirculation | 1/4 GPM |
| Rated Flow at 10 PSI | 7 GPM |
| Rated Flow at 45 PSI | 11 GPM |
| Temperature Range | 95°F – 115°F |
| Finish | Chrome Plated |
PRODUCT DOWNLOADS
| Category | Title | Link | |
|---|---|---|---|
 | Spec Books | 86822 – 570-75 Standard – Submital Datasheet | |
 | Install and Maintenance Manual | 570-75 – Installation and Maintenance Manual | |
 | CAD Drawing | 86822 – 570-75 Standard – Drawing – No Dimensions | |
 | AIA Specifications | 86822 – 570-75 Standard – TEXT – AIA Specification | |
 | BIM Revit File | 86822 – 570-75 Standard – BIM |
